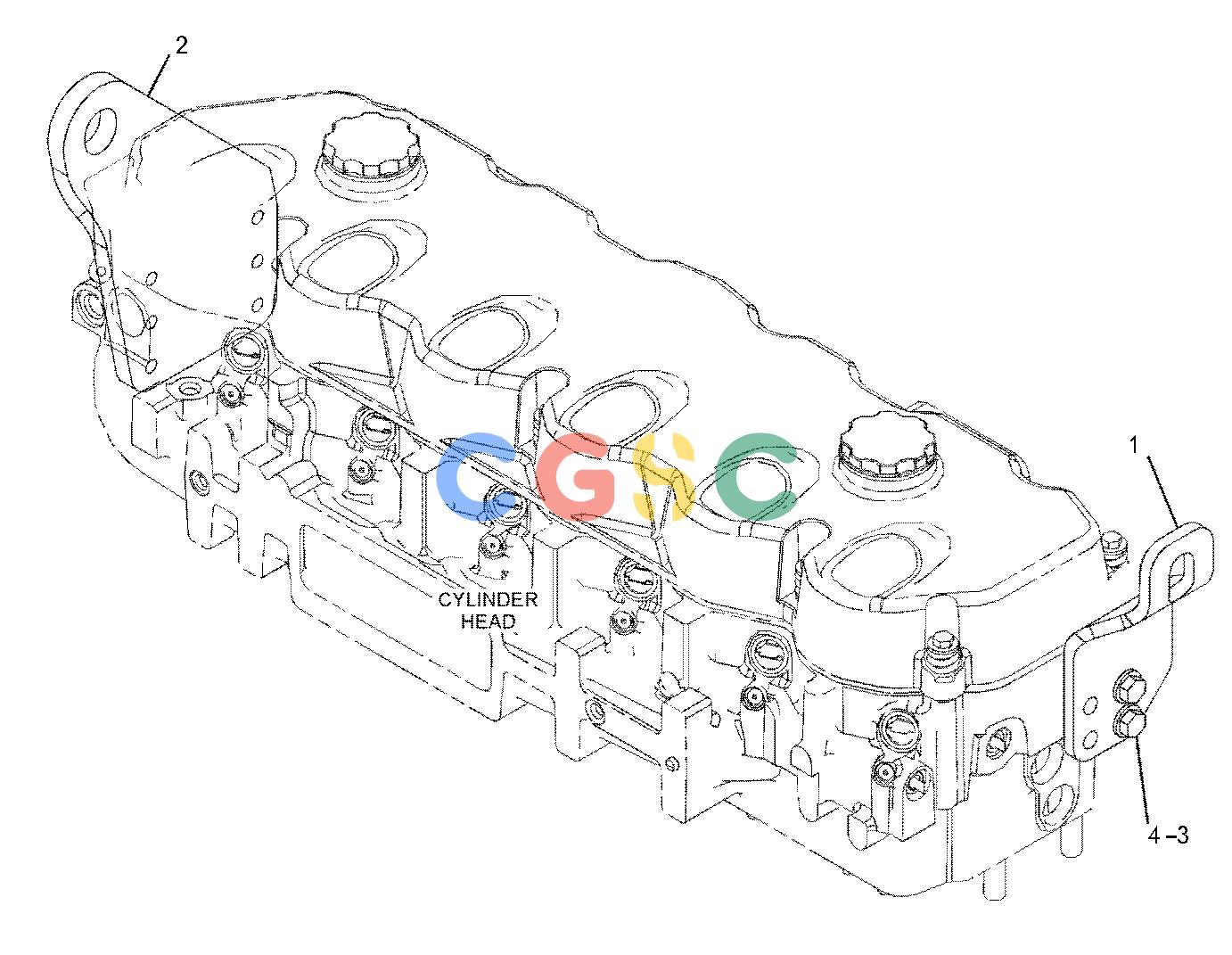

卡特零件查询（725C） 551-2047: KIT-ENGINE MOUNT
广数供应链运营团队, 14 02月, 2025，浏览：
858 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 7X-2552M | [2] | BOLT(M16X2X30-MM) | |
| | 7X-2554M | [1] | BOLT(M16X2X70-MM) | |
| | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| | 154-1578M | [10] | BOLT(M16X2X45-MM) | |
| | 378-2695M | [2] | BOLT(M20X2.5X70-MM) | |
| | 482-3555 | [6] | BOLT(M12X1.75X100-MM) | |
| | 545-5891 | [1] | BRACKET AS | |
| | 545-5892 | [1] | BRACKET AS | |
| | 292-4526 | [1] | PLATE | |
| | 294-4852 | [1] | PLATE | |
| | 548-1252 | [1] | PLATE-SUPPORT | |
| | 6U-0455 | [1] | STRAP | |
| | 546-4201 | [1] | SUPPORT AS | |
| | 9X-8257 | [3] | WASHER(17.5X30X3.5-MM THK) | |
| | 7X-0591 | [10] | WASHER-HARD(17X29X3-MM THK) | |
| | 8T-4121 | [1] | WASHER-HARD(11X21X2.5-MM THK) | |
| | 8T-4223 | [6] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | 8T-5439 | [2] | WASHER-HARD(21.5X45X6-MM THK) | |
| | M | | METRIC PART |
