神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-017 ) - TURBO-CHARGER GENERAL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
969 次

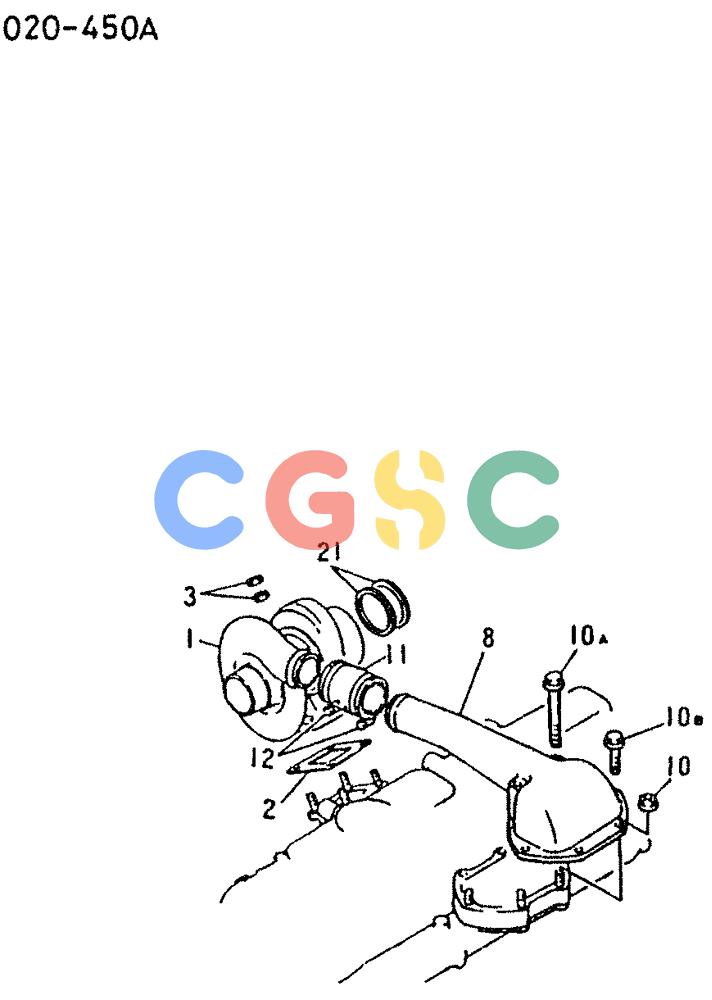

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME088256 | [1] | TURBOCHARGER | KOBTURBOCHARGER ASSY TD06 -17C Superseded by part number: VA4917902110 |
| 2. | VAME083528 | [1] | GASKET | KOBGASKET Superseded by part number: VAME083638 |
| 3. | VAMH004110 | [8] | NUT | KOBNUT 10 Superseded by part number: 134957A1 |
| 8. | VAME088252 | [1] | PIPE | KOBPIPE,AIR INLET |
| 10. | VAMF434104 | [3] | NUT | KOBNUT,FLANGE 8 |
| 10A. | VAMH000820 | [2] | BOLT | KOBBOLT,FLANGE 8X105 |
| 10B. | VAMF243663 | [1] | BOLT | KOBBOLT,W / WSR 8X60 |
| 11. | VAME053453 | [1] | HOSE | KOBHOSE,RUBBER L=65 |
| 12. | VAMH021321 | [2] | CLAMP | KOBCLAMP,BAND Superseded by part number: 134981A1 |
| 21. | VAME013710 | [2] | SEAL RETAINER | KOBRING,SEAL |
