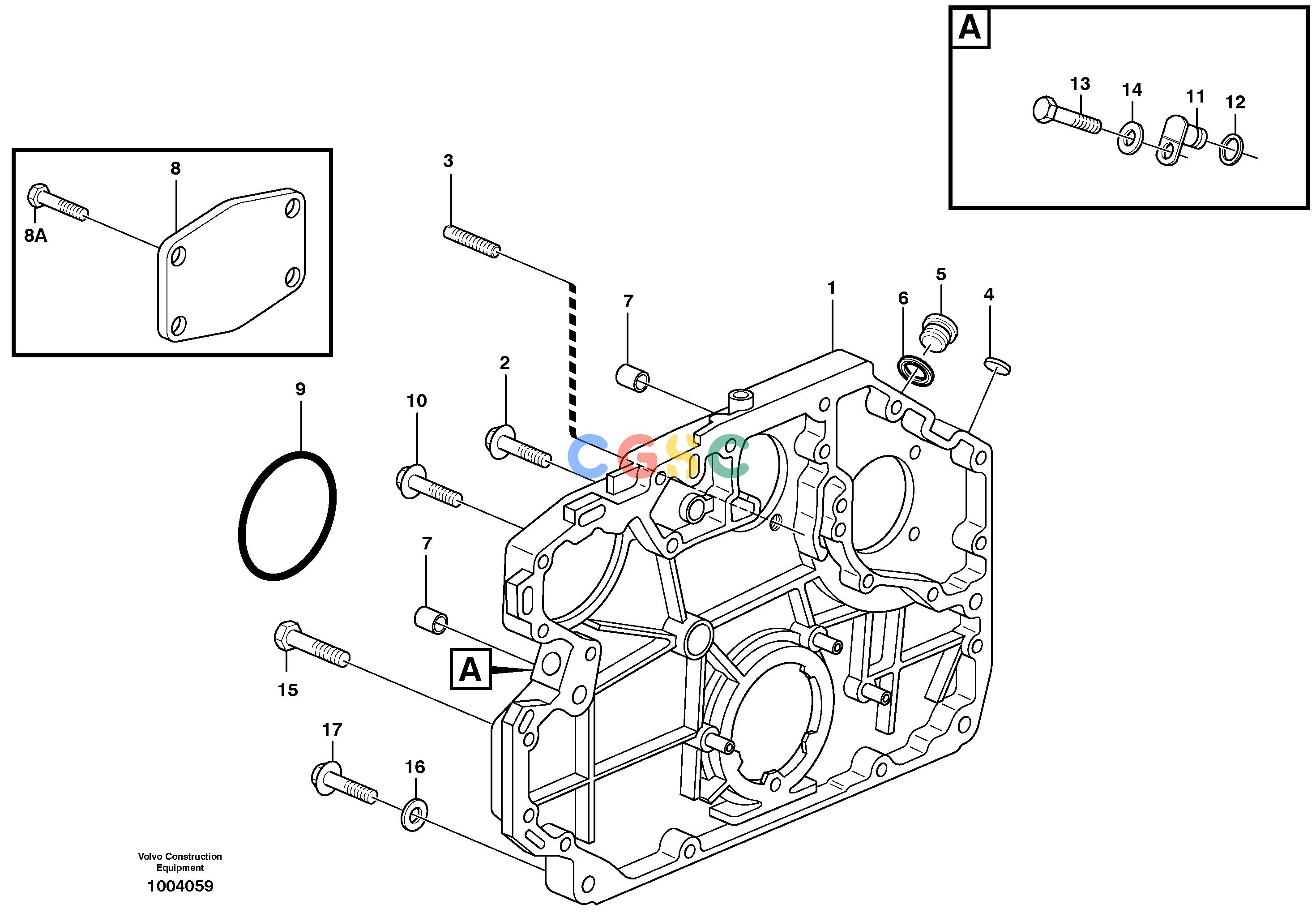

沃尔沃零件查询EC290B Timing gear casingSER NO INT 13562- EU & NA 80001-8277459 S/N -10972-8278906 S/N 10973-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
353 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20547372
|
[1] |
Casing
|
|
| 2. |
VOE20405709
|
[3] |
Screw
|
|
| 3. |
VOE20450795
|
[1] |
Set screw
|
|
| 4. |
VOE20405605
|
[1] |
Cover
|
|
| 5. |
VOE945065
|
[1] |
Plug
|
|
| 6. |
VOE13947621
|
[1] |
Plane gasket
|
|
| 7. |
VOE20405646
|
[2] |
Bushing
|
|
| 8. |
20450799
|
[1] |
Cover
|
|
| 8A. |
VOE20405709
|
[4] |
Screw
|
|
| 9. |
VOE20412359
|
[1] |
Sealing ring
|
|
| 10. |
VOE975108
|
[1] |
Flange screw
|
|
| 11. |
VOE20405553
|
[1] |
Cover
|
|
| 12. |
VOE20459904
|
[1] |
Sealing ring
|
|
| 13. |
VOE20405706
|
[1] |
Screw
|
|
| 14. |
VOE973494
|
[1] |
Washer
|
|
| 15. |
VOE20412324
|
[12] |
Screw
|
|
| 16. |
VOE13955900
|
[2] |
Washer
|
|
| 17. |
VOE20405653
|
[2] |
Screw
|
|
