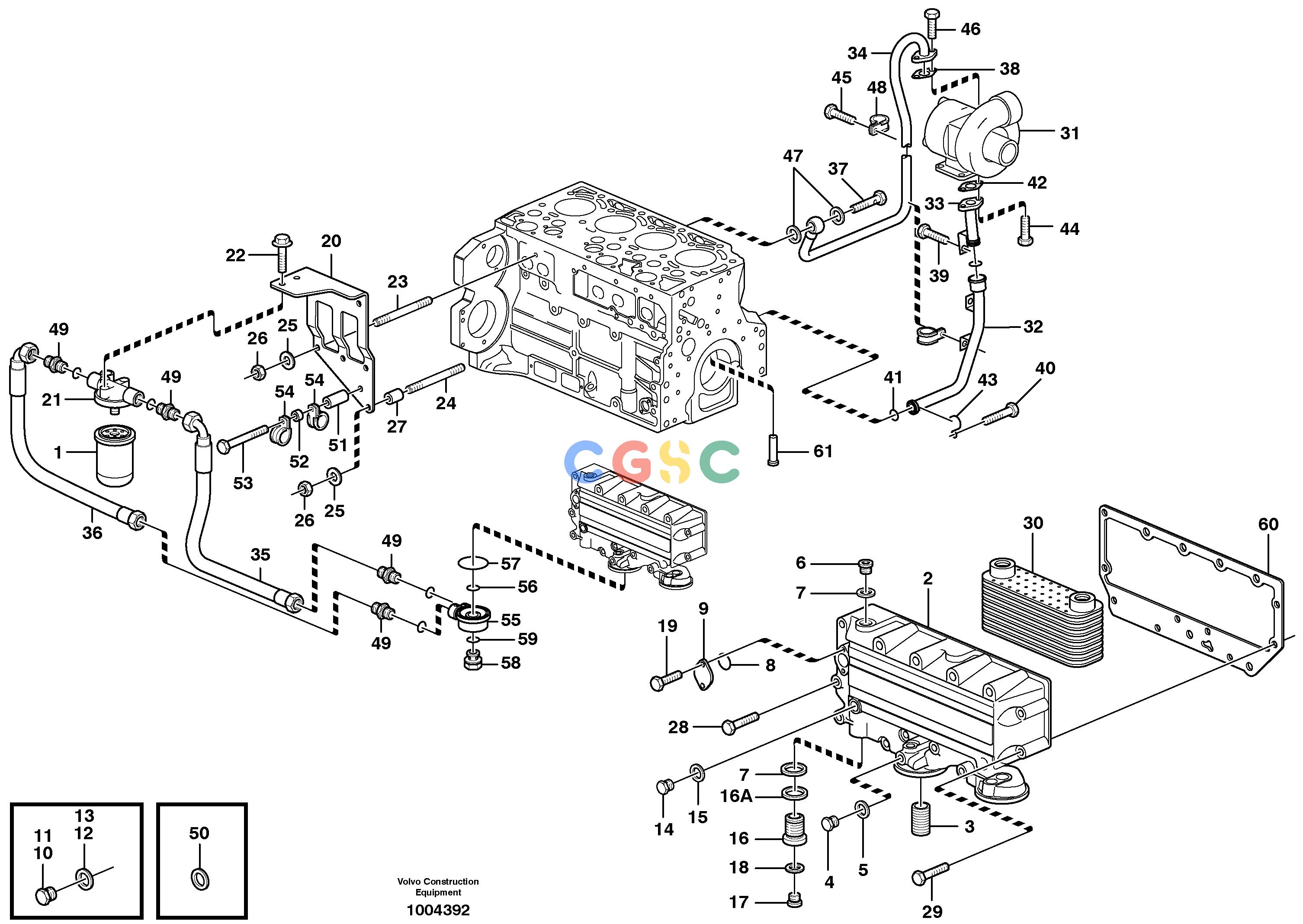

沃尔沃零件查询EC290B Lubricating oil systemSER NO INT 13562- EU & NA 80001-8277459 S/N -10972-8278906 S/N 10973-VOE8277459NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
203 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE17457469
|
[1] |
Oil filter
|
|
| 2. |
VOE20485258
|
[1] |
Housing
|
ENG - 01099356
|
| 2. |
VOE23124217
|
[1] |
Oil cooler
|
ENG 01099357 -
|
| 3. |
VOE20405758
|
[1] |
Bushing
|
|
| 4. |
VOE960628
|
[1] |
Plug
|
|
| 5. |
VOE13947281
|
[1] |
Gasket
|
|
| 6. |
VOE20459195
|
[2] |
Plug
|
|
| 7. |
VOE13947628
|
[4] |
Plane gasket
|
|
| 8. |
VOE20405599
|
[1] |
Sealing ring
|
|
| 9. |
VOE11700609
|
[1] |
Cover
|
|
| 10. |
VOE20450895
|
[1] |
Plug
|
|
| 11. |
VOE942352
|
[4] |
Plug
|
M26
|
| 12. |
VOE13947281
|
[2] |
Gasket
|
|
| 13. |
VOE13947628
|
[4] |
Plane gasket
|
|
| 14. |
VOE20450891
|
[1] |
Plug
|
|
| 15. |
VOE20450890
|
[1] |
Sealing ring
|
|
| 16. |
VOE20405752
|
[2] |
Screw
|
|
| 16A. |
VOE20405569
|
[2] |
Seal
|
|
| 17. |
VOE13966147
|
[2] |
Plug
|
|
| 18. |
VOE20405578
|
[2] |
Sealing ring
|
|
| 19. |
VOE997421
|
[2] |
Hexagon screw
|
|
| 20. |
VOE20450983
|
[1] |
Bracket
|
|
| 21. |
VOE20450984
|
[1] |
Filter housing
|
|
| 22. |
VOE975108
|
[2] |
Flange screw
|
|
| 23. |
VOE20450994
|
[3] |
Stud
|
|
| 24. |
VOE20546588
|
[1] |
Ball pin
|
|
| 25. |
VOE20405802
|
[4] |
Washer
|
|
| 26. |
VOE20405733
|
[5] |
Hexagon nut
|
|
| 27. |
VOE20450996
|
[1] |
Spacer
|
|
| 28. |
VOE996812
|
[10] |
Flange screw
|
|
| 29. |
VOE20405672
|
[3] |
Screw
|
|
| 30. |
VOE20715681
|
[1] |
Oil Cooler
|
|
| 31. |
|
|
Turbocharger
|
|
| 32. |
VOE20450976
|
[1] |
Return line
|
ENG - 01099467
|
| 32. |
VOE21146075
|
[1] |
Return line
|
ENG 01099468 -
|
| 33. |
VOE20450977
|
[1] |
Return line
|
ENG - 01099467
|
| 33. |
VOE21146146
|
[1] |
Return line
|
ENG 01099468 -
|
| 34. |
VOE20450974
|
[1] |
Oil line
|
ENG S/N -815867
|
| |
VOE20450974
|
|
Oil line
|
ENG S/N -815274
|
| |
VOE20450974
|
|
Oil line
|
ENG S/N -816138
|
| |
VOE20498068
|
|
Oil Line
|
ENG S/N 815868-
|
| |
VOE20498068
|
|
Oil Line
|
ENG S/N 815275-
|
| |
VOE20498068
|
|
Oil Line
|
ENG S/N 816139-
|
| 35. |
VOE20450981
|
[1] |
Hose
|
|
| 36. |
VOE20450982
|
[1] |
Hose
|
|
| 37. |
VOE60113509
|
[1] |
Hollow screw
|
ENG S/N -815867
|
| |
VOE60113509
|
|
Hollow screw
|
ENG S/N -815274
|
| |
VOE60113509
|
|
Hollow screw
|
ENG S/N -816138
|
| |
VOE60113509
|
|
Hollow screw
|
ENG S/N 815868-
|
| |
VOE60113509
|
|
Hollow screw
|
ENG S/N 815275-
|
| |
VOE60113509
|
|
Hollow screw
|
ENG S/N 816139-
|
| 38. |
VOE20405595
|
[1] |
Gasket
|
|
| 39. |
VOE20405898
|
[1] |
Screw
|
|
| 40. |
VOE20405792
|
[1] |
Screw
|
|
| 41. |
VOE20405822
|
[2] |
Sealing ring
|
|
| 42. |
VOE21242584
|
[1] |
Gasket
|
|
| 43. |
VOE21524802
|
[1] |
Hook
|
|
| 44. |
VOE20405885
|
[2] |
Screw
|
|
| 45. |
VOE20405792
|
[1] |
Screw
|
|
| 46. |
VOE20405885
|
[2] |
Screw
|
|
| 47. |
VOE13947621
|
[2] |
Plane gasket
|
|
| 48. |
VOE20450987
|
[1] |
Clamp
|
|
| 49. |
VOE20450999
|
[4] |
Nipple
|
|
| 50. |
VOE13947628
|
[10] |
Plane gasket
|
|
| 51. |
VOE20451000
|
[1] |
Bushing
|
|
| 52. |
VOE20450730
|
[1] |
Bushing
|
ENG SER NO -805729
|
| |
VOE20450730
|
[1] |
Bushing
|
ENG SER NO 805730-
|
| 53. |
VOE996812
|
[1] |
Flange screw
|
|
| 54. |
VOE20451002
|
[2] |
Clamp
|
|
| 55. |
VOE20864632
|
[1] |
Adapter
|
|
| 56. |
VOE20405578
|
[1] |
Sealing ring
|
|
| 57. |
VOE20450992
|
[1] |
Sealing ring
|
|
| 58. |
VOE22276683
|
[1] |
Hollow Screw
|
|
| 59. |
VOE20450993
|
[1] |
Sealing ring
|
|
| 60. |
VOE20405747
|
[1] |
Gasket
|
|
| 61. |
VOE20405561
|
[1] |
Piston
|
|
