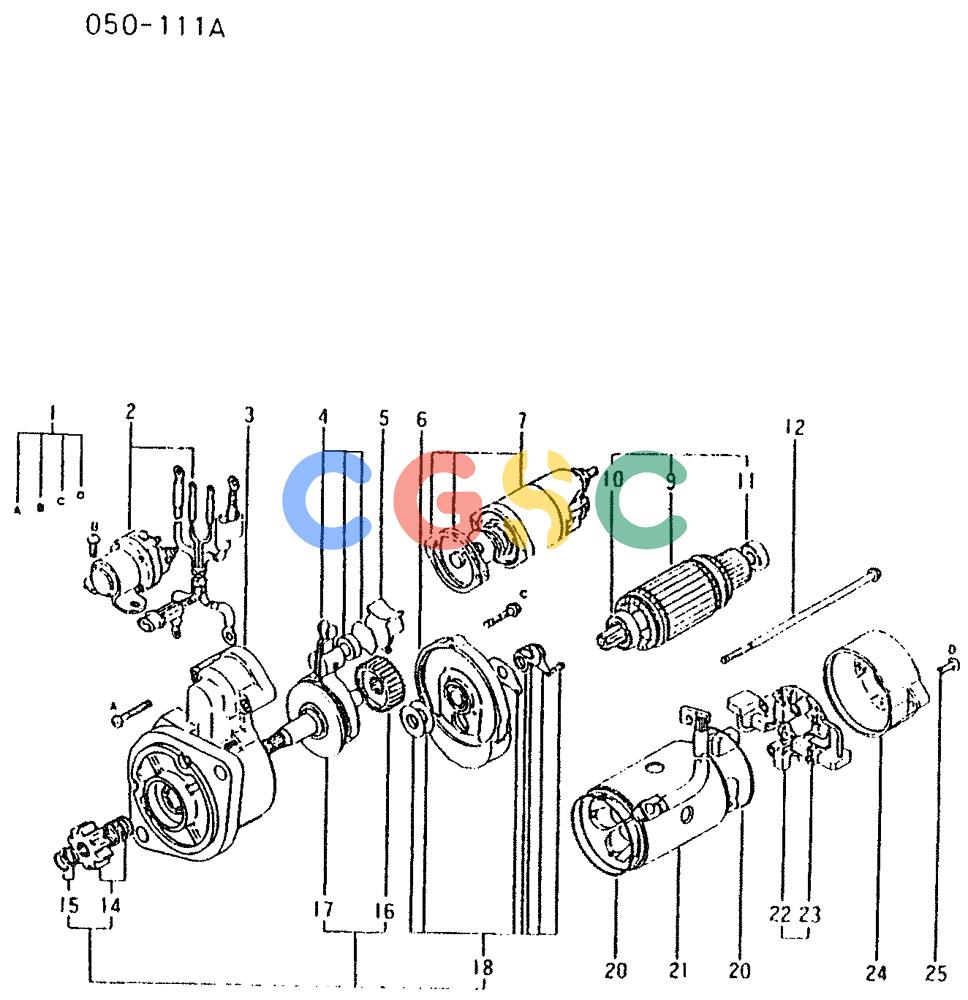

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (04-002) - STARTER (INNER PARTS), P/N ME037507 Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
463 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-25. | VAME087507 | [1] | STARTER MOTOR | KOBSTARTER ASSY 24V-5KW Superseded by part number: VAME087589 |
| 1. | VAME700860 | [1] | SET SCREW SCREW SET | SET SCREW SCREW SET |
| 2. | VAME700895 | [1] | SWITCH | KOBSWITCH ASSY Superseded by part number: VAU001T07077 |
| 3. | VAME700851 | [1] | BRACKET BRACKET ASSY.FR | BRACKET BRACKET ASSY.FR |
| 4. | VAME700234 | [1] | LEVER | KOBLEVER ASSY Superseded by part number: VAM863C05672 |
| 5. | VAME700033 | [1] | PACKING PACKING | PACKING PACKING |
| 6. | VAME700852 | [1] | BRACKET ASSY.CTR | |
| 7. | VAME700853 | [1] | SWITCH | KOBSWITCH ASSY Superseded by part number: VAM371X21071 |
| 9-11. | VAME700854 | [1] | ARMATURE | KOBARMATURE ASSY Superseded by part number: VAM106X40871 |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONARMATURE |
| 10. | VAME700117 | [1] | BEARING | KOBBEARING,CTR |
| 11. | VAME700118 | [1] | BALL BEARING | KOBBEARING,RE |
| 12. | VAME700036 | [1] | BOLT | KOBBOLT SET Superseded by part number: VAM901X01771 |
| 14-10. | VAME700855 | [1] | SHAFT | KOBCLUTCH SET SHAFT ASSY |
| 14-15. | VAME700856 | [1] | SET OF PINIONS | KOBPINION SET |
| 14. | NSS | [1] | NOT SOLD SEPARAT | CONPINION |
| 15. | VAME700124 | [1] | STOP | KOBSTOPPER SET Superseded by part number: VAM385X03771 |
| 16-17. | VAME700120 | [1] | GEAR SET | KOBGEAR SET |
| 16. | VAME700122 | [1] | GEAR GEAR | GEAR GEAR |
| 17. | VAME700121 | [1] | SHAFT | KOBPINION SHAFT ASSY |
| 18. | VAME700045 | [1] | COVER SET COVER SET | COVER SET COVER SET |
| 20. | VAME700130 | [2] | PACKING | KOBPACKING |
| 21. | VAME700896 | [1] | YOKE | KOBYOKE ASSY |
| 22-23. | VAME700858 | [1] | HOLDER, INJECTOR NOZ | KOBBRUSH HOLDER ASSY Superseded by part number: VAM649T02172 |
| 22. | NSS | [1] | NOT SOLD SEPARAT | CONHOLDER,BRUSH |
| 23. | VAMD611025 | [4] | SPRING,BRUSH | |
| 24. | VAME700129 | [1] | U-BRACKET | KOBBRACKET,RE Superseded by part number: VAM644B10601 |
| 25. | VAME700026 | [2] | SEAL RETAINER | KOBRING,RUBBER Superseded by part number: 135064A1 |
