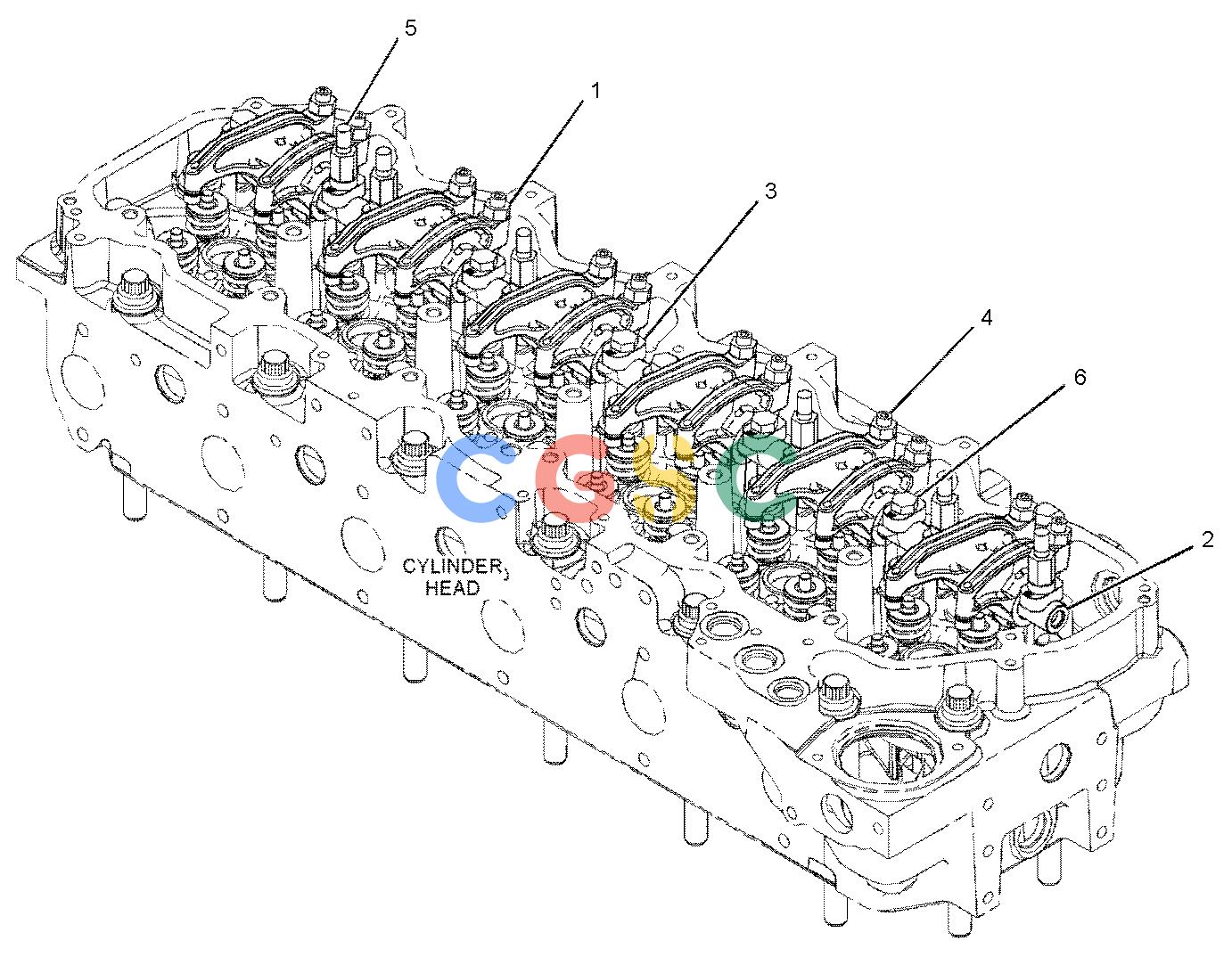

卡特零件查询（725C） 347-8760: VALVE MECHANISM GP
广数供应链运营团队, 14 02月, 2025，浏览：
444 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 263-0033Y | [6] | ROCKER ARM GP | |
| 2. | 274-5873 | [1] | SHAFT AS-ROCKER ARM | |
| | 0L-1026 | [2] | PLUG-CUP | |
| 3. | 276-5754 | [12] | WASHER | |
| 4. | 347-8782 | [6] | ROCKER ARM GP | |
| | | | (EACH INCLUDES) |
| | 2Y-5829M | [1] | NUT(M10X1.5-THD) | |
| | 260-7524M | [1] | SCREW-VALVE ADJUSTMENT(M10X1.5-THD) | |
| | 347-8748 | [1] | ROCKER ARM AS(EXHAUST) | |
| 5. | 323-3738 | [6] | STUD | |
| 6. | 6V-5843M | [6] | BOLT(M10X1.5X45-MM) | |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
