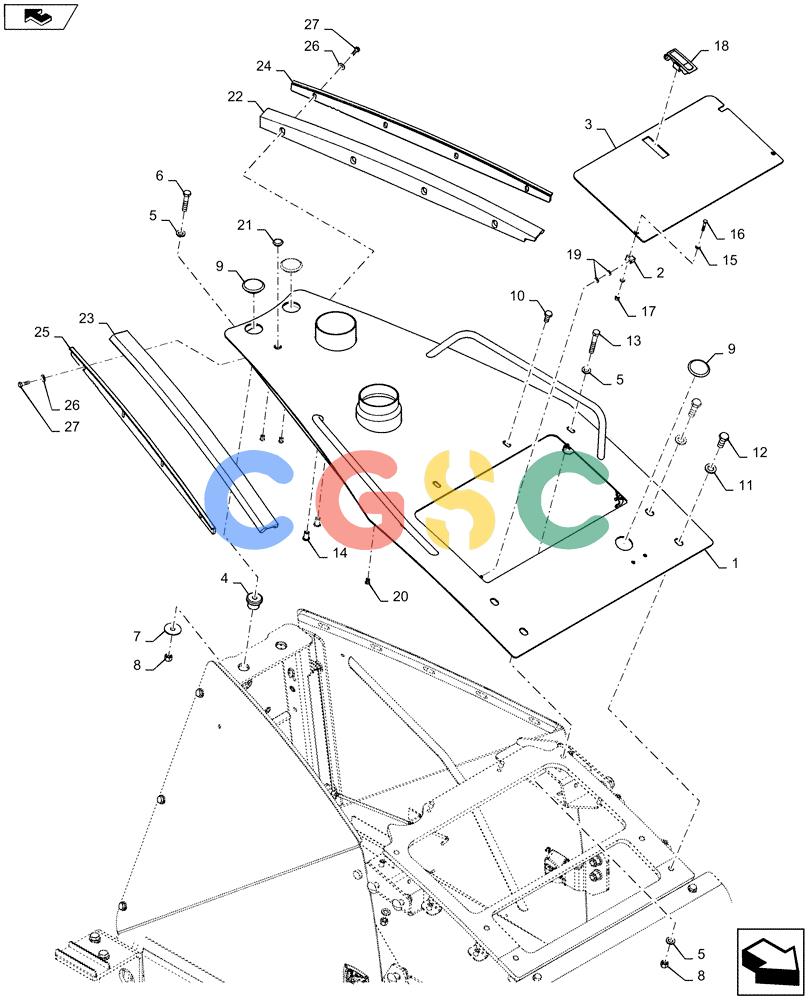

纽荷兰零件查询(D150C XLT) - CRAWLER DOZER - TIER 4A (10/13-) (90.100.AU[01]) - TOP COVER, HOOD New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
990 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 47534807 | [1] | PLATE | BUR |
| 2. | 87440322 | [2] | HINGE | BUR |
| 3. | 47545220 | [1] | ACCESS COVER | BUR |
| 4. | R29799 | [2] | SHOCK ABSORBER | CAS |
| 5. | 87655043 | [8] | WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM | BUR |
| 6. | 43263 | [2] | BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9 | BAS |
| 7. | R40262 | [2] | WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk | CAS |
| 8. | 87497918 | [4] | NUT | BRR |
| 9. | 14508287 | [3] | PLUG | LEC |
| 10. | 398792 | [2] | SCREW,Hex, M12 x 25mm, Cl 10.9 | WIN |
| 11. | 87655044 | [4] | SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM | BUR |
| 12. | 86529976 | [2] | BOLT,Hex, M16 x 35mm, Cl 10.9 | FAR |
| 13. | 87648725 | [2] | BOLT,Hex, M12 x 75mm, Cl 10.9 | SM |
| 14. | 85825181 | [3] | INSERT | IMO |
| 15. | 87655041 | [4] | SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk | BUR |
| 16. | 86977789 | [2] | BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8 | ZED |
| 17. | 393392 | [2] | LOCK NUT,M6 x 1.0, Cl 8 | WIN Superseded by part number: V43393 |
| 18. | 356924A3 | [1] | LATCH | CAS |
| 19. | 86588450 | [4] | WASHER,6.6mm ID x 12mm OD x 1.6mm Thk | ZED |
| 20. | 87328598 | [5] | INSERT | BHB |
| 21. | 14507687 | [1] | PLUG,20mm ID | LEC |
| 22. | 47546667 | [1] | SEAL | BUR |
| 23. | 47546668 | [1] | SEAL | BUR |
| 24. | 47546671 | [1] | CLAMP | BUR |
| 25. | 47546670 | [1] | CLAMP | BUR |
| 26. | 86625263 | [8] | WASHER,9mm ID x 20mm OD x 1.6mm Thk | ZED |
| 27. | 87698794 | [8] | BOLT,Prevailing Torque, M8 x 1.5 x 25.00mm, Cl 8.8, ZND | GI |
