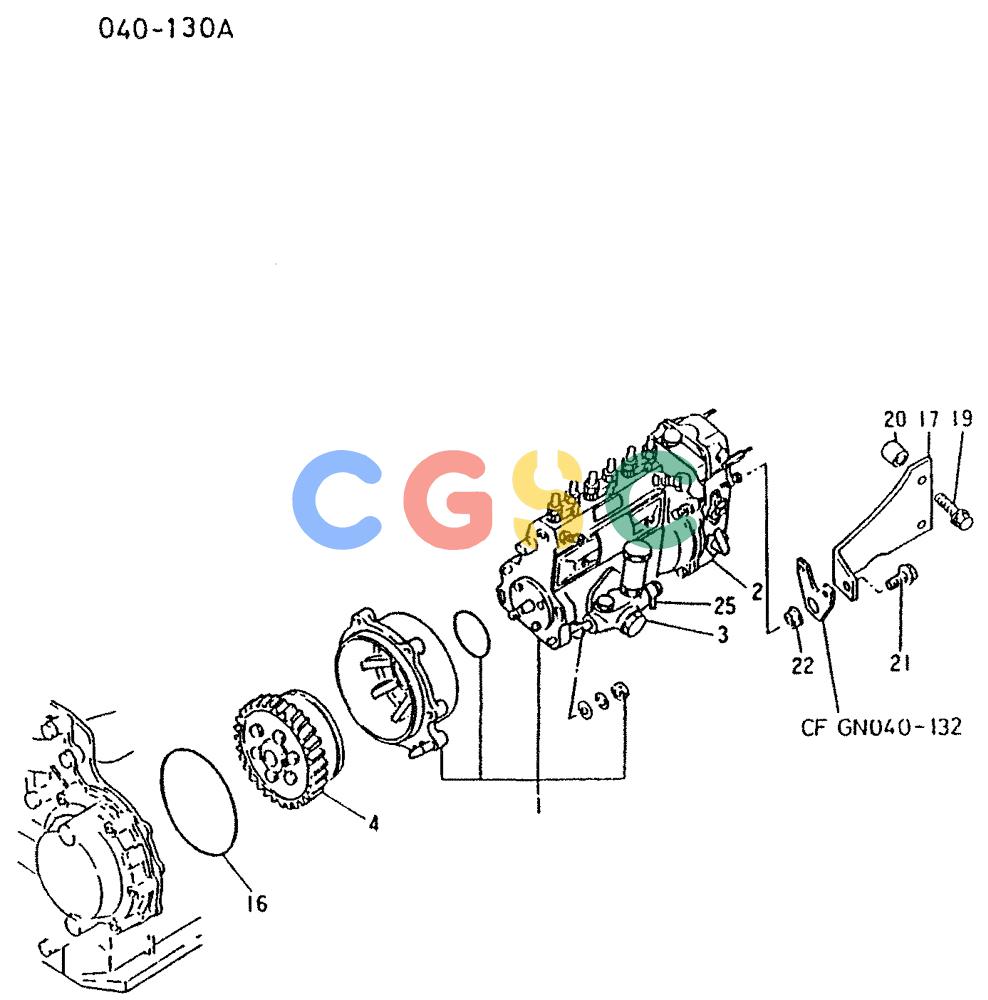

神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (03-001) - FUEL INJECTION PUMP GENERAL Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
508 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-4. | VAME088300 | [1] | INJECTION PUMP GENERAL ASSY, FOR F4 ONLY | |
| 1-4. | VAME088322 | [1] | FUEL INJECTION PUMP | KOBINJECTION PUMP GENERAL ASSY, FOR M7 ONLY |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONINJECTION PUMP ASSY A TYPE |
| 2. | VAME723830 | [1] | GOVERNOR ASSY, RSV TYPE,FOR F4 ONLY | |
| 2. | VAME723423 | [1] | GOVERNOR GOVERNOR ASSY, RSV TYPE FOR M7 ONLY | GOVERNOR GOVERNOR ASSY, RSV TYPE FOR M7 ONLY |
| 3. | VAME717104 | [1] | PUMP | KOBFUEL FEED PUMP ASSY |
| 4. | VAME723275 | [1] | TIMER | KOBAUTOMATIC TIMER ASSY,FOR F4 ONLY |
| 16. | VAMF520423 | [1] | O-RING | KOBO-RING 135 Superseded by part number: VAF315313500 |
| 17. | VAME088152 | [1] | U-BRACKET | KOBBRACKET,I/P A Superseded by part number: VAME088445 |
| 19. | VAMH000711 | [2] | SCREW | KOBBOLT,FLANGE 10X40 Superseded by part number: 135146A1 |
| 20. | VA3127516500 | [2] | SPACER | KOBSPACER |
| 21. | VAMF140260 | [1] | BOLT | KOBBOLT.FLANGE 10X25 |
| 22. | VAMF434105 | [1] | NUT | KOBNUT,FLANGE 10 |
| 25. | VAMH037116 | [1] | FLEXIBLE JOINT | KOBJOINT,SWIVEL |
