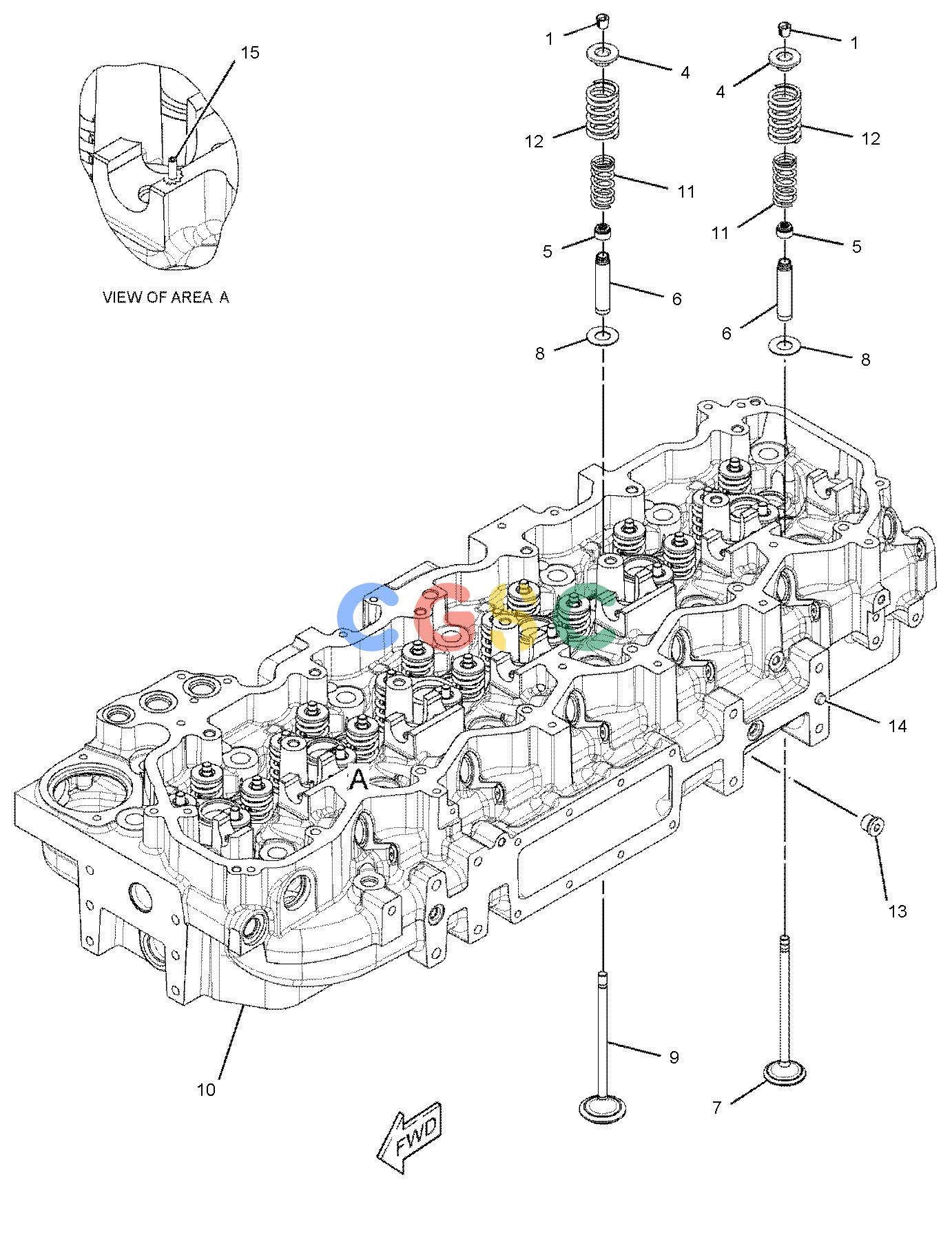

卡特零件查询（725C） 346-6388: CYLINDER HEAD GP
广数供应链运营团队, 14 02月, 2025，浏览：
333 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1W-2715 | [48] | LOCK-RETAINER | |
| 4. | 241-8384 | [24] | RETAINER | |
| 5. | 312-8619 | [24] | SEAL | |
| 6. | 255-8665 | [24] | GUIDE-VALVE | |
| 7. | 490-1728 | [12] | VALVE-EXHAUST | |
| 8. | 255-8679 | [24] | WASHER-VALVE SPRING | |
| 9. | 490-1729 | [12] | VALVE-INLET | |
| 10. | Y | [1] | CYLINDER HEAD AS |
| 11. | 349-5303 | [24] | SPRING-VALVE(INNER) | |
| 12. | 349-5307 | [24] | SPRING-VALVE(OUTER) | |
| 13. | 389-3708 | [1] | PLUG AS | |
| | 360-3679 | [1] | PLUG-CONNECTOR(9/16-18-THD) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 14. | 2A-3746 | [1] | PLUG-CUP | |
| 15. | 7Y-5272 | [1] | PIN-SPRING | |
| | Y | | SEPARATE ILLUSTRATION |
