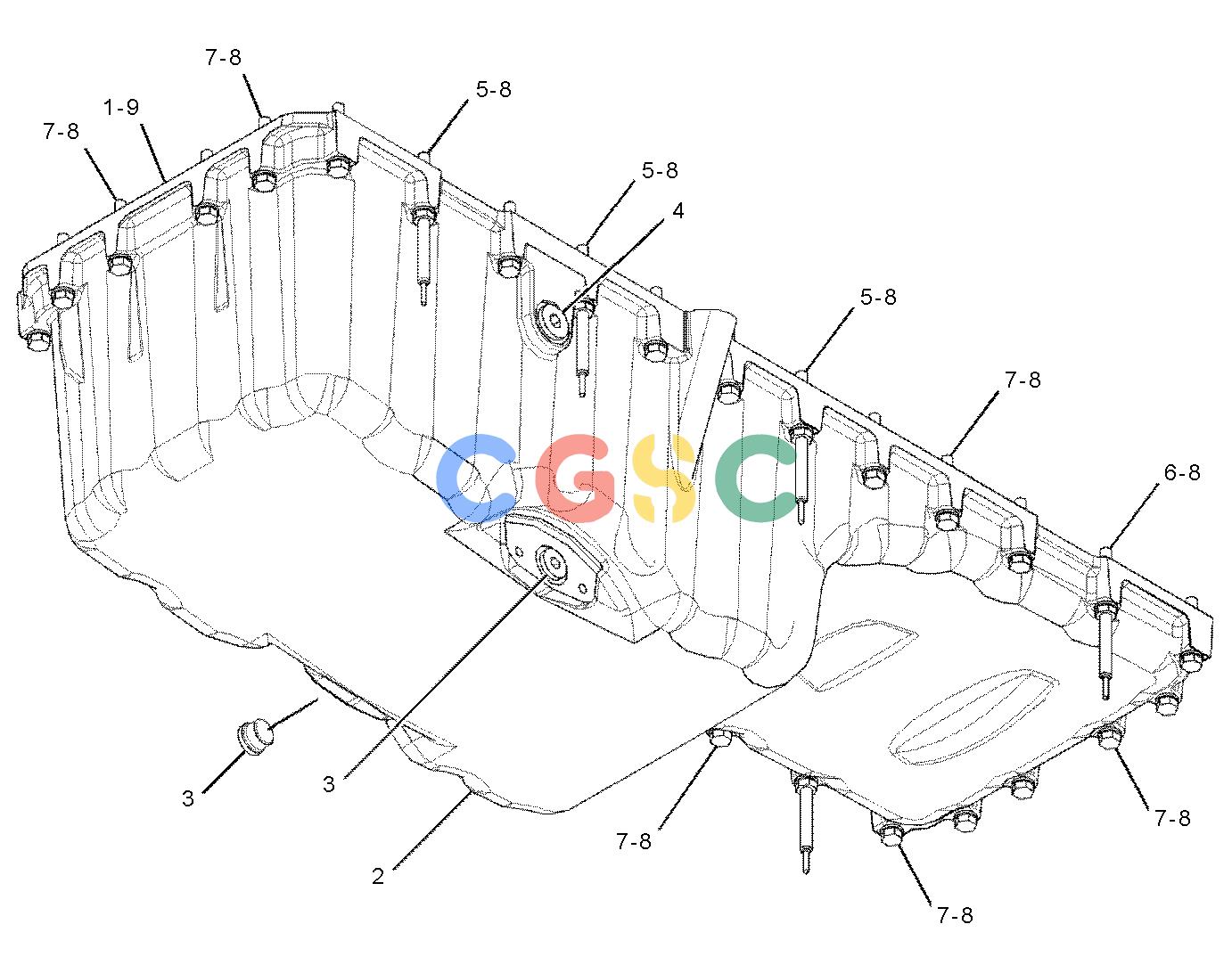

卡特零件查询（725C） 381-6727: PAN GP-OIL
广数供应链运营团队, 14 02月, 2025，浏览：
451 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 190-6114 | [1] | GASKET-OIL PAN(ENGINE) | |
| 2. | 367-8000 | [1] | PAN-OIL | |
| 3. | 307-2673 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 9S-8005 | [1] | PLUG(3/4-16-THD) | |
| | 238-5080 | [1] | SEAL-O-RING | |
| 4. | 309-5131 | [1] | PLUG AS | |
| | 9S-8006 | [1] | PLUG(7/8-14-THD) | |
| | 238-5081 | [1] | SEAL-O-RING | |
| 5. | 329-3706 | [6] | STUD(M8X1.25X42.25-MM, 22.00-MM) | |
| 6. | 346-1581 | [2] | STUD | |
| 7. | 6V-3918M | [24] | BOLT(M8X1.25X50-MM) | |
| 8. | 9M-1974 | [32] | WASHER-HARD(8.8X16X2-MM THK) | |
| 9. | 4C-9612B | | SEALANT-SILICONE | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
