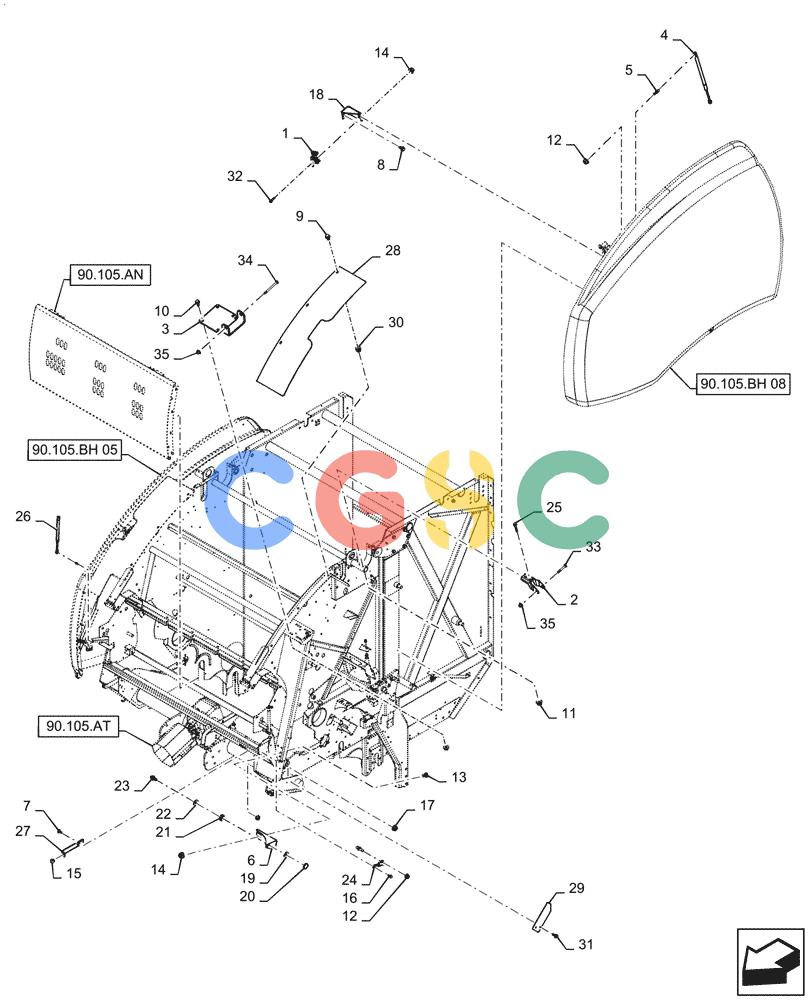

| 1. |
87688487
|
[1] |
LATCH ASSY.
|
GI
Door, LH
|
| 2. |
48058532
|
[1] |
|
HINGE
|
| 3. |
48058534
|
[1] |
|
BRACKET
|
| 4. |
47387253
|
[2] |
GAS STRUT
|
NH
|
| 5. |
86628347
|
[5] |
STUD,M8 x 36.5mm OAL, 10mm OD Ball
|
NH
|
| 6. |
47561227
|
[1] |
BRACKET
|
NH
LH
|
| 7. |
86633356
|
[1] |
CARRIAGE BOLT,M10 x 34.8mm, Cl 8.8
|
ZED
|
| 8. |
86050286
|
[2] |
FLANGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 9. |
86511841
|
[3] |
BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8
|
NH
|
| 10. |
9804261
|
[4] |
BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd
|
NH
|
| 11. |
9804278
|
[8] |
FLANGE NUT,M10 x 1.5, Cl 8
|
NH
|
| 12. |
86619801
|
[5] |
FLANGE NUT,M8 x 1.25, Cl 8
|
PA
Superseded by part number: 87681210
|
| 13. |
86507486
|
[4] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 14. |
9804277
|
[7] |
FLANGE NUT,Hex, M8 x 1.25, Cl 8
|
NH
Superseded by part number: 86505868
|
| 15. |
128104
|
[1] |
BUMPER
|
NH
|
| 16. |
9804258
|
[1] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
LH
|
| 17. |
9804276
|
[2] |
FLANGE NUT,Hex, M6 x 1, Cl 8
|
NH
|
| 18. |
47419163
|
[1] |
BRACKET
|
PLO
|
| 19. |
86639313
|
[1] |
WASHER,9mm ID x 24mm OD x 2mm Thk
|
RAC
|
| 20. |
84517258
|
[1] |
MAGNET
|
ZED
Superseded by part number: 84579586
|
| 21. |
13605715
|
[1] |
SPACER,9mm ID x 18mm OD x 5mm L
|
JES
|
| 22. |
322355
|
[1] |
BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk
|
NH
LH
|
| 23. |
10445821
|
[1] |
SCREW,Hex, M4 x 8mm, Cl 8.8, Full Thd
|
JES
LH Superseded by part number: 2975135
|
| 24. |
47544354
|
[1] |
BRACKET
|
NH
|
| 25. |
86011090
|
[2] |
BOLT,Hex Flng, M10 x 70mm, Cl 8.8
|
NH
|
| 26. |
47532837
|
[2] |
GAS STRUT
|
NH
|
| 27. |
47483296
|
[1] |
BRACKET
|
NH
|
| 28. |
47482860
|
[1] |
SHIELD
|
NH
|
| 29. |
47390972
|
[1] |
PLATE
|
NH
|
| 30. |
86610200
|
[3] |
THREADED INSERT,M8 x 1.25
|
NH
|
| 31. |
9804255
|
[2] |
BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8
|
NH
|
| 32. |
87695419
|
[1] |
FLANGE BOLT,M8 x 43.1mm, Cl 10.9
|
GI
Superseded by part number: 84465299
|
| 33. |
87996
|
[1] |
BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5
|
WIN
|
| 34. |
88576
|
[1] |
BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5
|
NH
|
| 35. |
86521610
|
[2] |
FLANGE NUT,Flg, 1/2"-13
|
NH
|
