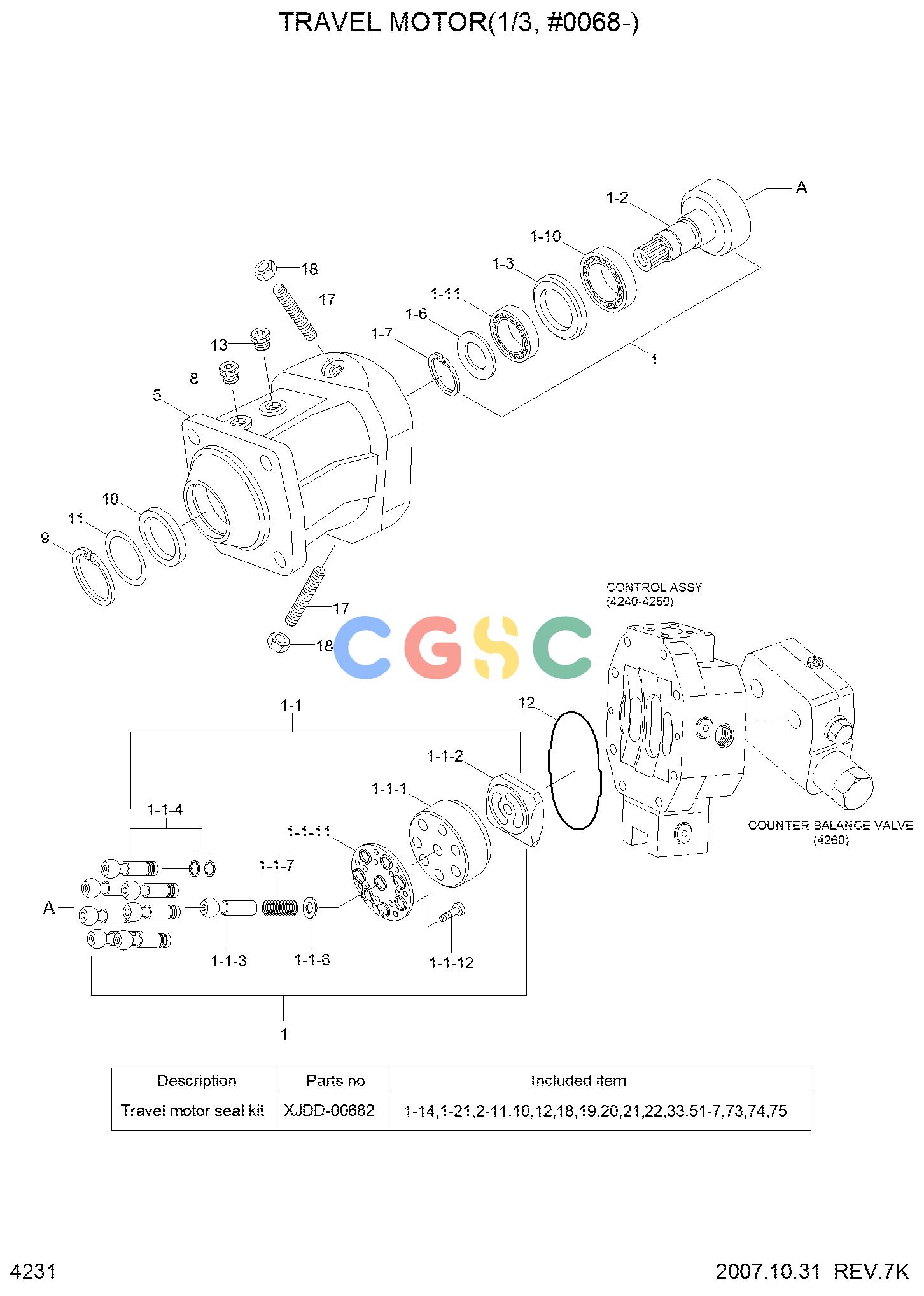

现代零件查询R55W-7 TRAVEL MOTOR(1/3, #0068-)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
245 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31M5-00032
|
[1] |
TRAVEL MOTOR
|
|
| . |
31M5-00033
|
[1] |
TRAVEL MOTOR
|
|
| 1. |
XJDD-00545
|
[1] |
ROTARY GROUP
|
|
| 1-1. |
XJDD-00552
|
[1] |
ROTARY GROUP
|
|
| 1-1-1. |
XJDD-00566
|
[1] |
CYLINDER
|
|
| 1-1-2. |
XJDD-00567
|
[1] |
CONTROL LENS
|
|
| 1-1-3. |
XJDD-00568
|
[1] |
PIN-CENTER
|
|
| 1-1-4. |
XJDD-00569
|
[7] |
PISTON
|
|
| 1-1-6. |
XJDD-00570
|
[1] |
SHIM(3.5T)-ADJUSTMENT
|
|
| 1-1-6. |
XJDD-00611
|
[1] |
SHIM(3.6T)-ADJUSTMENT
|
|
| 1-1-6. |
XJDD-00614
|
[1] |
SHIM(3.7T)-ADJUSTMENT
|
|
| 1-1-6. |
XJDD-00615
|
[1] |
SHIM(3.8T)-ADJUSTMENT
|
|
| 1-1-6. |
XJDD-00616
|
[1] |
SHIM(3.9T)-ADJUSTMENT
|
|
| 1-1-6. |
XJDD-00617
|
[1] |
SHIM(4.0T)-ADJUSTMENT
|
|
| 1-1-7. |
XJDD-00576
|
[1] |
SPRING-PRESSURE
|
|
| 1-1-11. |
XJDD-00577
|
[1] |
PLATE-RETAINING
|
|
| 1-1-12. |
XJDD-00674
|
[1] |
SCREW-PAN HEAD
|
|
| 1-2. |
XJDD-00553
|
[14] |
SHAFT-DRIVE
|
|
| 1-3. |
XJDD-00554
|
[1] |
SHlM
|
|
| 1-6. |
XJDD-00558
|
[1] |
PLATE-BACK UP
|
|
| 1-6. |
XJDD-00560
|
[1] |
PLATE-BACK UP
|
|
| 1-6. |
XJDD-00561
|
[1] |
PLATE-BACK UP
|
|
| 1-6. |
XJDD-00562
|
[1] |
PLATE-BACK UP
|
|
| 1-6. |
XJDD-00559
|
[1] |
PLATE-BACK UP
|
|
| 1-6. |
XJDD-00557
|
[1] |
PLATE-BACK UP
|
|
| 1-6. |
XJDD-00556
|
[1] |
PLATE-BACK UP
|
|
| 1-6. |
XJDD-00555
|
[1] |
PLATE-BACK UP
|
|
| 1-7. |
XJDD-00563
|
[1] |
RING-RETAINING
|
|
| 1-10. |
XJDD-00564
|
[1] |
BEARING-TAPERED ROL
|
|
| 1-11. |
XJDD-00565
|
[1] |
BEARlNG-TAPERED ROL
|
|
| 5. |
XJDD-00547
|
[1] |
HOUSING
|
|
| 8. |
XJDD-00210
|
[1] |
SCREW-LOCKING
|
|
| 9. |
XJDD-00548
|
[1] |
RING-RETAINING
|
|
| K10. |
XJDD-00549
|
[1] |
RING-SHAFT SEAL
|
|
| 11. |
XJDD-00550
|
[1] |
PLATE-BACK UP
|
|
| K12. |
XJDD-00551
|
[1] |
O-RING
|
|
| 13. |
XJDD-00210
|
[1] |
SCREW-LOCKING
|
|
| 17. |
XJDD-00211
|
[2] |
RING-RETAINING
|
|
| K18. |
XJDD-00120
|
[2] |
NUT-SEAL LOCK
|
|
| K. |
XJDD-00682
|
[1] |
SEAL KIT
|
|
