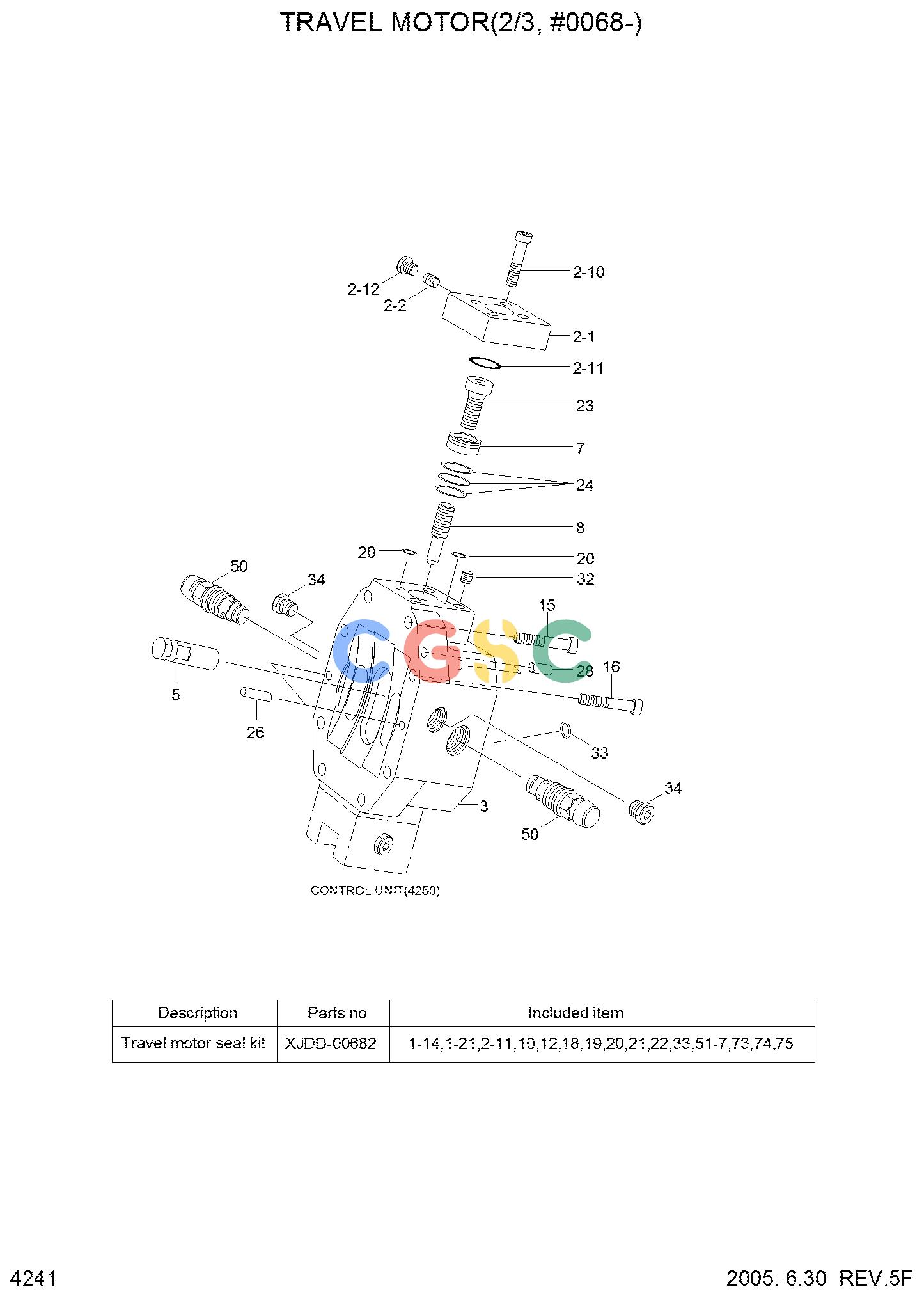

现代零件查询R55W-7 TRAVEL MOTOR(2/3, #0068-)EPC Hyundai
广数供应链运营团队, 14 02月, 2025，浏览：
540 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -1. |
XJDD-00546
|
[1] |
CONTROL
|
|
| 2. |
XJDD-00581
|
[1] |
COVER
|
|
| 2-1. |
XJDD-00586
|
[1] |
PIN-THREADED
|
|
| 2-2. |
XJDD-00601
|
[1] |
SCREW-THROTTLE
|
|
| 2-10. |
XJDD-00602
|
[4] |
SCREW-SOCKET HEAD
|
|
| K2-11. |
XJDD-00284
|
[1] |
O-RING
|
|
| 2-12. |
XJDD-00174
|
[1] |
SCREW-LOCKING
|
|
| 3. |
XJDD-00582
|
[1] |
PLATE-PORT
|
|
| 5. |
XJDD-00584
|
[1] |
TRUNNION-POSITIONING
|
|
| -11. |
XJDD-01419
|
[1] |
PISTON WITH PISTON RINGS
|
|
| 7. |
XJDD-00585
|
[1] |
PIST0N
|
|
| 24. |
XJDD-00589
|
[2] |
RING-SQUARE
|
|
| 8. |
XJDD-00586
|
[1] |
PIN-THREADED
|
|
| 15. |
XJDD-00587
|
[4] |
SCREW-SOCKET HEAD
|
|
| 16. |
XJDD-00672
|
[4] |
SCREW-SOCKET
|
|
| K20. |
XJDD-00258
|
[3] |
O-RING
|
|
| 23. |
XJDD-00260
|
[1] |
SCREW-SOCKET HEAD
|
|
| 24. |
XJDD-00589
|
[3] |
RING-SQUARE
|
|
| 26. |
XJDD-00262
|
[2] |
PIN-CYLINDER
|
|
| 28. |
XJDD-00178
|
[1] |
PIN-D/BREAK OFF
|
|
| 32. |
XJDD-00181
|
[1] |
PIN-D/BREAK OFF
|
|
| K33. |
XJDD-00287
|
[1] |
O-RING
|
|
| 34. |
XJDD-00210
|
[2] |
SCREW-LOCKING
|
|
| 50. |
XJDD-00591
|
[2] |
VALVE-RELIEF
|
|
| K. |
XJDD-00682
|
[1] |
SEAL KIT
|
|
