沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHElectrical SystemShut down system, Control PanelEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
790 次

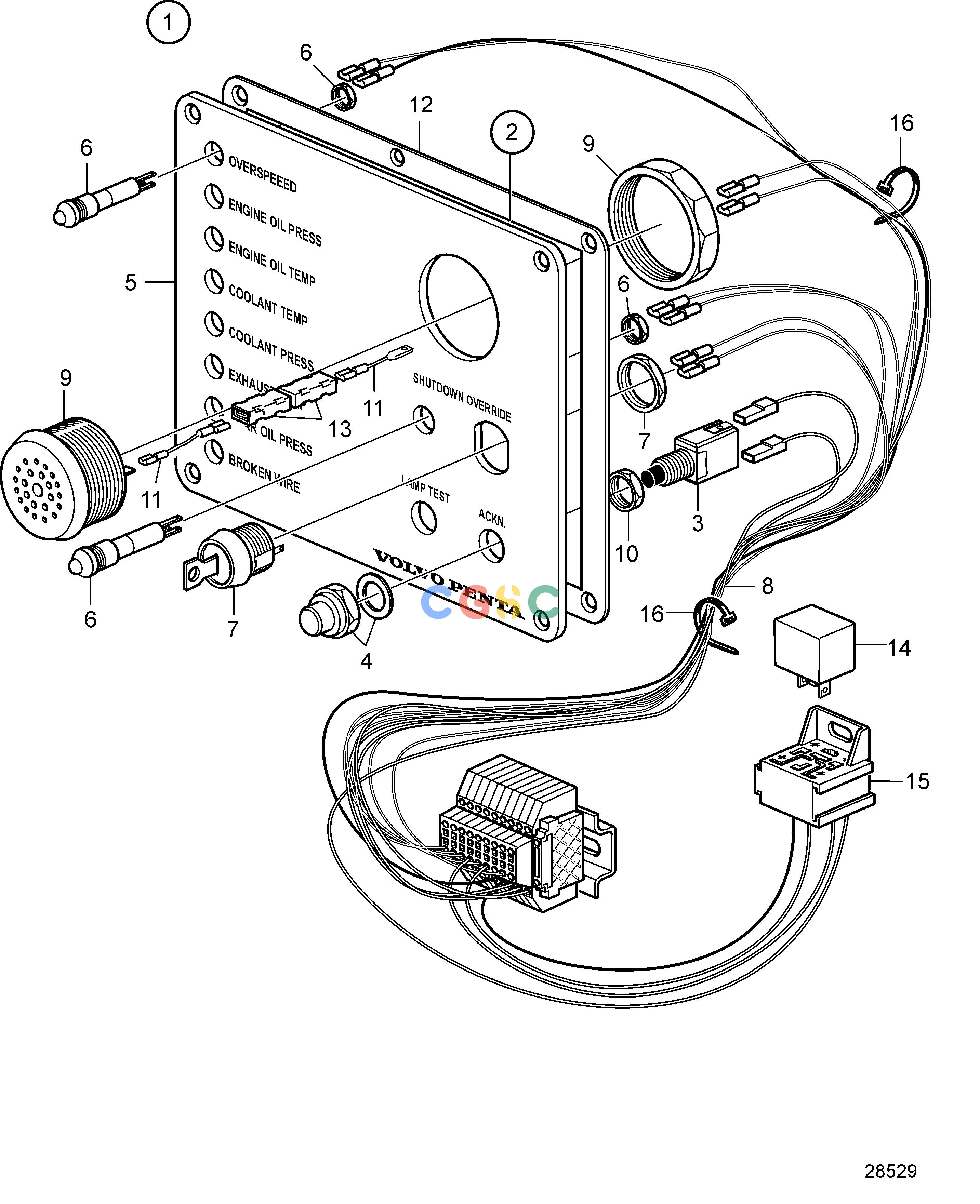

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
881959
|
[1] |
Control panel
|
|
| 3. |
828584
|
[2] |
Toggle switch
|
|
| 4. |
828586
|
[2] |
Nut
|
|
| 5. |
|
|
|
|
| 6. |
881956
|
[9] |
Diode
|
|
| 7. |
881963
|
[1] |
Switch
|
|
| 8. |
881999
|
[1] |
Cable kit
|
|
| 9. |
828587
|
[1] |
Buzzer
|
(828587)
|
| 10. |
872407
|
[2] |
Hexagon nut
|
|
| 11. |
859426
|
[1] |
Cable kit
|
|
| 12. |
862331
|
[1] |
Gasket
|
|
| 13. |
20382270
|
[2] |
Diode
|
|
| 14. |
3171420
|
[1] |
Relay
|
|
| 15. |
21427463
|
[1] |
Cable
|
Contains parts for single and Twin installation.
|
| 16. |
948702
|
[1] |
Cable tie
|
|
