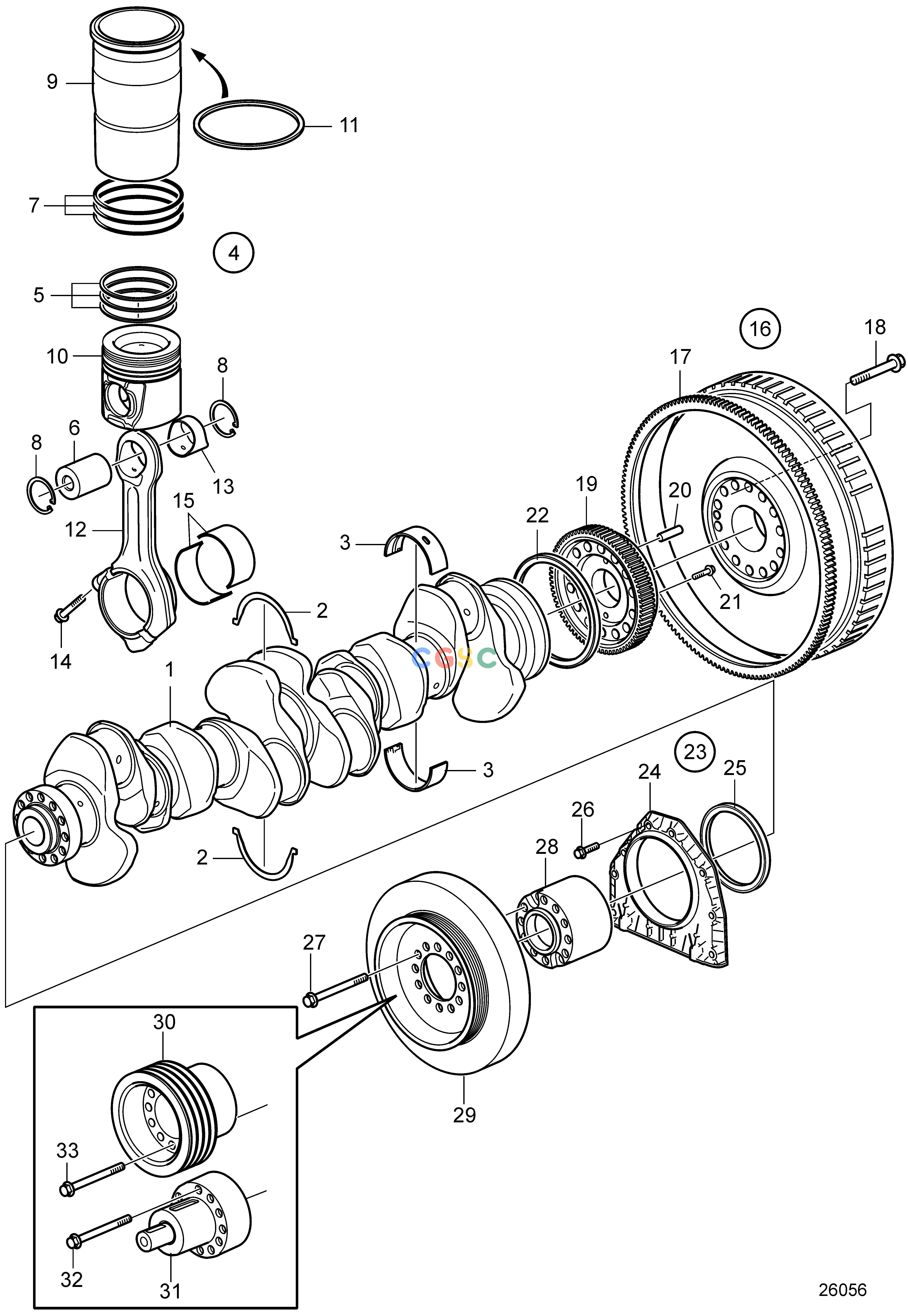

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHEngineCrank MechanismEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
368 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21230583
|
[1] |
Crankshaft
|
Replaced by 22697519
|
| 1. |
22697519
|
[1] |
Crankshaft
|
|
| 2. |
3093651
|
[1] |
Thrust washer kit
|
Std
|
| 3. |
20530916
|
[7] |
Main bearing kit
|
Std
|
| 3. |
20578624
|
[7] |
Main bearing kit
|
O.S=0,25mm
|
| 3. |
20578625
|
[7] |
Main bearing kit
|
O.S=0,50mm
|
| 3. |
20578627
|
[7] |
Main bearing kit
|
O.S=1,0mm
|
| 4. |
21397404
|
[6] |
Cylinder liner kit
|
Replaced by 22415842
|
| 4. |
22415842
|
[6] |
Cylinder liner kit
|
|
| 5. |
21253763
|
[1] |
Piston ring kit
|
|
| 6. |
|
|
|
|
| 7. |
270950
|
[1] |
Gasket kit
|
|
| 8. |
914531
|
[2] |
Snap ring
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
1677591
|
[1] |
Shim
|
TH=0,2mm
|
| 11. |
1677592
|
[1] |
Shim
|
TH=0,3mm
|
| 11. |
1677593
|
[1] |
Shim
|
TH=0,5mm
|
| 12. |
21261206
|
[6] |
Connecting rod
|
|
| 13. |
20730398
|
[1] |
Bushing
|
|
| 14. |
20486228
|
[4] |
Flange screw
|
|
| 15. |
20580558
|
[6] |
Big-end bearing kit
|
Std
|
| 15. |
20711963
|
[6] |
Big-end bearing kit
|
O.S=0,25mm
|
| 15. |
20711964
|
[6] |
Big-end bearing kit
|
O.S=0,50mm
|
| 15. |
20711966
|
[6] |
Big-end bearing kit
|
O.S=1,00mm
|
| 16. |
21573048
|
[1] |
Flywheel
|
|
| 17. |
20711957
|
[1] |
Ring gear
|
(8193939)
|
| 18. |
21344746
|
[14] |
Flange screw
|
|
| 19. |
20743004
|
[1] |
Gear
|
|
| 20. |
950658
|
[1] |
Pin
|
|
| 21. |
984738
|
[2] |
Flange screw
|
|
| 22. |
85108352
|
[1] |
Crankshaft seal
|
SN-2013614979
|
| 22. |
22191895
|
[1] |
Crankshaft seal
|
SN2013614980-
|
| 23. |
20777233
|
[1] |
Cover
|
Replaced by 21054681
|
| 23. |
21054681
|
[1] |
Cover
|
SN-2013614979
|
| 24. |
20777236
|
[1] |
Cover
|
SN2013614980-
|
| 25. |
21347087
|
[1] |
Crankshaft seal
|
SN-2013614979
|
| 25. |
21779548
|
[1] |
Crankshaft seal
|
SN2013614980-
|
| 26. |
984736
|
[8] |
Flange screw
|
|
| 27. |
990813
|
[12] |
Flange screw
|
|
| 28. |
21376964
|
[1] |
Adapter
|
|
| 29. |
3594670
|
[1] |
Vibration damper
|
|
| 30. |
21710847
|
[1] |
Pulley
|
|
| 31. |
21499128
|
[1] |
Shaft
|
|
| 32. |
970912
|
[12] |
Hexagon screw
|
|
| 33. |
981428
|
[12] |
Hex. socket screw
|
|
