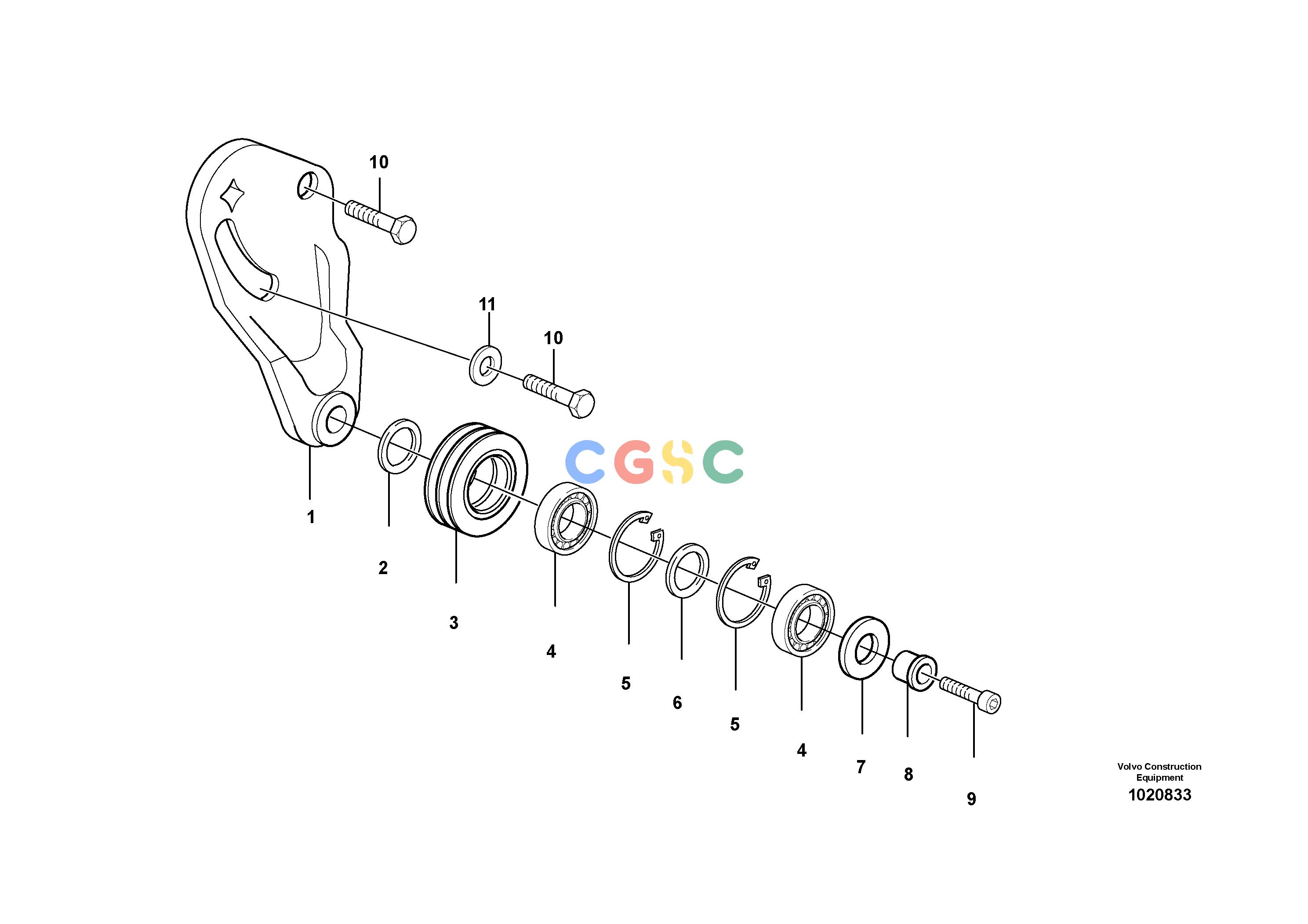

沃尔沃零件查询EC290B Belt transmissionNone8278906 S/N 10973--8278907 S/N 10973-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
325 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE22295257
|
[1] |
Belt Tensioner
|
|
| 1. |
VOE21133671
|
[1] |
Belt tensioner
|
|
| 2. |
VOE20450762
|
[1] |
Ring
|
|
| 3. |
VOE20450759
|
[1] |
Pulley
|
|
| 4. |
VOE20450750
|
[2] |
Ball bearing
|
|
| 5. |
VOE20459025
|
[2] |
Retaining ring
|
|
| 6. |
VOE20450760
|
[1] |
Spacer
|
|
| 7. |
VOE20450990
|
[1] |
Seal
|
|
| 8. |
VOE20450761
|
[1] |
Spacer
|
|
| 9. |
VOE20459263
|
[1] |
Hex. socket screw
|
|
| 10. |
VOE996813
|
[2] |
Flange screw
|
|
| 11. |
VOE20460365
|
[1] |
Washer
|
|
