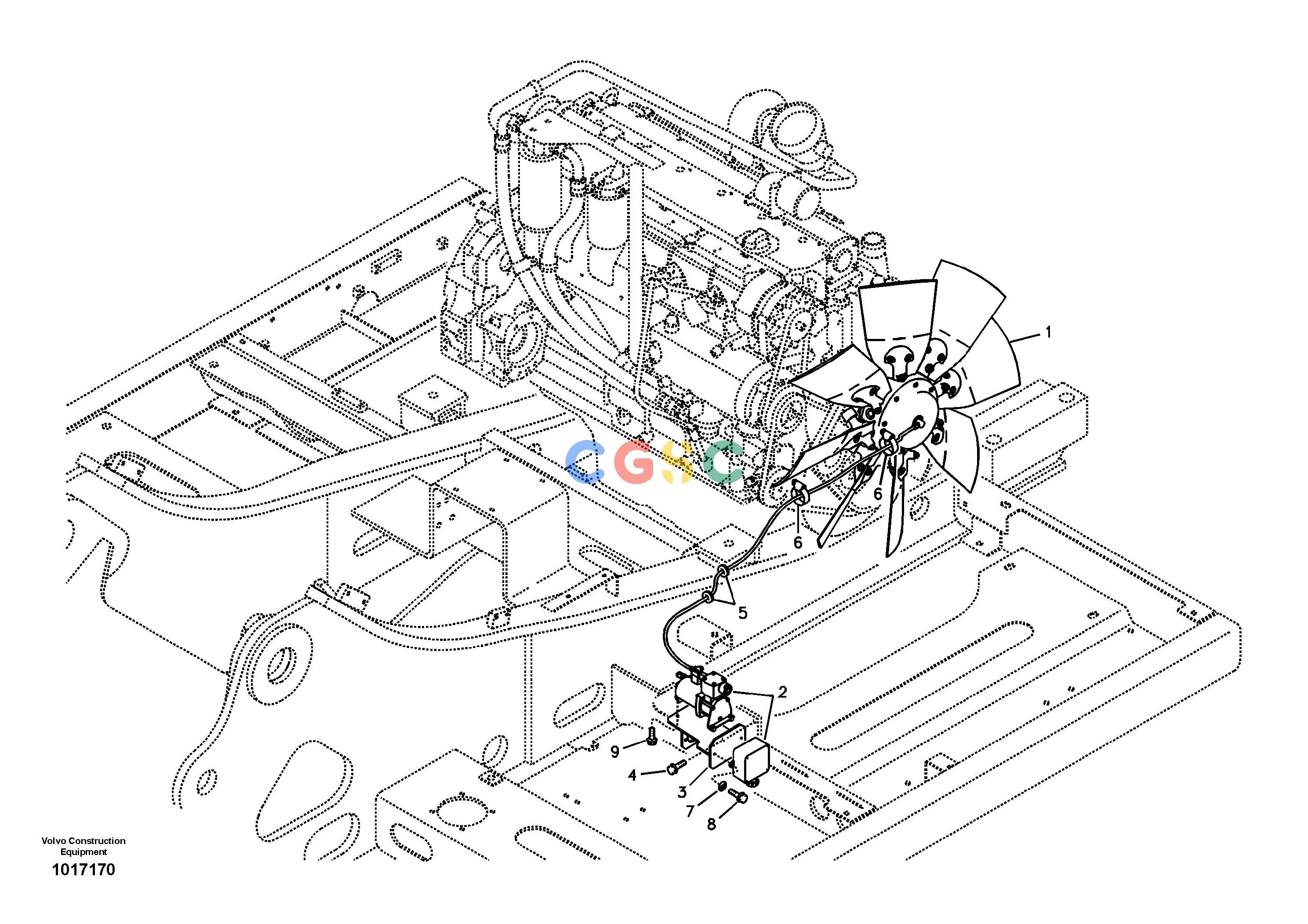

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | VOE14532839 | [1] | Fan | |
| 2. | VOE14532840 | [1] | Compressor, cpl. | |
| 3. | VOE14536963 | [1] | Bracket | |
| 4. | VOE946441 | [4] | Flange screw | |
| 5. | SA9751-11003 | [2] | Grommet | |
| 6. | SA9312-10175 | [2] | Hose clamp | |
| 7. | SA9213-05000 | [2] | Spring washer | |
| 8. | VOE969407 | [2] | Six point socket screw | |
| 9. | VOE946934 | [3] | Flange screw |
