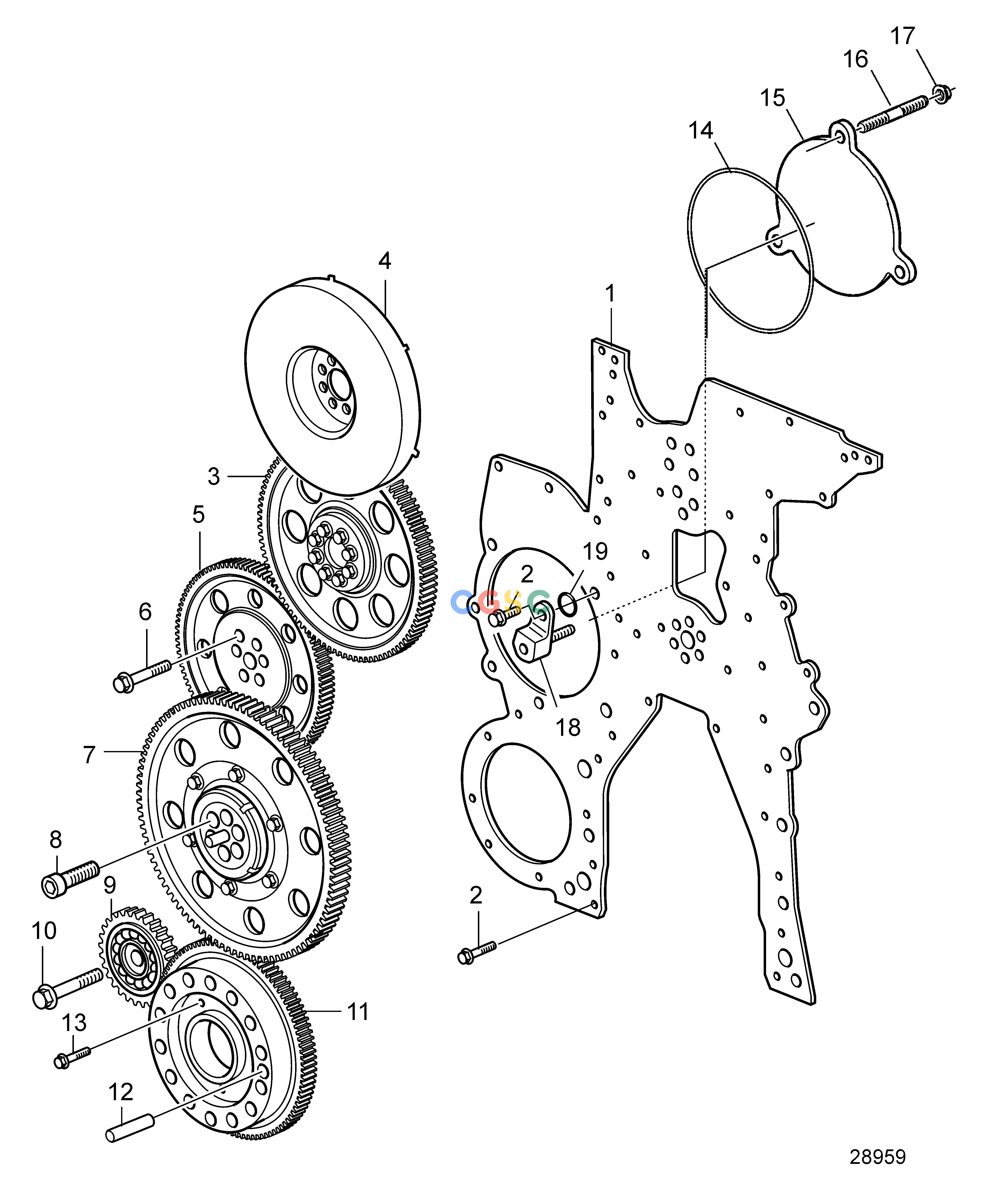

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHEngineTiming GearEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
794 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3886313
|
[1] |
Timing gear plate
|
|
| 2. |
994447
|
[24] |
Flange screw
|
|
| 3. |
21752320
|
[1] |
Gear, camshaft
|
|
| 4. |
21473104
|
[1] |
Vibration damper
|
|
| 5. |
20850724
|
[1] |
Idler gear, camshaft
|
|
| 6. |
974615
|
[6] |
Flange screw
|
|
| 7. |
21057068
|
[1] |
Idler gear
|
|
| 8. |
20483919
|
[6] |
Hex. socket screw
|
|
| 9. |
21284769
|
[1] |
Idler gear, power steering pump
|
|
| 10. |
21050240
|
[1] |
Flange screw
|
|
| 11. |
20743004
|
[1] |
Gear, crankshaft
|
|
| 12. |
950656
|
[1] |
Pin
|
|
| 13. |
984738
|
[2] |
Flange screw
|
|
| 14. |
948977
|
[1] |
O-ring
|
|
| 15. |
21872746
|
[1] |
Cover
|
|
| 16. |
953102
|
[2] |
Stud
|
|
| 17. |
979230
|
[3] |
Flange nut
|
|
| 18. |
22066002
|
[1] |
Bracket
|
|
| 19. |
943177
|
[1] |
O-ring
|
|
