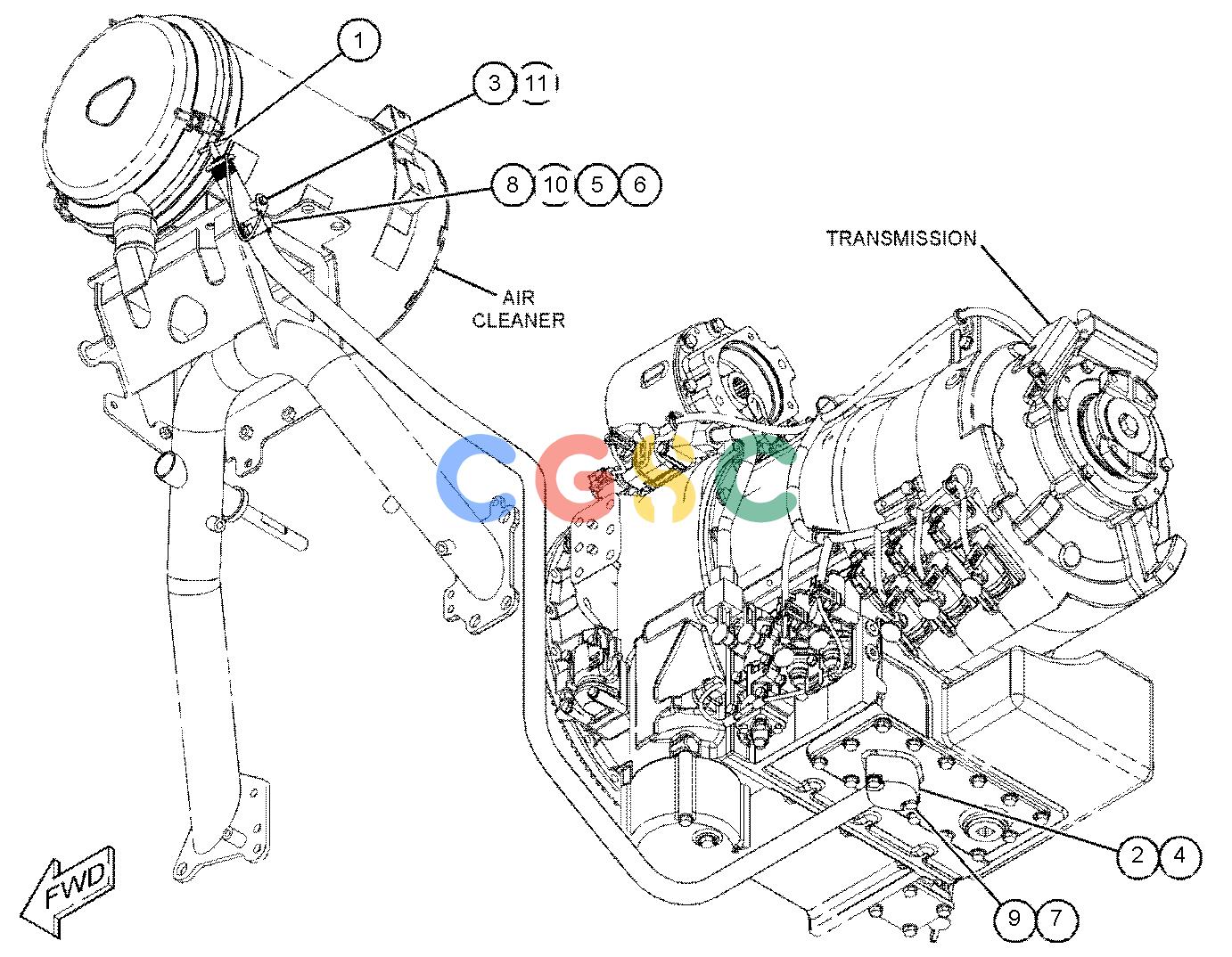

卡特零件查询（725C） 436-2975: FILLER GP-POWER TRAIN OIL
广数供应链运营团队, 14 02月, 2025，浏览：
1010 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 445-5342 | [1] | CAP-OIL FILLER(POWER TRAIN) | |
| 2. | 447-1428 | [1] | TUBE AS | |
| 3. | 5C-9553M | [1] | BOLT(M6X1X16-MM) | |
| 4. | 5F-8000 | [1] | SEAL-O-RING | |
| 5. | 8S-0023 | [1] | CLIP(SLOT) | |
| 6. | 8S-0024 | [1] | CLIP(TAB) | |
| 7. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 8. | 8T-4139M | [1] | BOLT(M12X1.75X30-MM) | |
| 9. | 8T-4185M | [2] | BOLT(M10X1.5X50-MM) | |
| 10. | 8T-4223 | [1] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 11. | 9X-8256 | [1] | WASHER(6.6X12X2-MM THK) | |
| | M | | METRIC PART |
