沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHEngineValve MechanismEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
774 次

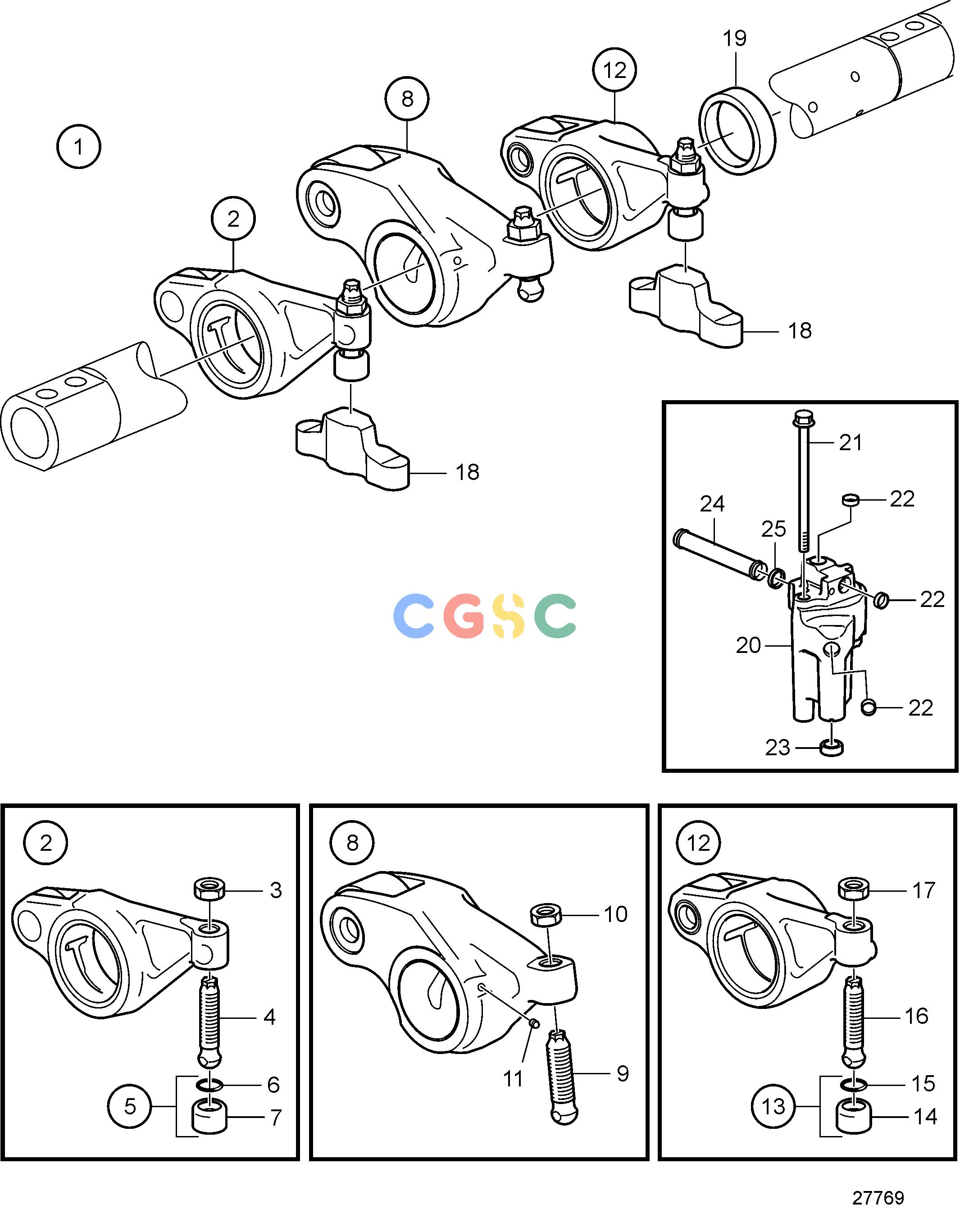

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7749490_000
|
|
Rocker arm shaft
|
|
| 2. |
21161213
|
[6] |
Rocker arm, intake
|
Replaced by 21637266
|
| 2. |
21637266
|
[6] |
Rocker arm
|
|
| 3. |
946911
|
[1] |
Hexagon nut
|
|
| 4. |
1546458
|
[1] |
Ball stud
|
|
| 5. |
21054149
|
[1] |
Ball socket
|
|
| 6. |
944364
|
[1] |
O-ring
|
|
| 7. |
|
|
|
|
| 8. |
21266310
|
[6] |
Rocker arm, injector
|
Replaced by 21881185
|
| 8. |
21881185
|
[6] |
Rocker arm
|
|
| 9. |
1546775
|
[1] |
Ball stud
|
|
| 10. |
1677396
|
[1] |
Hexagon nut
|
|
| 11. |
3964817
|
[2] |
Jet
|
|
| 12. |
21024789
|
[6] |
Rocker arm, exhaust
|
|
| 13. |
21054149
|
[1] |
Ball socket
|
|
| 14. |
|
|
|
|
| 15. |
944364
|
[1] |
O-ring
|
|
| 16. |
1546458
|
[1] |
Ball stud
|
|
| 17. |
946911
|
[1] |
Hexagon nut
|
|
| 18. |
3183207
|
[12] |
Valve caliper
|
|
| 19. |
20514249
|
[6] |
Sleeve
|
|
| 20. |
21105100
|
[1] |
Intermediate housing
|
|
| 21. |
968553
|
[2] |
Flange screw
|
|
| 22. |
955082
|
[3] |
Cap plug
|
|
| 23. |
20526428
|
[1] |
Sealing ring
|
|
| 24. |
20591851
|
[1] |
Outlet pipe
|
|
| 25. |
20526428
|
[1] |
Sealing ring
|
|
