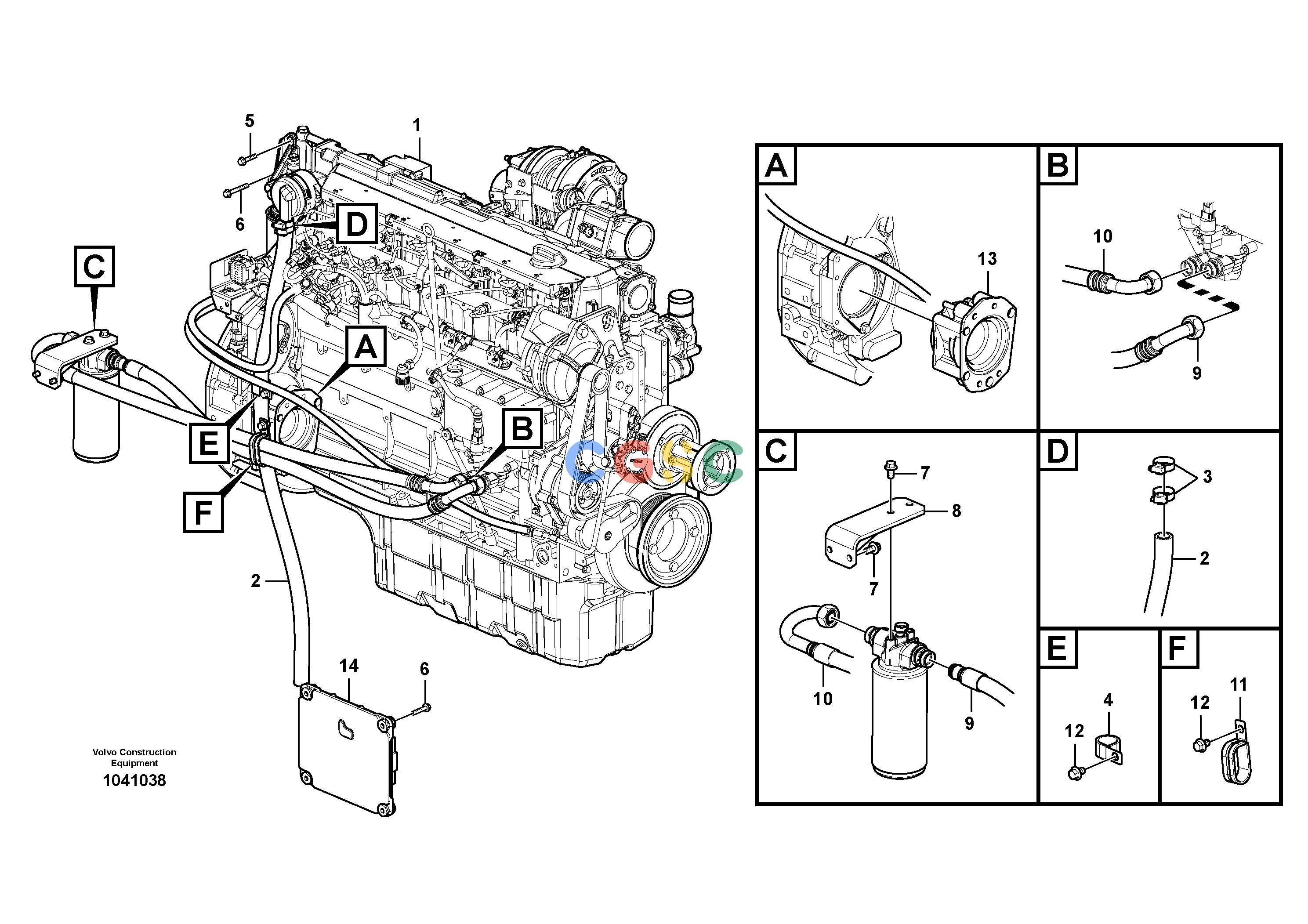

沃尔沃零件查询EC290B EnginePRIME S/N 17001-/50001- 35001-35895 / 85001-862848286030-8286031VOE8286030NoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
407 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE14536075
|
[1] |
Engine
|
Tier 2 Engine
|
| |
VOE14536078
|
|
Engine
|
Tier 3 Engine
|
| 2. |
VOE14880502
|
[1] |
Cooling hose
|
|
| 3. |
VOE943475
|
[1] |
Hose clamp
|
|
| 4. |
VOE14500297
|
[1] |
Clip
|
|
| 5. |
VOE947760
|
[6] |
Flange screw
|
|
| 6. |
VOE965180
|
[1] |
Flange screw
|
|
| 7. |
VOE946441
|
[4] |
Flange screw
|
|
| 8. |
VOE14578418
|
[1] |
Bracket
|
|
| 9. |
VOE14578414
|
[1] |
Hose
|
S/N 17001-17106
S/N 85001-85335
|
| |
VOE14595186
|
[1] |
Hose
|
S/N 17107-
S/N 85336-
|
| 10. |
VOE14578415
|
[1] |
Hose
|
|
| 11. |
VOE14507451
|
[1] |
Clip
|
|
| 12. |
VOE946471
|
[2] |
Flange screw
|
|
| 13. |
VOE20478271
|
|
Power take-off
|
|
| 14. |
VOE60100000
|
[1] |
Electronic unit
|
|
