纽荷兰零件查询(CV1100) - VIBRATORY ROLLER (7/01-) (06-004-00[01]) - STEERING CYLINDER New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
165 次

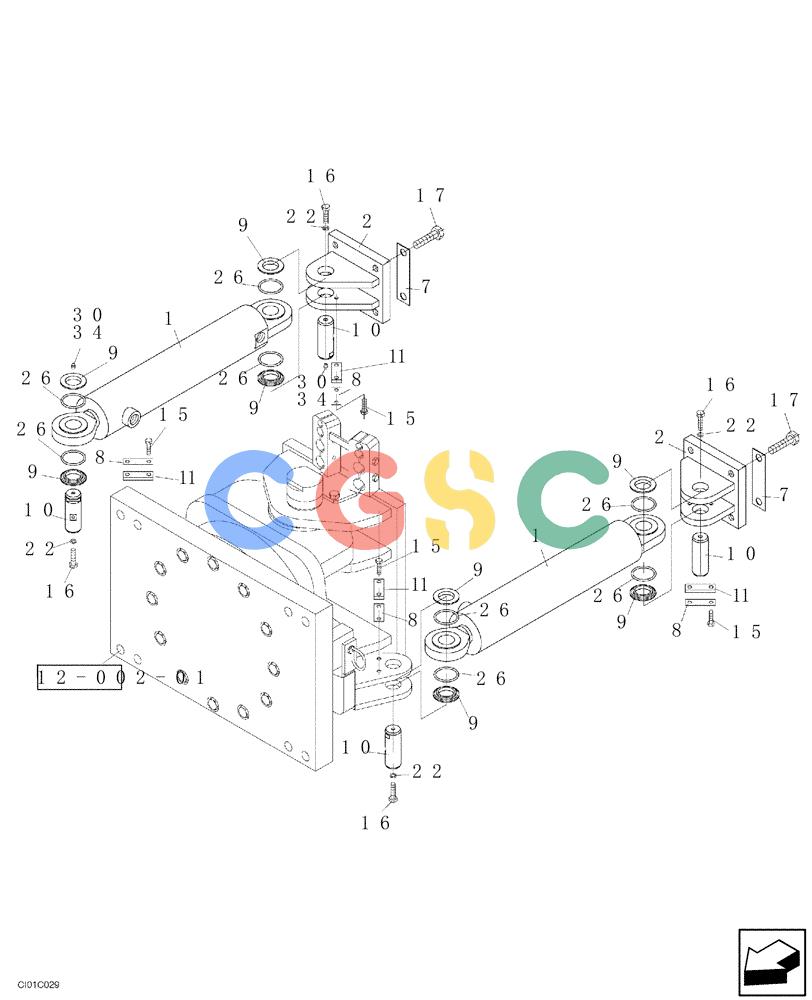

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ND110896 | [2] | HYDRAULIC CYLINDER | STA |
| 2. | ND030663 | [2] | SUPPORT | STA |
| 7. | ND052266 | [4] | WASHER | STA90 x 80 x 12,5 |
| 8. | ND048817 | [4] | COVER PLATE | STA |
| 9. | ND052264 | [8] | RING | STA |
| 10. | ND030660 | [4] | PIN | STA |
| 11. | ND048815 | [4] | PLATE | STA |
| 15. | ND021302 | [8] | BOLT | STAM10 x 25 |
| 16. | ND021308 | [4] | BOLT | STAM12 x 20 |
| 17. | ND021331 | [8] | BOLT,Hex, M16 x 40mm | STAM16 x 40 |
| 22. | ND029311 | [4] | WASHER | STAID 12,2 |
| 26. | ND079772 | [8] | RING | STA |
| 30. | ND064758 | [4] | PLUG | STA |
| 34. | ND070133 | [4] | LUBE NIPPLE,M10 x 1 | STA |
