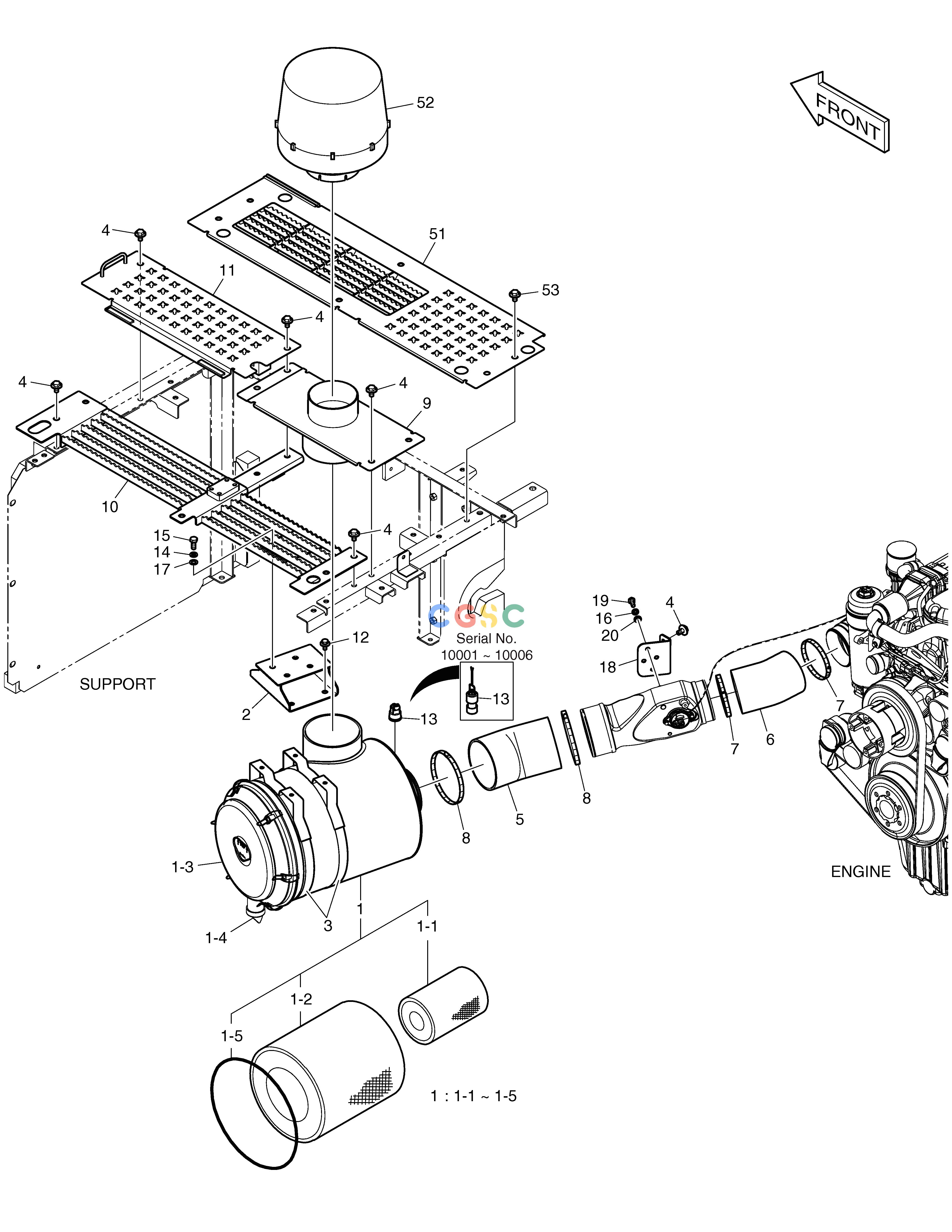

斗山零件查询AIR CLEANER DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
988 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400414-00255
|
[-] |
|
|
| 1. |
204-00066
|
[1] |
AIR CLEANER
|
|
| 1-1. |
474-00037
|
[1] |
ELEMENT;INNER
|
|
| 1-2. |
474-00038
|
[1] |
ELEMENT;OUTER
|
|
| 1-3. |
204-00069
|
[1] |
COVER
|
|
| 1-4. |
204-00070
|
[1] |
VALVE
|
|
| 1-5. |
204-00071
|
[1] |
RING,O
|
|
| 10. |
110508-17152A
|
[1] |
|
|
| 11. |
110508-17153
|
[1] |
|
|
| 12. |
DS0025017
|
[4] |
BOLT
|
|
| 13. |
170-00004
|
[1] |
INDICATOR
|
|
| 13. |
800217-00100
|
[1] |
INDICATOR,DUST
|
|
| 14. |
S5102703
|
[4] |
WASHER
|
|
| 15. |
S0515266
|
[4] |
BOLT
|
|
| 16. |
S5102603
|
[4] |
. WASHER
|
|
| 17. |
S5010713
|
[4] |
WASHER;PLAIN
|
|
| 18. |
110406-02279A
|
[1] |
|
|
| 19. |
S0512066
|
[4] |
. BOLT
|
|
| 2. |
110401-00012B
|
[1] |
|
|
| 20. |
S5010613
|
[4] |
WASHER
|
|
| 3. |
124-00297A
|
[2] |
BAND
|
|
| 4. |
DS0025015
|
[12] |
BOLT
|
|
| 5. |
420101-00720
|
[1] |
|
|
| 51. |
110508-17154
|
[1] |
|
|
| 52. |
K1043471
|
[1] |
PRE CLEANER
|
|
| 53. |
DS0025015
|
[6] |
BOLT
|
|
| 6. |
420101-00719A
|
[1] |
|
|
| 7. |
S8510143
|
[2] |
CLAMP
|
|
| 8. |
S8510168
|
[2] |
CLAMP;HOSE
|
|
| 9. |
110508-17151
|
[1] |
|
|
