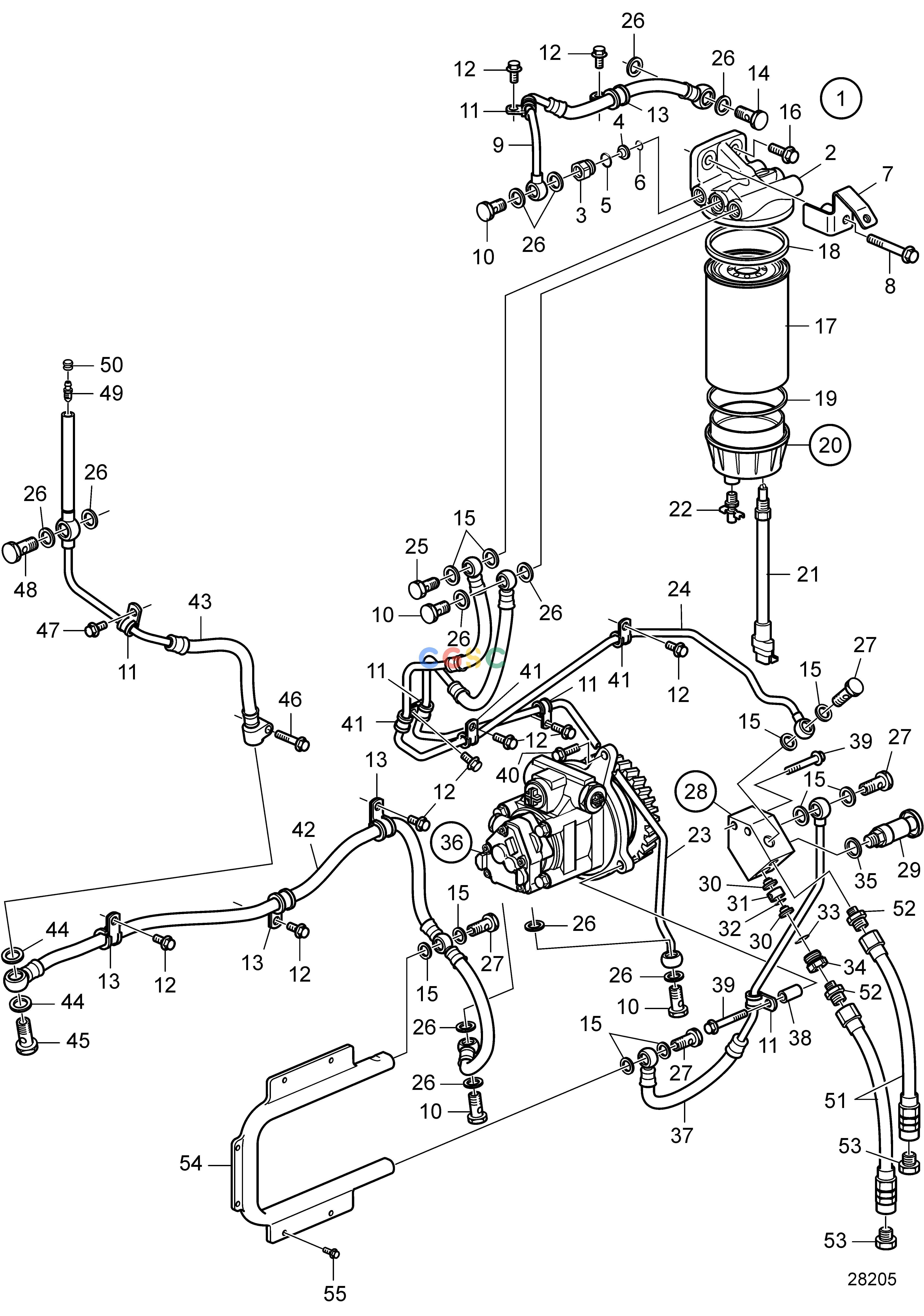

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHFuel SystemFuel SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
135 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3849120
|
[1] |
Fuel filter housing
|
|
| 2. |
3849120
|
[1] |
Fuel filter housing
|
|
| 3. |
21140340
|
[1] |
Nipple
|
|
| 4. |
21113993
|
[1] |
Non-return valve
|
|
| 5. |
1526474
|
[1] |
O-ring
|
|
| 6. |
976971
|
[1] |
O-ring
|
|
| 7. |
21168135
|
[1] |
Bracket, cover
|
|
| 8. |
984758
|
[1] |
Flange screw
|
|
| 9. |
3889701
|
[1] |
Fuel hose
|
Replaced by 22248072
|
| 9. |
22248072
|
[1] |
Fuel hose
|
Replaced by 22965380
|
| 9. |
22965380
|
[1] |
Fuel hose
|
|
| 10. |
991046
|
[4] |
Hollow screw
|
|
| 11. |
942542
|
[5] |
Clamp
|
|
| 12. |
984733
|
[9] |
Flange screw
|
|
| 13. |
949747
|
[4] |
Clamp
|
|
| 14. |
190713
|
[1] |
Hollow screw
|
|
| 15. |
20852764
|
[10] |
Sealing ring
|
|
| 16. |
946472
|
[1] |
Flange screw
|
|
| 17. |
3809721
|
[1] |
Fuel filter insert
|
|
| 18. |
|
|
|
|
| 19. |
|
|
|
|
| 20. |
21283474
|
[1] |
Bowl
|
|
| 21. |
3885070
|
[1] |
Sensor
|
|
| 22. |
21279867
|
[1] |
Drain valve
|
|
| 23. |
3889682
|
[1] |
Fuel pipe
|
|
| 24. |
21385273
|
[1] |
Air vent hose
|
|
| 25. |
3594288
|
[1] |
Valve
|
|
| 26. |
20852765
|
[10] |
Sealing ring
|
|
| 27. |
991048
|
[4] |
Hollow screw
|
|
| 28. |
3889704
|
[1] |
Housing
|
|
| 29. |
3837393
|
[1] |
Hand pump
|
|
| 30. |
244834
|
[2] |
Non-return valve
|
|
| 31. |
8148331
|
[1] |
Spacer sleeve
|
|
| 32. |
976971
|
[1] |
O-ring
|
|
| 33. |
1526474
|
[1] |
O-ring
|
|
| 34. |
21168724
|
[1] |
Nipple
|
|
| 35. |
947622
|
[1] |
Gasket
|
|
| 36. |
22677520
|
[1] |
Fuel pump
|
|
| 37. |
21163011
|
[1] |
Fuel hose
|
|
| 38. |
843075
|
[1] |
Spacer sleeve
|
|
| 39. |
994386
|
[1] |
Flange screw
|
|
| 40. |
994386
|
[1] |
Flange screw
|
L=55mm
|
| 40. |
984736
|
[2] |
Flange screw
|
L=30mm
|
| 41. |
942400
|
[3] |
Clamp
|
|
| 42. |
3889699
|
[1] |
Fuel hose
|
|
| 43. |
22037739
|
[1] |
Fuel hose
|
|
| 44. |
20852765
|
[2] |
Sealing ring
|
|
| 45. |
21088049
|
[1] |
Overflow valve
|
|
| 46. |
984738
|
[1] |
Flange screw
|
|
| 47. |
984732
|
[1] |
Flange screw
|
|
| 48. |
991046
|
[1] |
Hollow screw
|
|
| 49. |
20548012
|
[1] |
Faucet
|
|
| 50. |
20547976
|
[1] |
Protecting cover
|
|
| 51. |
3826595
|
[2] |
Fuel hose
|
|
| 52. |
977677
|
[2] |
Nipple
|
|
| 53. |
22753
|
[2] |
Nipple
|
|
| 54. |
20562394
|
[1] |
Radiator
|
Replaced by 21251350
|
| 54. |
21251350
|
[1] |
Radiator
|
|
| 55. |
994264
|
[6] |
Flange screw
|
|
