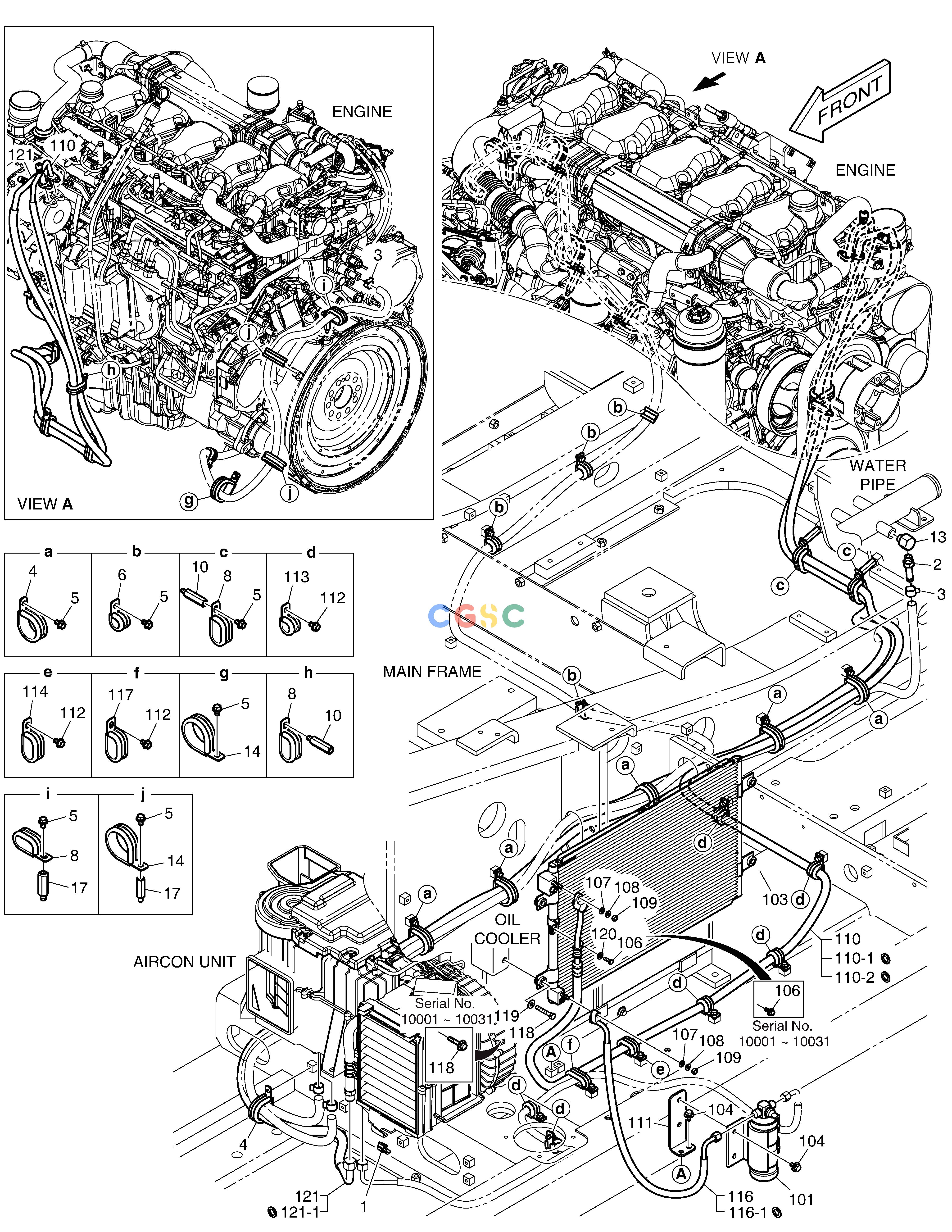

斗山零件查询AIRCONDITIONER(1) DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
456 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
440213-00351A
|
[-] |
|
|
| 1. |
547-00024A
|
[1] |
SENSOR
|
|
| 10. |
2120-2187
|
[3] |
BOLT
|
|
| 101. |
300720-00003
|
[1] |
DRYER,RECEIVER
|
|
| 101. |
2204-6039A
|
[1] |
RECEIVER DRIER
|
300720-00003
|
| 103. |
520-00004
|
[1] |
CONDENSER,AIR CON
|
|
| 104. |
DS0025033
|
[4] |
BOLT
|
|
| 106. |
S0504666
|
[1] |
BOLT
|
|
| 106. |
DS0025056
|
[1] |
BOLT
|
|
| 107. |
S5000313
|
[2] |
WASHER
|
|
| 108. |
S5102303
|
[2] |
. WASHER
|
|
| 109. |
S4012303
|
[2] |
NUT
|
|
| 110. |
420102-00520
|
[1] |
|
|
| 110-1. |
2180-6088
|
[1] |
O-RING(COMP)
|
|
| 110-2. |
K1011384
|
[1] |
O-RING(CONDENSER)
|
|
| 111. |
110406-00930
|
[1] |
|
|
| 112. |
K1001029
|
[8] |
BOLT
|
|
| 113. |
124-00208D3
|
[6] |
CLIP
|
|
| 114. |
124-00209D1
|
[1] |
CLIP
|
|
| 116. |
420102-00543
|
[1] |
|
|
| 116-1. |
K1011388
|
[2] |
O-RING
|
|
| 117. |
124-00209D4
|
[1] |
CLIP
|
|
| 118. |
S0509666
|
[4] |
BOLT
|
|
| 118. |
DS0025071
|
[4] |
|
|
| 119. |
DS0401202
|
[4] |
|
|
| 120. |
2114-1058D52
|
[4] |
WASHER
|
|
| 121. |
420102-00542
|
[1] |
|
|
| 121-1. |
K1011385
|
[1] |
O-RING(EVAPORATOR)
|
|
| 13. |
2181-1161A
|
[1] |
ADAPTER
|
|
| 14. |
124-00208D9
|
[3] |
CLIP
|
|
| 17. |
DS0026006
|
[3] |
|
|
| 2. |
DS2228010
|
[1] |
|
|
| 3. |
S8470028
|
[2] |
CLAMP
|
|
| 4. |
124-00208D7
|
[6] |
CLIP
|
|
| 5. |
K1001029
|
[15] |
BOLT
|
|
| 6. |
124-00208D3
|
[4] |
CLIP
|
|
| 8. |
124-00209D2
|
[4] |
CLIP
|
|
