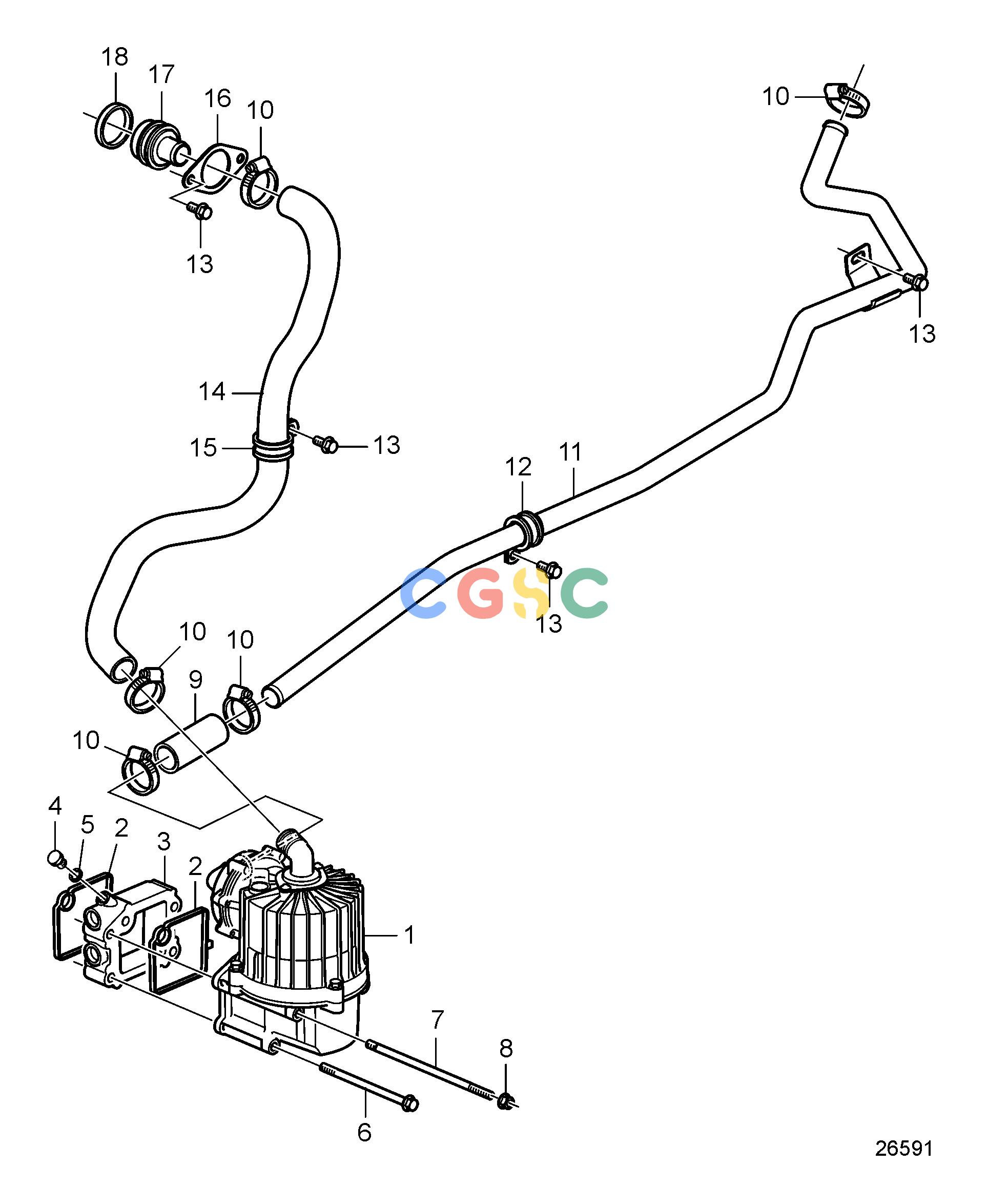

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHIntake and Exhaust SystemCrankcase Ventilation, Later Production. SNX013349123-EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
369 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21122541
|
[1] |
Oil separator
|
|
| 2. |
20532891
|
[2] |
Gasket
|
|
| 3. |
3889722
|
[1] |
Spacer
|
|
| 4. |
960628
|
[1] |
Plug
|
|
| 5. |
947281
|
[1] |
Gasket
|
|
| 6. |
984747
|
[2] |
Flange screw
|
|
| 7. |
981440
|
[2] |
Stud
|
|
| 8. |
990940
|
[2] |
Flange nut
|
|
| 9. |
20580933
|
[2] |
Hose
|
|
| 10. |
853548
|
[2] |
Hose clamp
|
|
| 11. |
21750225
|
[1] |
Pipe
|
Replaced by 78467410
|
| 11. |
78467410
|
[1] |
Pipe
|
|
| 12. |
947827
|
[1] |
Clamp
|
|
| 13. |
984733
|
[5] |
Flange screw
|
|
| 14. |
21274017
|
[1] |
Hose
|
|
| 15. |
949997
|
[1] |
Clamp
|
|
| 16. |
3849250
|
[1] |
Flange
|
|
| 17. |
21274024
|
[1] |
Adapter
|
|
| 18. |
21532258
|
[1] |
Sealing ring
|
|
