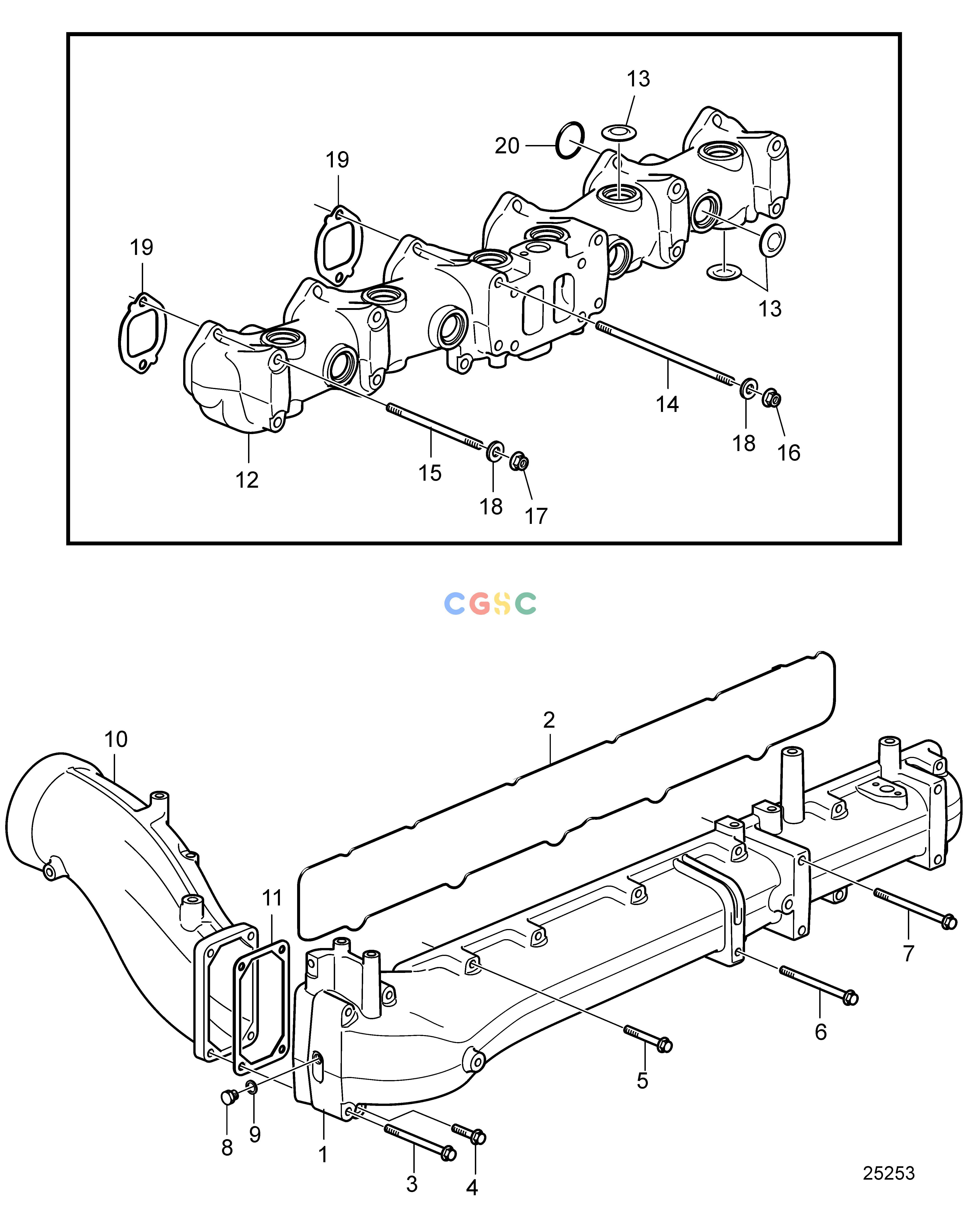

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHIntake and Exhaust SystemIntake and Exhaust Manifold SN-2013583528EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
458 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21221926
|
[1] |
Inlet manifold
|
Replaced by 22900262
|
| 1. |
22900262
|
[1] |
Inlet manifold
|
|
| 2. |
20805850
|
[1] |
Seal
|
|
| 3. |
984744
|
[4] |
Flange screw
|
|
| 4. |
984755
|
[1] |
Flange screw
|
|
| 5. |
984740
|
[12] |
Flange screw
|
|
| 6. |
984734
|
[1] |
Flange screw
|
|
| 7. |
984752
|
[4] |
Flange screw
|
|
| 8. |
960628
|
[1] |
Plug
|
|
| 9. |
907132
|
[1] |
Gasket
|
|
| 10. |
3889519
|
[1] |
Charge air pipe
|
|
| 11. |
3979639
|
[1] |
Plane gasket
|
|
| 12. |
3888479
|
[1] |
Exhaust manifold
|
Replaced by 21866581, use plug 968955x16
|
| 12. |
21866581
|
[1] |
Exhaust manifold
|
Replaced by 22679670, use plug 60112158
|
| 12. |
22679670
|
[1] |
Exhaust manifold
|
Use plug 22640527+o-ring 975666
|
| 13. |
60112158
|
[16] |
Expansion plug
|
|
| 14. |
994624
|
[4] |
Stud
|
L=225mm
|
| 15. |
953007
|
[8] |
Stud
|
L=150mm
|
| 16. |
994628
|
[4] |
Flange nut
|
|
| 17. |
1543499
|
[8] |
Flange nut
|
|
| 18. |
941908
|
[12] |
Spring washer
|
|
| 19. |
20543071
|
[6] |
Gasket
|
|
| 20. |
1547253
|
[2] |
Sealing ring
|
SN-1013429362
|
| 20. |
975693
|
[2] |
O-ring
|
SN1013429363-
|
