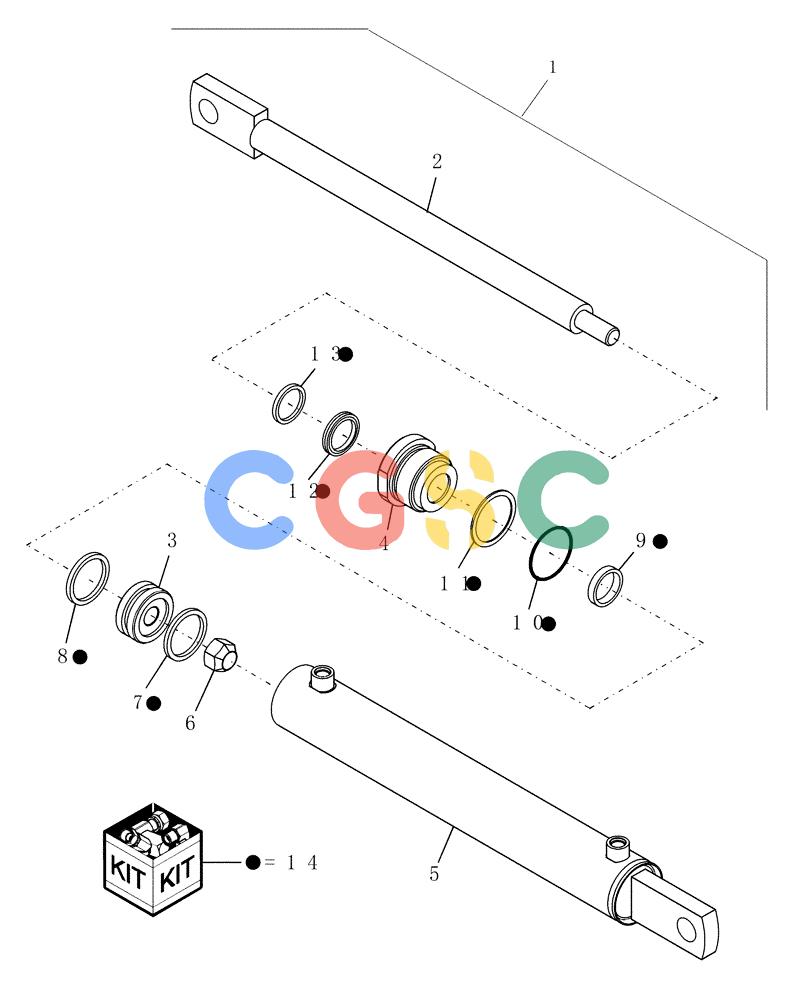

凯斯零件查询(RB554) - CASE IH ROUND BALER (7/07-1/14) (07.32) - HYDRAULIC CYLINDER, TAILGATE LIFT Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
819 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87020744
|
[1] |
HYDRAULIC CYLINDER
|
PA
Tailgate Lift Superseded by part number: 87517400
|
| 2. |
87025722
|
[1] |
PISTON ROD
|
PA
|
| 3. |
87027474
|
[1] |
PISTON
|
PA
|
| 4. |
87027467
|
[1] |
HEAD
|
PA
Cylinder
|
| 5. |
NSS
|
[1] |
NOT SOLD SEPARAT
|
CON
Barrel
|
| 6. |
280724
|
[1] |
LOCK NUT,3/4" - 16
|
NH
|
| 7. |
771701
|
[1] |
WEAR RING,Split, 50.8mm ID x 57.15mm OD x 9.53mm Thk
|
NH
|
| 8. |
86570920
|
[1] |
SEAL,46.35mm ID x 57.02mm OD x 6.99mm Thk
|
NH
3 Pc., 2.25" Piston
|
| 9. |
9843627
|
[1] |
WEAR RING,Split, 31.75mm ID x 34.8mm OD x 12.7mm Thk
|
NH
1.250" ID x .50" Thk.
|
| 10. |
238-6226
|
[1] |
O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro
|
CAS
Superseded by part number: 86502704
|
| 11. |
86502705
|
[1] |
SEAL,50.9mm ID x 56.74mm OD x 1.27mm Thk
|
NH
Back-Up, 2.147" ID x .040" Thk.
|
| 12. |
86513307
|
[1] |
SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk
|
NH
1.250" ID x 1.500" OD
|
| 13. |
529340
|
[1] |
SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk
|
NH
Rod Wiper
|
| 14. |
87027479
|
[1] |
SEAL KIT
|
PA
|
