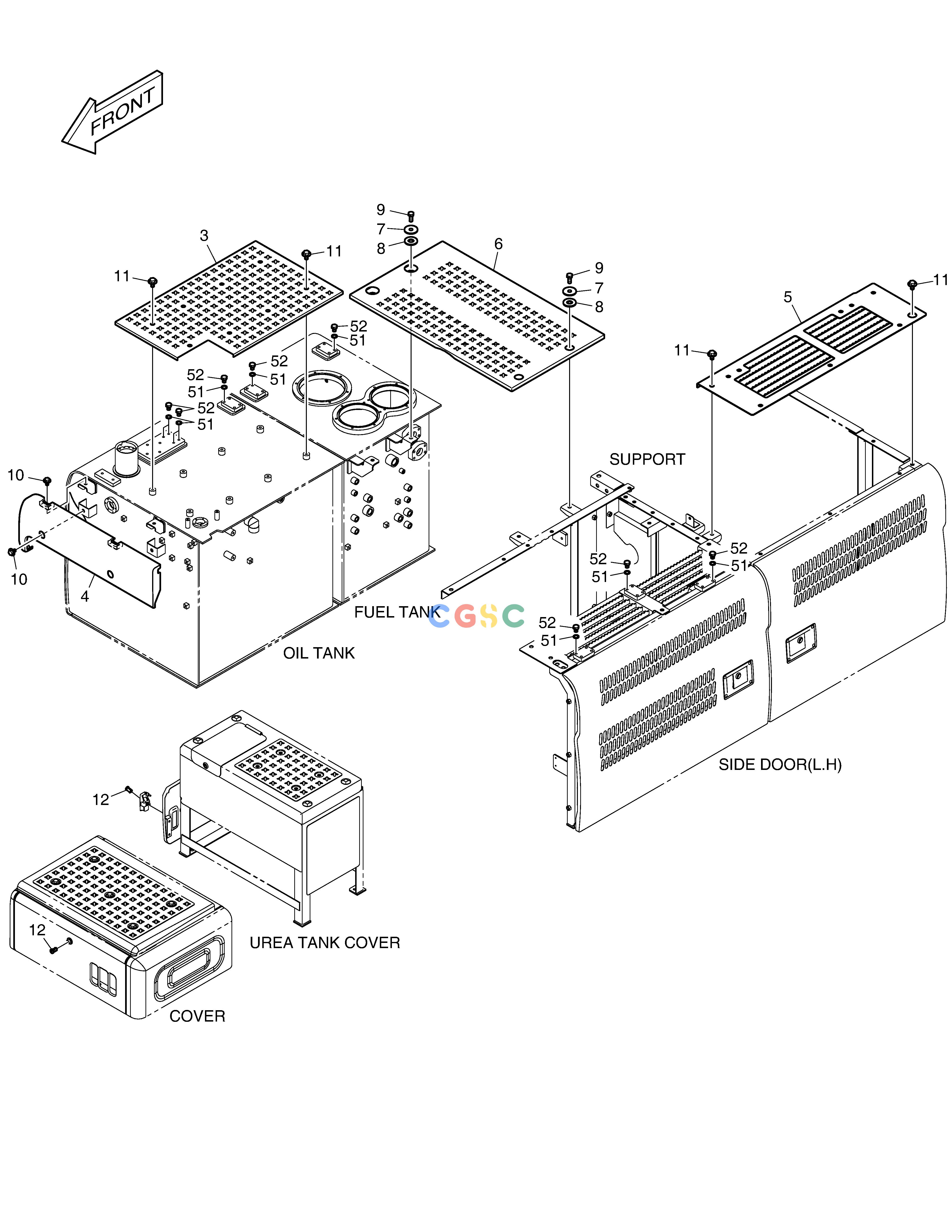

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 110508-11966 | [-] | ||
| 10. | DS0025014 | [4] | BOLT | |
| 11. | DS0025015 | [15] | BOLT | |
| 12. | K1004630 | [2] | CYLINDER;KEY | |
| 3. | 110508-11895A | [1] | ||
| 4. | 110508-17075A | [1] | ||
| 5. | 110508-16990A | [1] | ||
| 51. | DS0401164 | [28] | ||
| 52. | S0514666 | [28] | BOLT | |
| 6. | 110508-11894A | [1] | 110508-11894B | |
| 6. | 110508-11894B | [1] | ||
| 7. | 114-00529 | [2] | SPACER | |
| 8. | K1002943 | [2] | RUBBER | |
| 9. | S0515266 | [2] | BOLT |
