卡特零件查询（725C） 444-5871: FILTER GP-FUMES DISPOSAL
广数供应链运营团队, 14 02月, 2025，浏览：
192 次

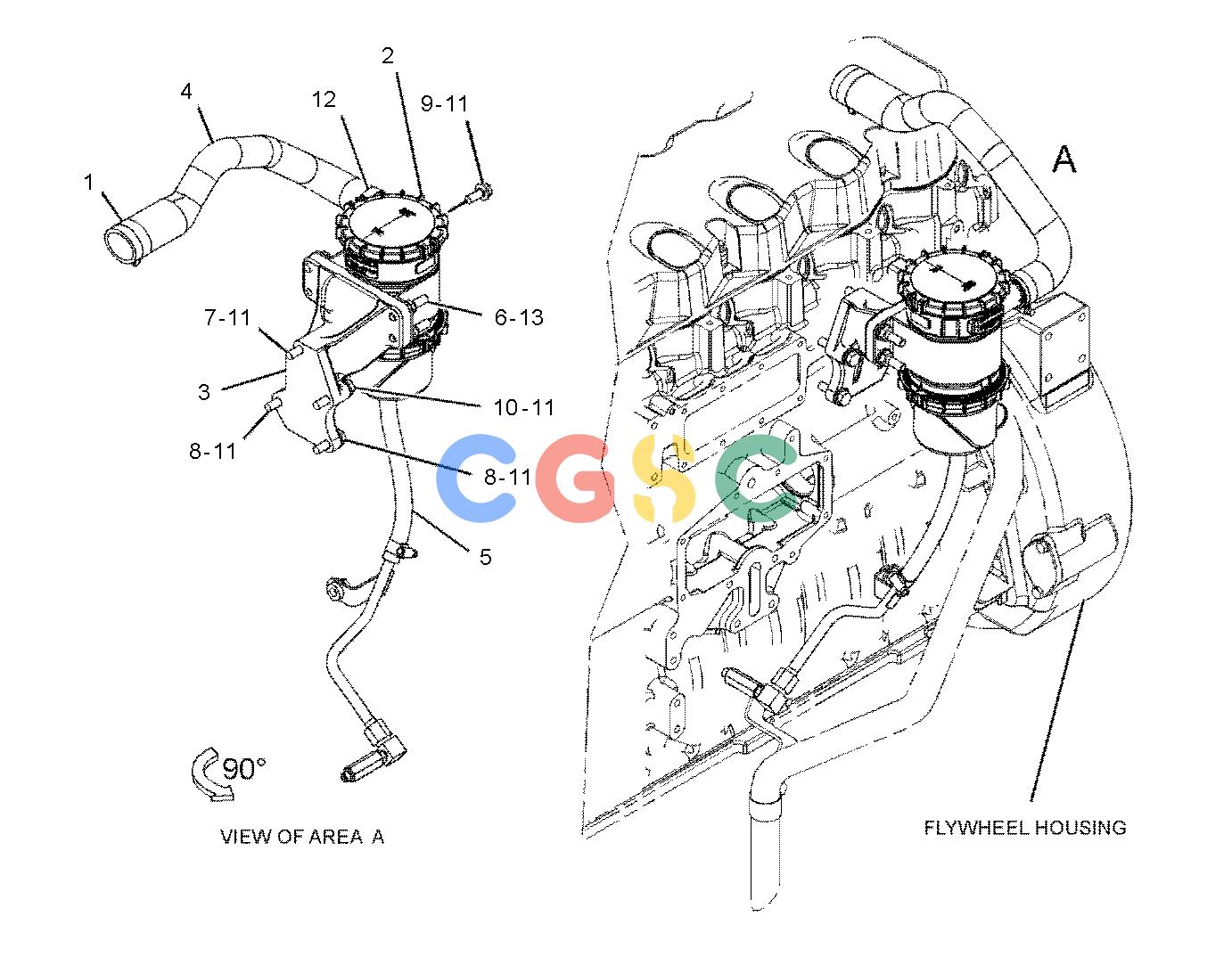

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 127-4471 | [1] | CLAMP-HOSE | |
| 2. | 344-5107 | [1] | FILTER AS-FUMES DISPOSAL(CRANKCASE VENTILATION) | |
| | 335-4014 | [1] | FILTER AS-FUMES DISPOSAL(VENTILATION) | |
| | 326-4689 | [1] | FILTER ELEMENT-FUMES DISPOSAL | |
| | 353-0288 | [1] | BRACKET AS-MOUNTING | |
| 3. | 344-5120 | [1] | BRACKET | |
| 4. | 444-5872 | [1] | HOSE | |
| 5. | 444-6282Y | [1] | FUMES DISPOSAL GP | |
| 6. | 142-3953M | [2] | STUD(M10X1.5-THD) | |
| 7. | 6V-1819M | [1] | BOLT(M10X1.5X100-MM) | |
| 8. | 6V-3822M | [2] | BOLT(M10X1.5X35-MM) | |
| 9. | 6V-4248M | [2] | BOLT(M10X1.5X25-MM) | |
| 10. | 6V-4249M | [1] | BOLT(M10X1.5X50-MM) | |
| 11. | 6V-5839 | [6] | WASHER(11X21X2.5-MM THK) | |
| 12. | 8T-1117 | [1] | CLAMP-HOSE | |
| 13. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
