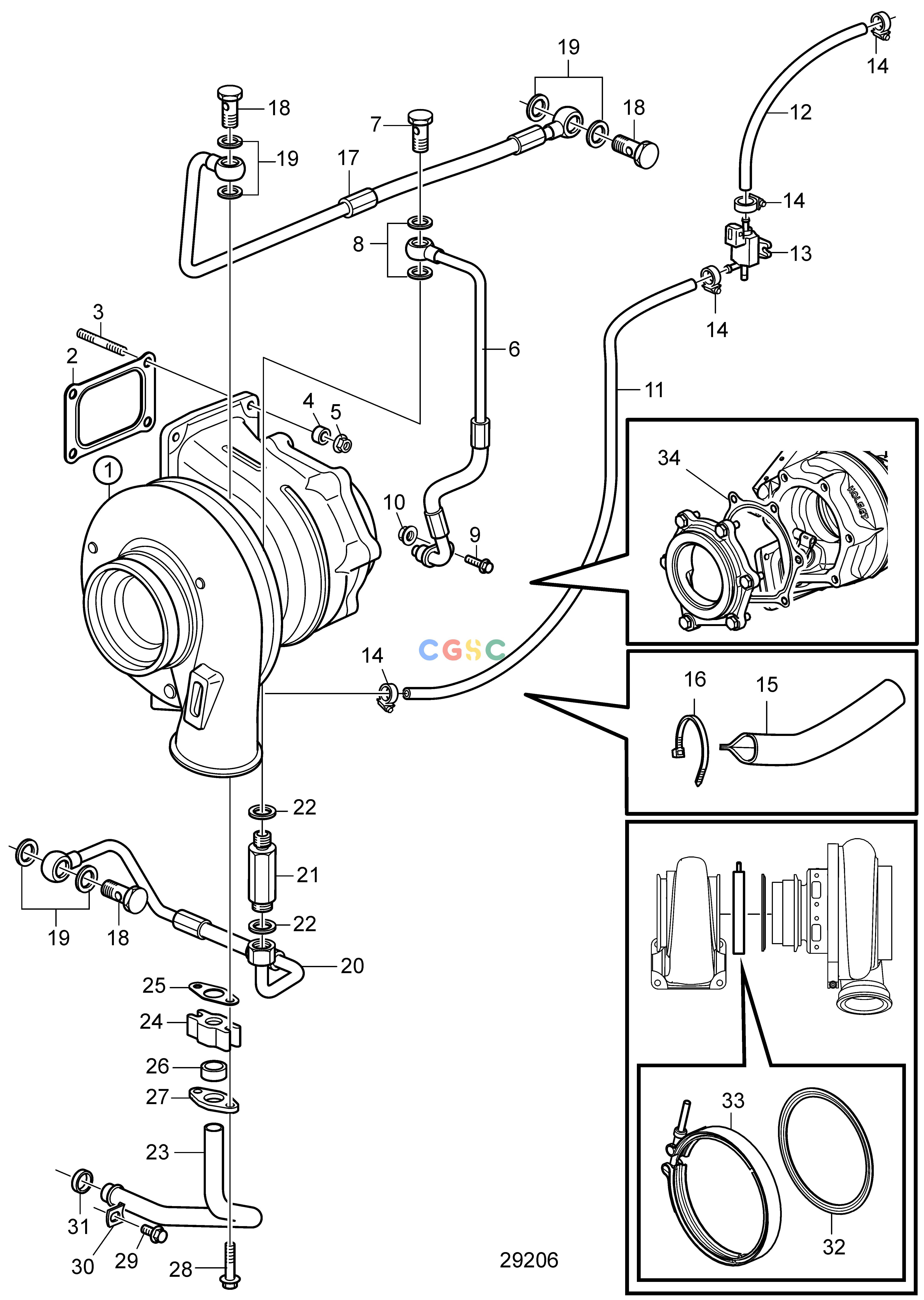

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHIntake and Exhaust SystemTurbochargerEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
819 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801374
|
[1] |
Turbocharger
|
Replaced by 3801495
|
| 2. |
21514422
|
[1] |
Gasket
|
Replaced by 22707542
|
| 2. |
22707542
|
[1] |
Gasket
|
|
| 3. |
993806
|
[4] |
Stud
|
|
| 4. |
994905
|
[4] |
Spacer sleeve
|
|
| 5. |
994628
|
[4] |
Flange nut
|
|
| 6. |
21160750
|
[1] |
Pressure hose
|
|
| 7. |
190714
|
[1] |
Hollow screw
|
|
| 8. |
976931
|
[2] |
Gasket
|
|
| 9. |
949853
|
[1] |
Flange screw
|
|
| 10. |
20526428
|
[1] |
Sealing ring
|
|
| 11. |
1266870
|
[1] |
Fuel hose
|
L=720mm
|
| 12. |
1266870
|
[1] |
Fuel hose
|
L=280mm
|
| 13. |
3819161
|
[3] |
Solenoid valve
|
|
| 14. |
975269
|
[4] |
Hose clamp
|
|
| 15. |
20711293
|
[1] |
Tube
|
|
| 16. |
862832
|
[1] |
Cable tie
|
|
| 17. |
21408944
|
[1] |
Cooling hose
|
|
| 18. |
941686
|
[3] |
Hollow screw
|
|
| 19. |
20852765
|
[6] |
Sealing ring
|
|
| 20. |
21349016
|
[1] |
Cooling hose
|
|
| 21. |
21392863
|
[1] |
Adapter
|
|
| 22. |
968559
|
[2] |
O-ring
|
|
| 23. |
21135696
|
[1] |
Oil return pipe
|
|
| 24. |
8148729
|
[1] |
Connector
|
|
| 25. |
470993
|
[1] |
Gasket
|
|
| 26. |
469601
|
[1] |
Rubber moulding
|
|
| 27. |
469543
|
[1] |
Pipe flange
|
|
| 28. |
984738
|
[2] |
Flange screw
|
|
| 29. |
984733
|
[1] |
Flange screw
|
|
| 30. |
1546531
|
[1] |
Lock brace
|
|
| 31. |
1547255
|
[1] |
Sealing ring
|
|
| 32. |
21853085
|
[1] |
Seal
|
SN 2013369749-
|
| 33. |
21756649
|
[1] |
V-clamp
|
|
| 34. |
23029715
|
[1] |
Gasket
|
Included in Turbocharger
|
