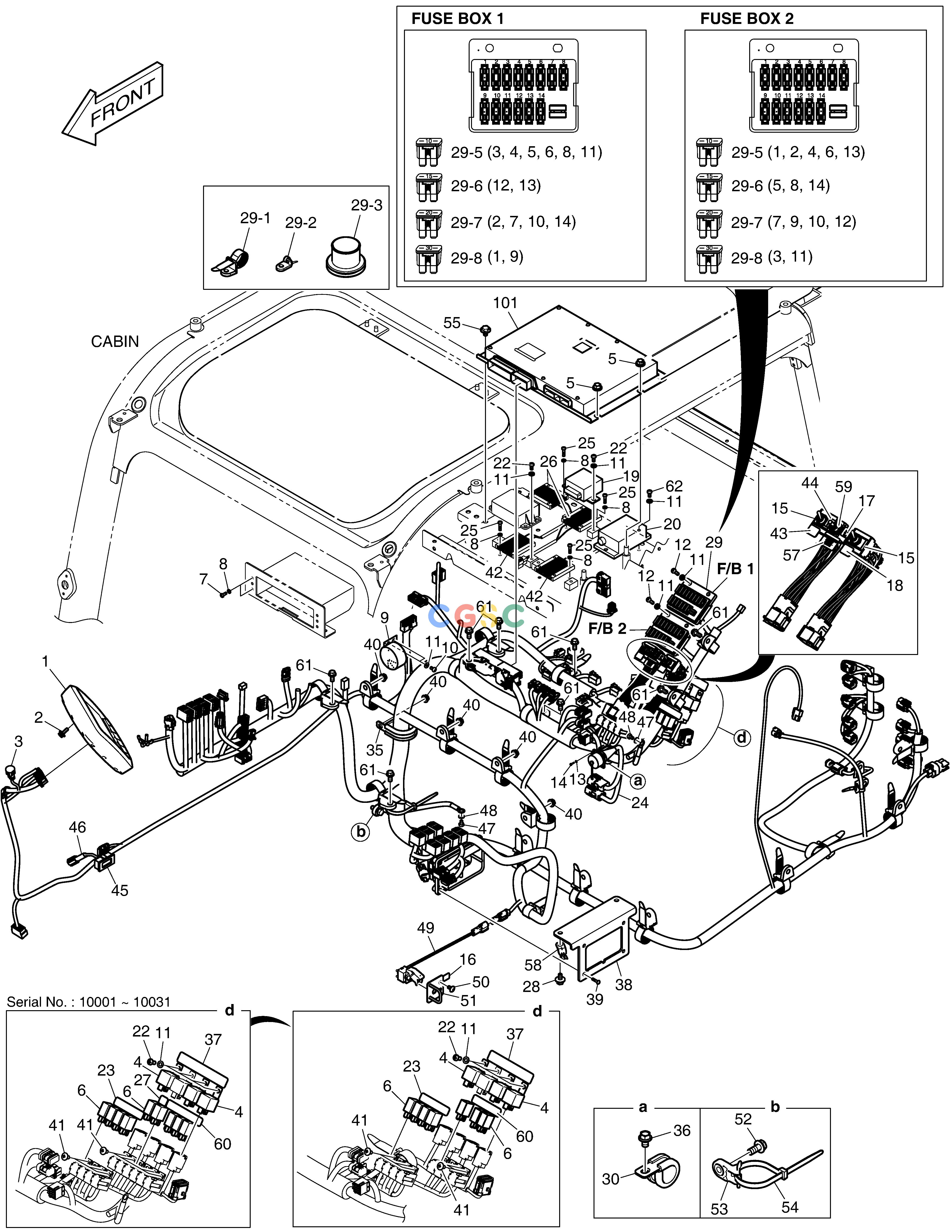

斗山零件查询ELECTRIC PARTS - CABIN DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
429 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02447G
|
[-] |
|
|
| -. |
300619-02447E
|
[-] |
|
|
| 1. |
300426-00164
|
[1] |
|
|
| 10. |
S3450943
|
[2] |
SCREW
|
|
| 101. |
300611-00477
|
[1] |
|
|
| 101. |
300611-00477A
|
[1] |
|
|
| 11. |
S5102303
|
[16] |
. WASHER
|
|
| 12. |
S3450983
|
[4] |
SCREW
|
|
| 13. |
S5100003
|
[4] |
WASHER
|
|
| 14. |
S3450343
|
[4] |
SCREW
|
|
| 15. |
301421-00004
|
[2] |
|
|
| 16. |
K1004425
|
[1] |
PLATE;NAME
|
|
| 17. |
K1004427
|
[1] |
PLATE,NAME
|
|
| 18. |
K1004426
|
[1] |
PLATE,NAME
|
|
| 19. |
300611-00271A
|
[1] |
CONTROLLER,WIPER
|
|
| 2. |
DS0025056
|
[4] |
BOLT
|
|
| 20. |
300612-00001B
|
[1] |
|
|
| 22. |
S3450953
|
[8] |
SCREW
|
|
| 23. |
K1052850D38
|
[1] |
|
|
| 24. |
310207-00708
|
[1] |
HARNESS
|
|
| 25. |
S3450863
|
[8] |
SCREW
|
|
| 26. |
300645-00017
|
[2] |
|
|
| 27. |
950209-05169
|
[1] |
|
|
| 28. |
DS0025033
|
[2] |
BOLT
|
|
| 29. |
310207-03406A
|
[1] |
|
|
| 29-1. |
120402-00439
|
[1] |
CLIP
|
|
| 29-2. |
120402-00440
|
[1] |
CLIP
|
|
| 29-3. |
2160-1227D20
|
[1] |
BUSHING;RUBBER
|
|
| 29-5. |
2527-1016
|
[11] |
FUSE,BLADE 10A
|
|
| 29-6. |
2527-1017
|
[5] |
FUSE,BLADE 15A
|
|
| 29-7. |
2527-1018
|
[8] |
FUSE,BLADE 20A
|
|
| 29-8. |
2527-1025
|
[4] |
FUSE,BLADE 30A
|
|
| 3. |
547-00023
|
[1] |
SENSOR
|
|
| 30. |
124-00208D4
|
[1] |
CLIP
|
|
| 35. |
124-00208D11
|
[1] |
CLIP
|
|
| 36. |
K1001029
|
[1] |
BOLT
|
|
| 37. |
950209-04859A
|
[1] |
|
|
| 37. |
950209-04859
|
[1] |
|
|
| 38. |
110433-00288
|
[1] |
|
|
| 39. |
S3641563
|
[4] |
SCREW
|
|
| 4. |
301202-00042
|
[3] |
RELAY
|
|
| 40. |
2121-1305
|
[5] |
NUT
|
|
| 41. |
2120-2166D53
|
[5] |
. SCREW
|
|
| 41. |
2120-2166D53
|
[7] |
. SCREW
|
|
| 42. |
300645-00018
|
[2] |
|
|
| 43. |
950209-01576
|
[1] |
|
|
| 44. |
950209-01577
|
[1] |
|
|
| 45. |
800224-00011
|
[1] |
METER,HOUR
|
|
| 46. |
530-00434B
|
[1] |
HARNESS,HOUR METER
|
|
| 47. |
S0508453
|
[2] |
BOLT
|
|
| 48. |
S5010513
|
[2] |
WASHER
|
|
| 49. |
301421-00047
|
[1] |
|
|
| 5. |
D913109
|
[2] |
|
|
| 50. |
2120-2166D52
|
[2] |
. BOLT
|
|
| 51. |
250201-02217
|
[1] |
|
|
| 52. |
DS0025049
|
[1] |
BOLT M8x1.25x25
|
|
| 53. |
110420-00330
|
[1] |
BRACKET
|
|
| 54. |
310101-00035
|
[1] |
TIE,CABLE
|
|
| 55. |
DS0025014
|
[2] |
BOLT
|
|
| 57. |
950209-05155
|
[1] |
|
|
| 58. |
110406-02760
|
[1] |
|
|
| 59. |
301421-00049
|
[1] |
|
|
| 6. |
K1053326
|
[7] |
RELAY
|
|
| 6. |
K1053326
|
[9] |
RELAY
|
|
| 60. |
950209-04676A
|
[1] |
|
|
| 60. |
950209-05586
|
[1] |
|
|
| 61. |
120106-00596
|
[9] |
BOLT
|
|
| 62. |
S3450973
|
[2] |
SCREW M6X1.0X16
|
|
| 7. |
S3450833
|
[4] |
BOLT
|
|
| 8. |
S5100203
|
[12] |
WASHER
|
|
| 9. |
2516-1116
|
[1] |
BUZZER
|
|
