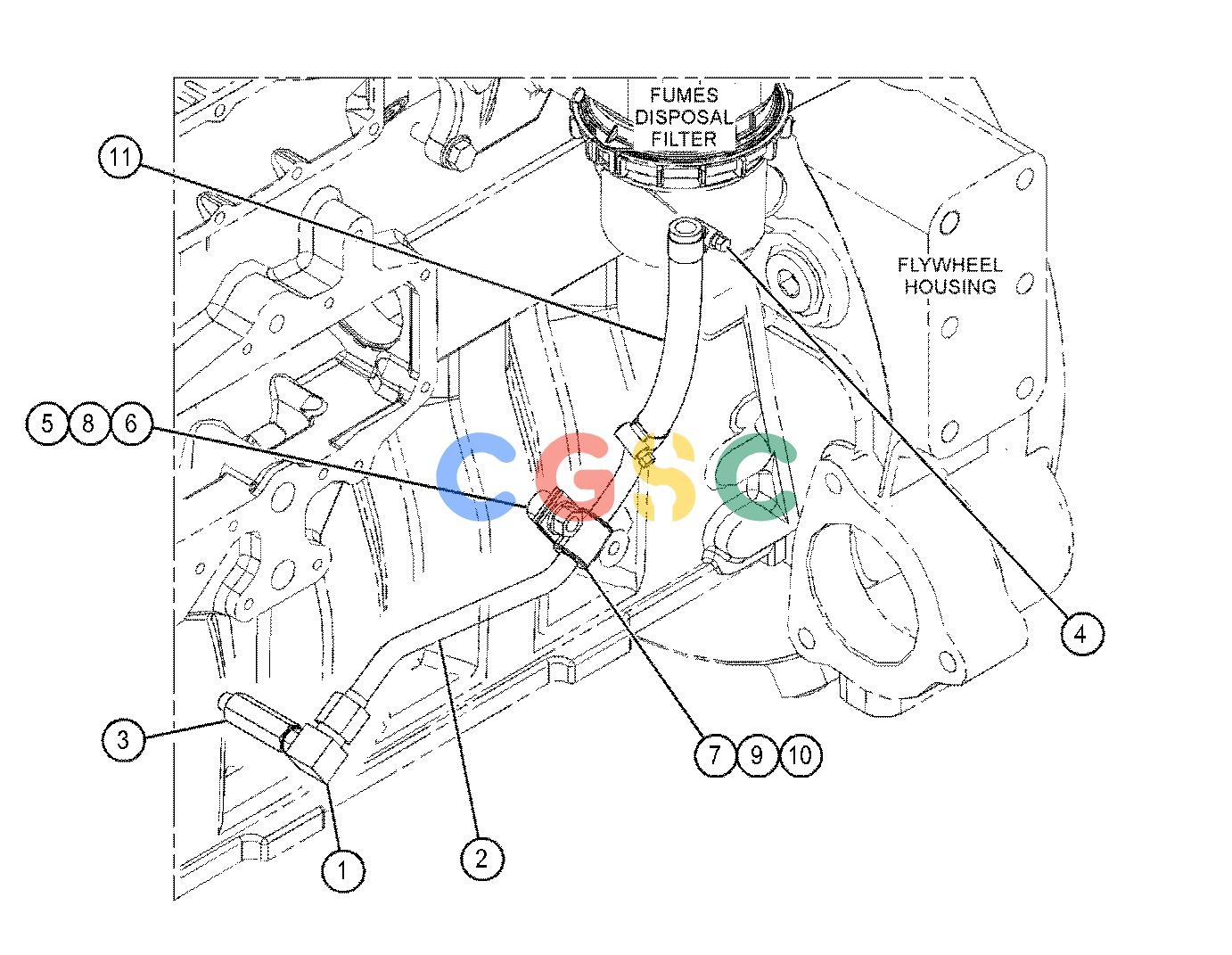

卡特零件查询（725C） 444-6282: FUMES DISPOSAL GP
广数供应链运营团队, 14 02月, 2025，浏览：
314 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 348-9705 | [1] | VALVE AS-CHECK | |
| | 214-7566 | [1] | SEAL-O-RING | |
| 2. | 357-7404C | [1] | TUBE AS-OIL | |
| 3. | 396-0378 | [1] | ADAPTER AS | |
| | 164-7900 | [1] | ADAPTER | |
| | 214-7566 | [1] | SEAL-O-RING | |
| 4. | 109-1145 | [2] | CLAMP-HOSE | |
| 5. | 171-4364C | [1] | SPACER(11X19X11.5-MM THK) | |
| 6. | 2Y-5829M | [1] | NUT(M10X1.5-THD) | |
| 7. | 4P-7233C | [1] | GROMMET | |
| 8. | 6V-5839C | [1] | WASHER(11X21X2.5-MM THK) | |
| 9. | 8T-1887C | [1] | CLIP(SLOT) | |
| 10. | 8T-1888C | [1] | CLIP(TAB) | |
| 11. | 423-1983CG | | HOSE(7.9-IN) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | G | | ORDER BY THE INCH |
| | M | | METRIC PART |
