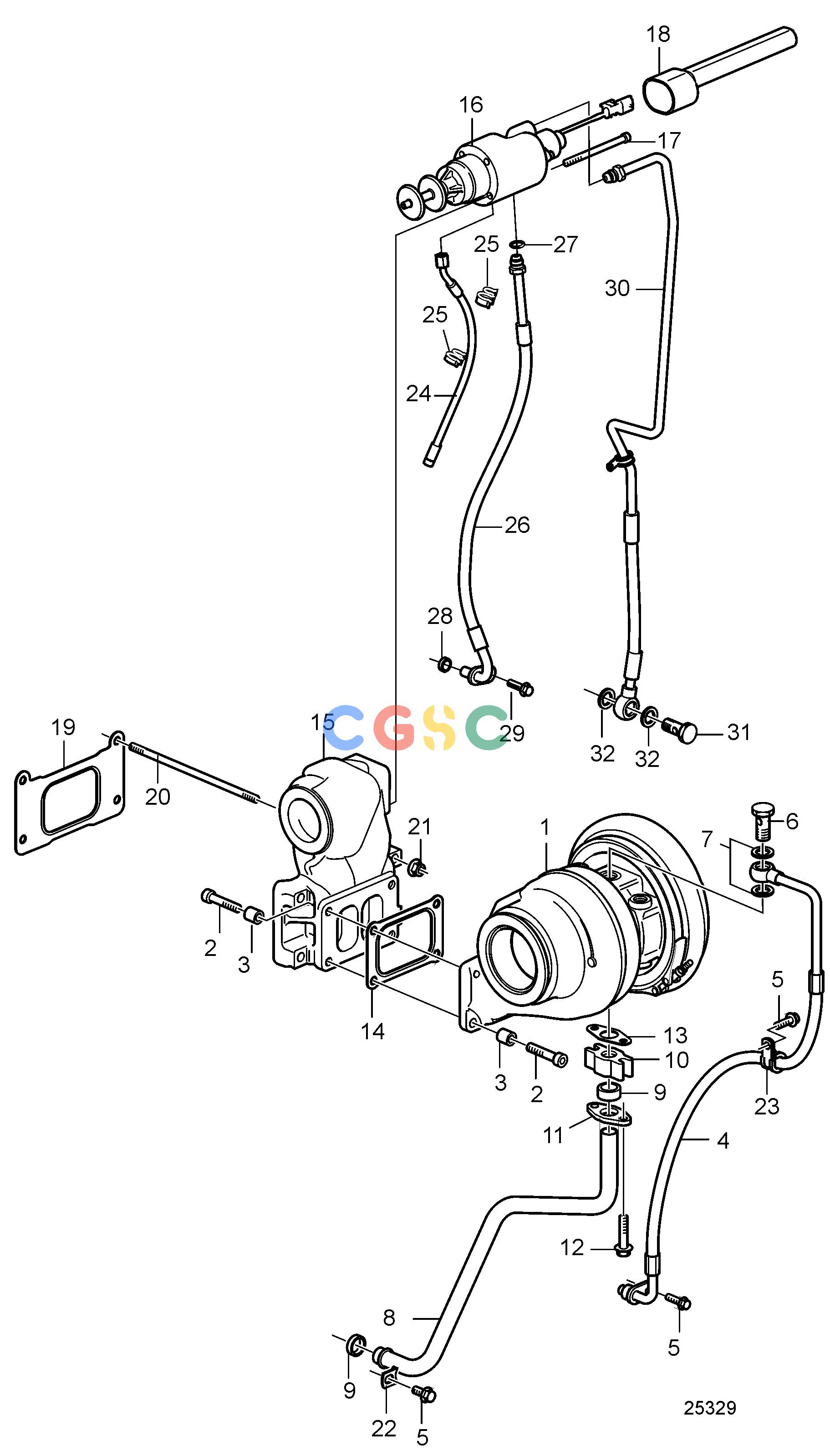

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHIntake and Exhaust SystemTurbocharger, Front. Wastegate Valve. SN -2013458048EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1033 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801317
|
[1] |
Turbocharger
|
|
| 1. |
|
|
|
|
| 2. |
994623
|
[4] |
Six point screw
|
|
| 3. |
994627
|
[4] |
Spacer sleeve
|
|
| 4. |
3889668
|
[1] |
Pressure hose
|
|
| 5. |
984733
|
[3] |
Flange screw
|
|
| 6. |
190714
|
[1] |
Hollow screw
|
|
| 7. |
11998
|
[2] |
Gasket
|
|
| 8. |
3889670
|
[1] |
Oil return pipe
|
|
| 9. |
469601
|
[2] |
Rubber moulding
|
|
| 10. |
8148729
|
[1] |
Connector
|
|
| 11. |
469543
|
[1] |
Pipe flange
|
|
| 12. |
984738
|
[2] |
Flange screw
|
|
| 13. |
470993
|
[1] |
Gasket
|
|
| 14. |
21514422
|
[1] |
Gasket
|
|
| 15. |
21448582
|
[1] |
Valve housing
|
|
| 16. |
22298262
|
[1] |
By-pass valve
|
|
| 17. |
|
|
|
|
| 18. |
21253174
|
[1] |
Tube
|
|
| 19. |
21424550
|
[1] |
Gasket
|
|
| 20. |
994624
|
[4] |
Stud
|
|
| 21. |
1543499
|
[4] |
Flange nut
|
|
| 22. |
1546531
|
[1] |
Lock brace
|
|
| 23. |
949747
|
[1] |
Clamp
|
|
| 24. |
21310830
|
[1] |
Drain pipe
|
SN-20131023017
|
| 25. |
3545508
|
[2] |
Retainer
|
SN-20131023017
|
| 26. |
21349349
|
[1] |
Oil hose
|
Replaced by 22961305
|
| 26. |
22961305
|
[1] |
Oil hose
|
|
| 27. |
976971
|
[1] |
O-ring
|
|
| 28. |
21940610
|
[1] |
Sealing ring
|
|
| 29. |
949853
|
[1] |
Flange screw
|
|
| 30. |
3889673
|
[1] |
Oil return pipe
|
|
| 31. |
190714
|
[1] |
Hollow screw
|
|
| 32. |
976931
|
[2] |
Gasket
|
|
