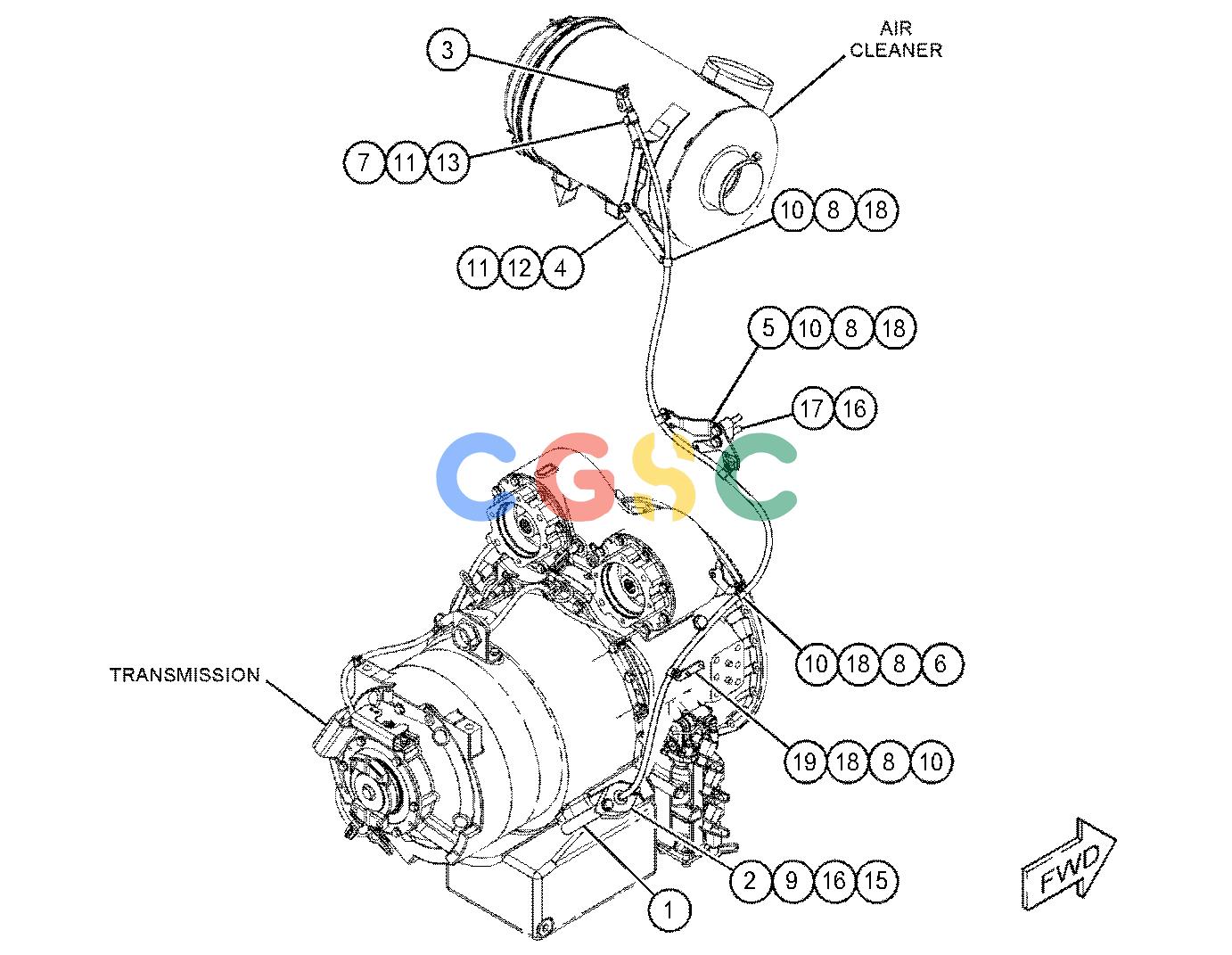

卡特零件查询（725C） 436-2092: GAUGE GP-OIL LEVEL (DIPSTICK)
广数供应链运营团队, 14 02月, 2025，浏览：
963 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 191-5250 | [1] | TUBE | |
| 2. | 436-2093 | [1] | TUBE AS | |
| 3. | 436-2094 | [1] | GAUGE AS-OIL LEVEL (DIPSTICK) | |
| 4. | 436-2095 | [1] | BRACKET AS | |
| | 159-9539M | [1] | NUT-WELD(M6X1-THD) | |
| | 159-9541M | [1] | NUT-WELD(M10X1.5-THD) | |
| 5. | 453-4246 | [1] | BRACKET AS | |
| | 7T-1099 | [1] | LINK | |
| | 159-9539M | [3] | NUT-WELD(M6X1-THD) | |
| 6. | 436-2100 | [1] | BRACKET AS | |
| | 159-9539M | [1] | NUT-WELD(M6X1-THD) | |
| 7. | 3U-2752 | [1] | CLIP(LOOP) | |
| 8. | 5C-9553M | [7] | BOLT(M6X1X16-MM) | |
| 9. | 5F-8000 | [1] | SEAL-O-RING | |
| 10. | 8J-1256 | [5] | CLIP(LOOP) | |
| 11. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 12. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 13. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 15. | 8T-4184M | [2] | BOLT(M12X1.75X45-MM) | |
| 16. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 17. | 8T-4648M | [2] | BOLT(M12X1.75X70-MM) | |
| 18. | 9X-8256 | [7] | WASHER(6.6X12X2-MM THK) | |
| 19. | 449-0134 | [1] | BRACKET AS | |
| | 6V-9632M | [1] | NUT-WELD(M6X1-THD) | |
| | M | | METRIC PART |
