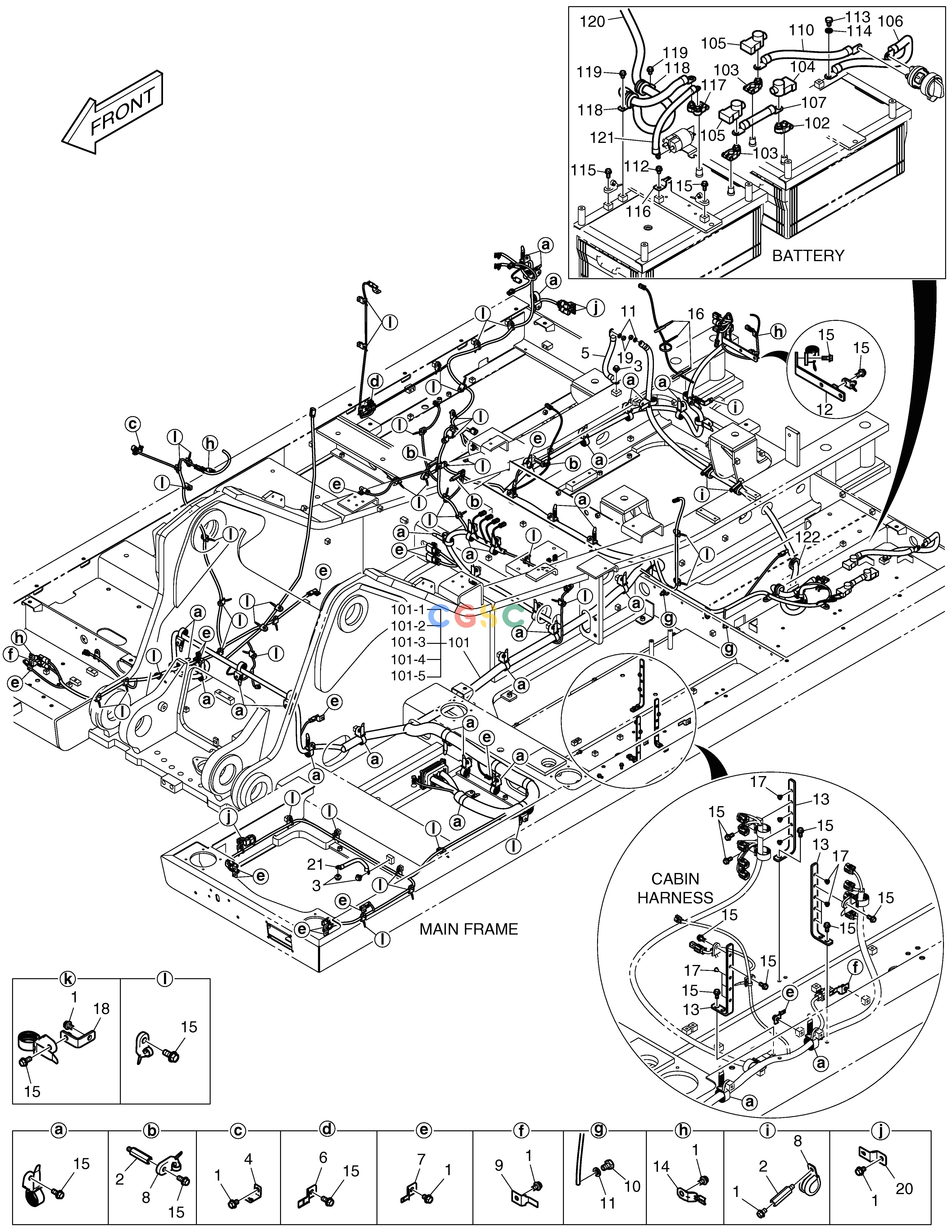

斗山零件查询ELECTRIC WIRING DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
210 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
300619-02800
|
[-] |
|
|
| 1. |
K1001029
|
[25] |
BOLT
|
|
| 10. |
S0511653
|
[2] |
BOLT
|
|
| 101. |
310207-03340B
|
[1] |
|
|
| 101-1. |
2548-1027
|
[1] |
DIODE
|
|
| 101-2. |
K1000814
|
[1] |
DIODE
|
|
| 101-3. |
K1000815
|
[2] |
DIODE
|
|
| 101-4. |
120402-00439
|
[1] |
CLIP
|
|
| 101-5. |
120402-00440
|
[1] |
CLIP
|
|
| 102. |
2550-1014D1
|
[1] |
TERMINAL,BATTERY(+)
|
|
| 103. |
2550-1014D2
|
[2] |
TERMINAL,BATTERY(-)
|
|
| 104. |
2160-1212
|
[1] |
CAP,BATT. TML(+)
|
|
| 105. |
2160-1213
|
[2] |
CAP,BATT. TML(-)
|
|
| 106. |
2553-1275D132
|
[1] |
|
|
| 107. |
310203-05298
|
[1] |
|
|
| 11. |
S5102603
|
[4] |
. WASHER
|
|
| 110. |
DS4531160
|
[1] |
|
|
| 112. |
K1001029
|
[1] |
BOLT
|
|
| 113. |
S0511653
|
[1] |
BOLT
|
|
| 114. |
S5102603
|
[1] |
. WASHER
|
|
| 115. |
120106-00596
|
[2] |
BOLT
|
|
| 116. |
2197-1661
|
[1] |
BRACKET
|
|
| 117. |
301503-00484
|
[1] |
|
|
| 118. |
124-00208D4
|
[2] |
CLIP
|
|
| 119. |
K1001029
|
[2] |
BOLT
|
|
| 12. |
110433-00341
|
[1] |
|
|
| 120. |
310203-05673
|
[1] |
|
|
| 121. |
DS4531181
|
[1] |
|
|
| 122. |
2160-1004D33
|
[1] |
BUSHING;RUBBER
|
|
| 13. |
110433-00330
|
[3] |
|
|
| 14. |
110406-02760A
|
[3] |
BRACKET
|
|
| 15. |
120106-00596
|
[98] |
BOLT
|
|
| 16. |
310101-00035
|
[3] |
TIE,CABLE
|
|
| 17. |
160-00073A
|
[10] |
CAP
|
|
| 18. |
110406-02165
|
[1] |
|
|
| 19. |
S4012633
|
[2] |
NUT
|
|
| 2. |
2120-2187
|
[5] |
BOLT
|
|
| 20. |
110406-02674
|
[3] |
|
|
| 21. |
2553-1275D39
|
[1] |
CABLE,EARTH
|
|
| 3. |
2120-2196D1
|
[3] |
BOLT;SET M10X1.5X20
|
|
| 4. |
110406-02676
|
[1] |
|
|
| 5. |
2553-1275D127
|
[1] |
|
|
| 6. |
2197-1660
|
[1] |
BRACKET
|
|
| 7. |
2197-1661
|
[16] |
BRACKET
|
|
| 8. |
124-00208D4
|
[2] |
CLIP
|
|
| 9. |
195-02154
|
[2] |
BRACKET
|
|
