神钢零件查询(6D31-T) - MITSUBISHI DIESEL ENGINE - MD200BLC EXCAVATORS (1/06-12/06) (03-005) - AUTOMATIC TIMER (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
202 次

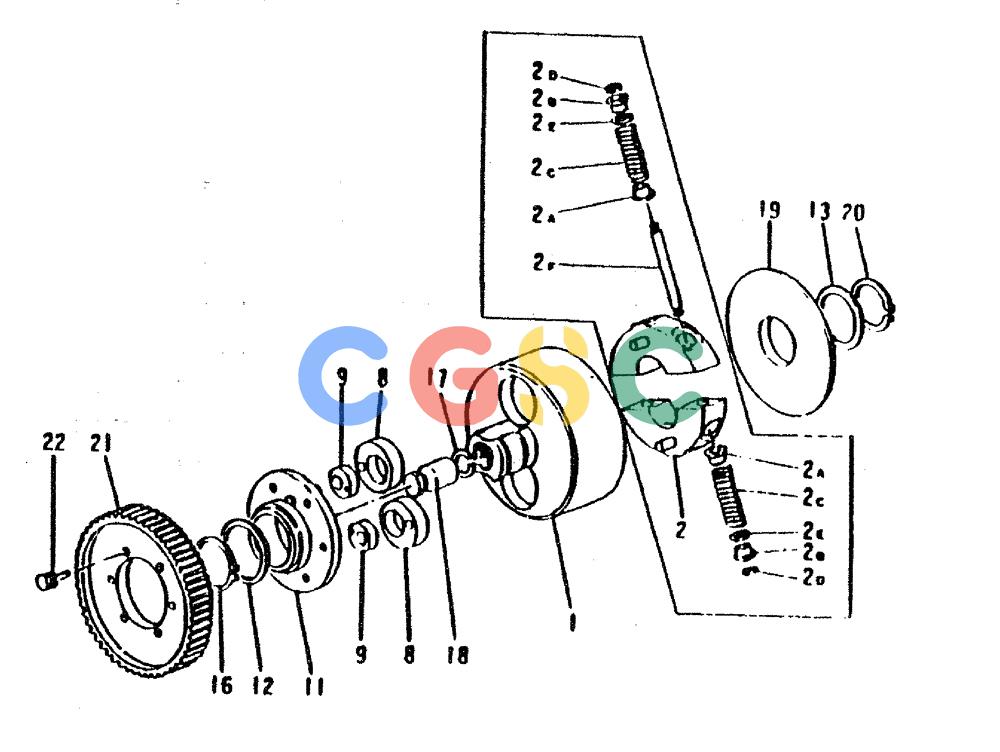

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-22. | VAME723275 | [1] | TIMER | KOBASSY |
| 1. | VAME717660 | [1] | FLANGE, TIMING | |
| 2-2R. | VAME722495 | [1] | FLYWHEEL | KOBASSY |
| 2. | VAME722317 | [2] | FLYWEIGHT | |
| 2A. | VAME717663 | [4] | SEAT, SPG | |
| 2B. | VAME717664 | [4] | SEAT, SPG | |
| 2C. | VAME722494 | [1] | SPRING, TIMER | |
| 2D. | VAME717665 | [4] | RING, SPG | |
| 2E. | VAME717666 | [4] | SHIM T=0.1 | |
| . . | VAME717667 | [1] | T=0.2 | |
| . . | VAME717668 | [1] | T=0.3 | |
| . . | VAME717669 | [1] | T=0.4 | |
| . . | VAME717670 | [1] | T=0.5 | |
| . . | VAME717671 | [1] | T=0.6 | |
| . . | VAME717672 | [1] | T=0.7 | |
| . . | VAME717673 | [1] | T=0.8 | |
| . . | VAME717674 | [1] | T=0.9 | |
| . . | VAME717675 | [1] | T=1.0 | |
| 2F. | VAME717676 | [1] | PIN, PILOT | |
| 8. | VAME716675 | [2] | CAM, ECCENTRIC | |
| 9. | VAME716676 | [2] | CAM, ECCENTRIC | |
| 11. | VAME717679 | [1] | FLANGE | |
| 12. | VAME717680 | [1] | SHIM T=0.10 | |
| . . | VAME717681 | [1] | T=0.12 | |
| . . | VAME717682 | [1] | T=0.14 | |
| . . | VAME717683 | [1] | T=0.16 | |
| . . | VAME717684 | [1] | T=0.18 | |
| . . | VAME717685 | [1] | T=0.90 | |
| . . | VAME717687 | [1] | T=1.30 | |
| . . | VAME717688 | [1] | T=1.50 | |
| . . | VAME717689 | [1] | T=1.70 | |
| 13. | VAME717680 | [1] | SHIM T=0.10 | |
| . . | VAME717686 | [1] | T=1.10 | |
| 16. | VAME717959 | [1] | SNAP RING | KOBRING, SNAP |
| 17. | VAME722171 | [1] | WASHER, SPG | |
| 18. | VAME704482 | [1] | NUT | |
| 19. | VAME717690 | [1] | PLATE | |
| 20. | VAME717959 | [1] | SNAP RING | KOB |
| 21. | VAME716674 | [1] | GEAR | KOB Superseded by part number: VA1562210200 |
| 22. | VAME717960 | [6] | BOLT | |
