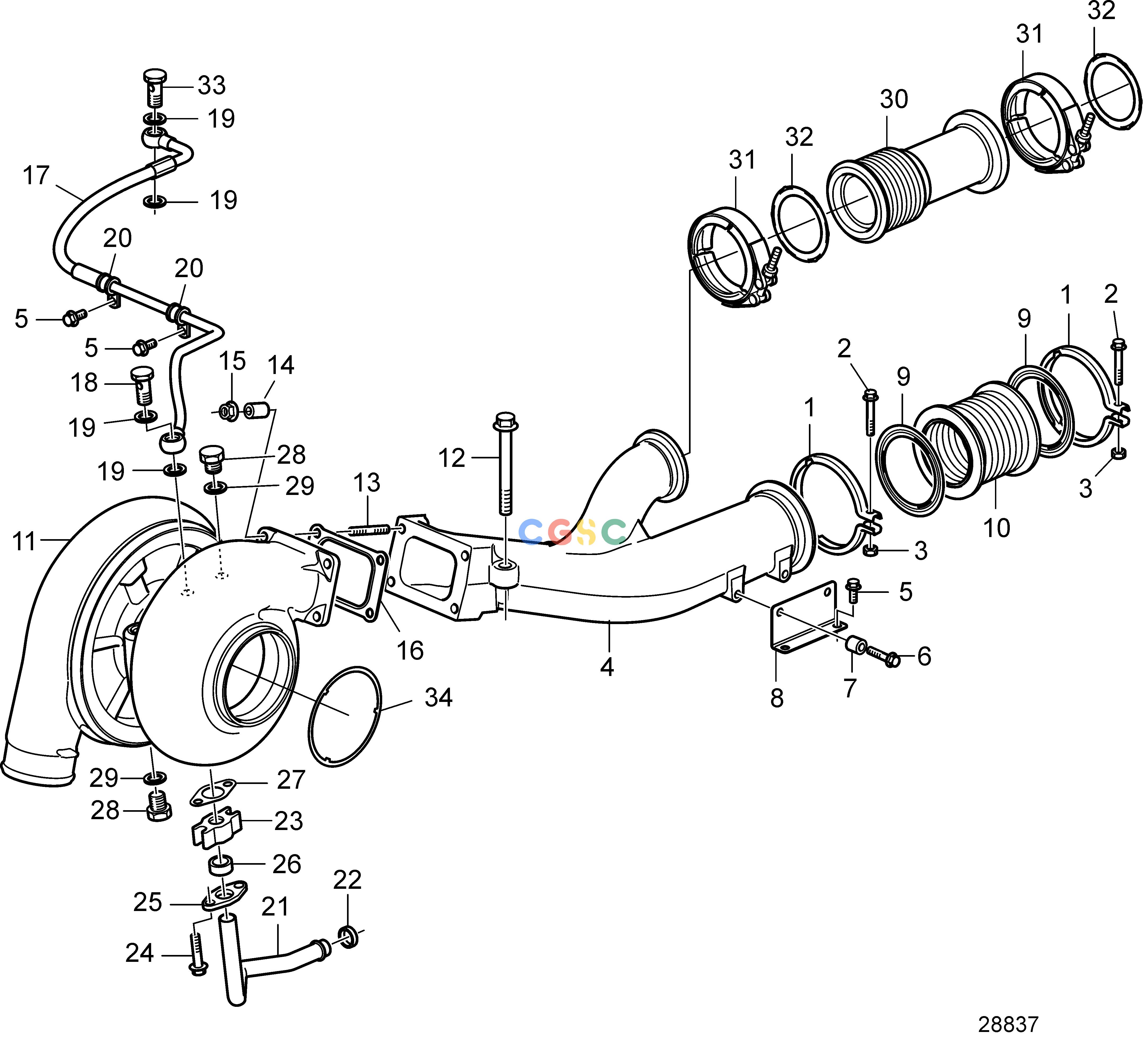

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHIntake and Exhaust SystemTurbocharger, RearEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
947 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21484815
|
[2] |
V-clamp
|
|
| 2. |
973924
|
[2] |
Flange screw
|
|
| 3. |
990940
|
[2] |
Flange nut
|
|
| 4. |
21445382
|
[1] |
Exhaust pipe
|
|
| 5. |
984732
|
[4] |
Flange screw
|
|
| 6. |
994622
|
[2] |
Six point screw
|
|
| 7. |
994626
|
[2] |
Spacer sleeve
|
|
| 8. |
21186665
|
[1] |
Bracket
|
|
| 9. |
21269861
|
[2] |
Gasket
|
|
| 10. |
3840550
|
[1] |
Exhaust pipe
|
|
| 11. |
3801318
|
[1] |
Turbocharger
|
|
| 11. |
|
|
|
|
| 12. |
994625
|
[3] |
Flange screw
|
|
| 13. |
994741
|
[4] |
Stud
|
|
| 14. |
994627
|
[4] |
Spacer sleeve
|
|
| 15. |
994628
|
[4] |
Flange nut
|
|
| 16. |
21514422
|
[1] |
Gasket
|
Replaced by 22707542
|
| 16. |
22707542
|
[1] |
Gasket
|
|
| 17. |
21382624
|
[1] |
Pressure hose
|
Replaced by 22741441
|
| 17. |
22741441
|
[1] |
Pressure hose
|
|
| 18. |
190713
|
[1] |
Hollow screw
|
|
| 19. |
20852765
|
[4] |
Sealing ring
|
|
| 20. |
949746
|
[2] |
Clamp
|
|
| 21. |
21463672
|
[1] |
Oil return pipe
|
|
| 22. |
1547255
|
[1] |
Sealing ring
|
Replaced by 21940615
|
| 22. |
21940615
|
[1] |
Sealing ring
|
|
| 23. |
21252519
|
[1] |
Connector
|
|
| 24. |
984755
|
[2] |
Flange screw
|
|
| 25. |
21252482
|
[1] |
Flange
|
|
| 26. |
469601
|
[1] |
Rubber moulding
|
|
| 27. |
1543360
|
[1] |
Gasket
|
|
| 28. |
960632
|
[2] |
Plug
|
|
| 29. |
11998
|
[2] |
Gasket
|
|
| 30. |
3594232
|
[1] |
Pipe connection
|
|
| 31. |
20755169
|
[2] |
V-clamp
|
|
| 32. |
20841816
|
[2] |
Gasket
|
|
| 33. |
190713
|
[1] |
Hollow screw
|
SN-2013606819 SN2013616469-
|
| 33. |
991046
|
[1] |
Hollow screw
|
SN2013606820-2013616468
|
| 34. |
22869572
|
[1] |
Gasket
|
|
