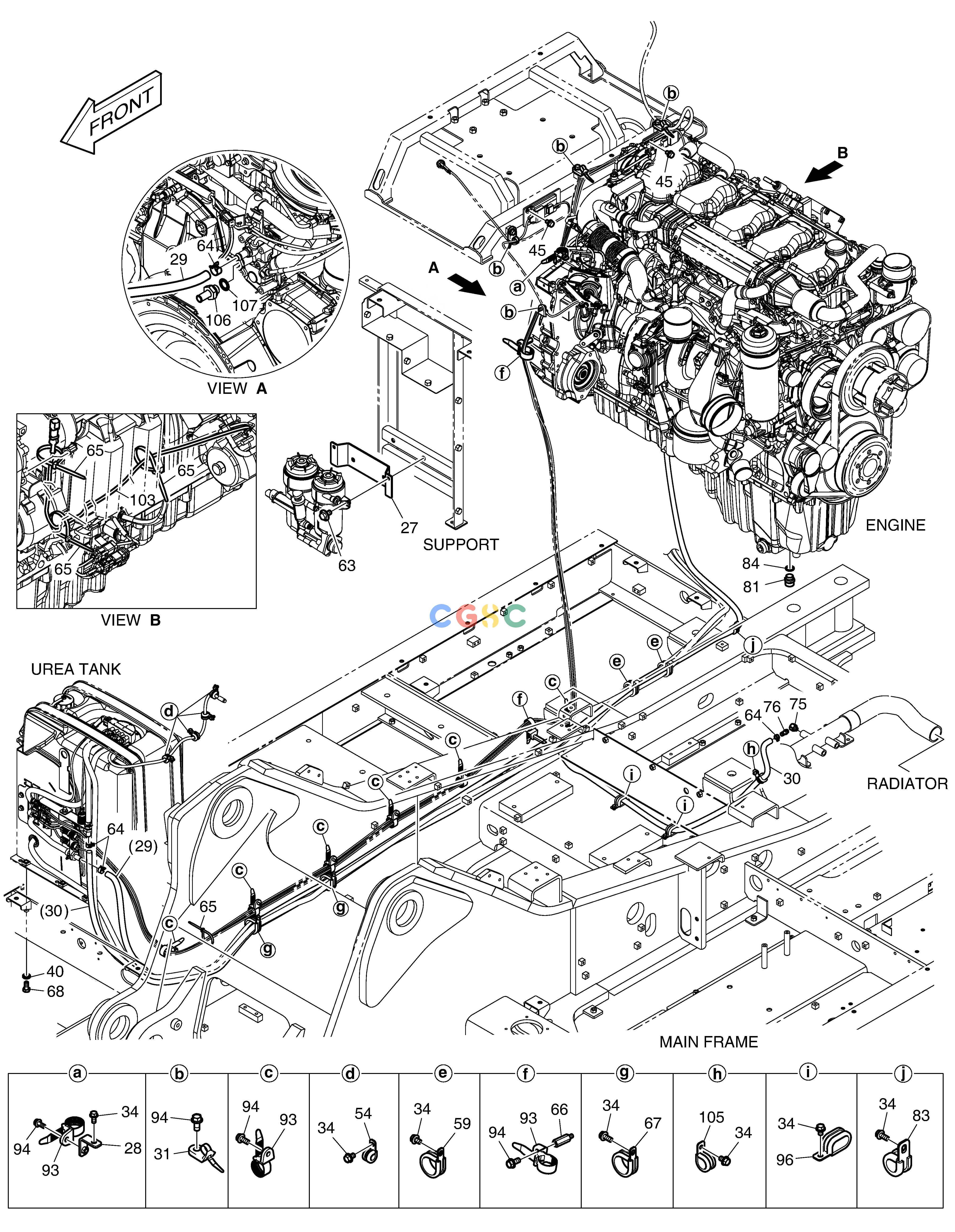

斗山零件查询ENGINE MOUNTING(2) DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
350 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150109-00849
|
[-] |
|
|
| 103. |
310207-03488
|
[1] |
|
|
| 105. |
124-00208D4
|
[1] |
CLIP
|
|
| 106. |
430201-01130
|
[1] |
|
|
| 107. |
401106-00338
|
[1] |
|
|
| 27. |
110406-02158A
|
[1] |
|
|
| 28. |
110406-02165
|
[1] |
|
|
| 29. |
DS2081144
|
[1] |
|
|
| 30. |
DS2081143
|
[1] |
|
|
| 31. |
120402-00440
|
[1] |
CLIP
|
|
| 34. |
K1001029
|
[14] |
BOLT
|
|
| 40. |
K1015638
|
[6] |
WASHER;HARDENED
|
|
| 45. |
DS0025054
|
[4] |
BOLT M8x1.25x20
|
|
| 54. |
124-00208D2
|
[4] |
CLAMP
|
|
| 59. |
124-00208D7
|
[2] |
CLIP
|
|
| 63. |
DS0025015
|
[2] |
BOLT
|
|
| 64. |
DS2807026
|
[4] |
|
|
| 64. |
S8470028
|
[4] |
CLAMP
|
|
| 65. |
310101-00035
|
[4] |
TIE,CABLE
|
|
| 66. |
2120-2187
|
[2] |
BOLT
|
|
| 67. |
124-00208D11
|
[2] |
CLIP
|
|
| 68. |
S0518266
|
[6] |
BOLT
|
|
| 75. |
2181-1161A
|
[1] |
ADAPTER
|
|
| 76. |
DS2228001
|
[1] |
|
|
| 77. |
124-00208D3
|
[1] |
CLIP
|
|
| 81. |
410107-00010
|
[1] |
|
|
| 83. |
124-00208D3
|
[1] |
CLIP
|
|
| 84. |
S8180381
|
[1] |
|
|
| 93. |
120402-00439
|
[9] |
CLIP
|
|
| 94. |
120106-00596
|
[12] |
BOLT
|
|
| 96. |
124-00209D4
|
[2] |
CLIP
|
|
