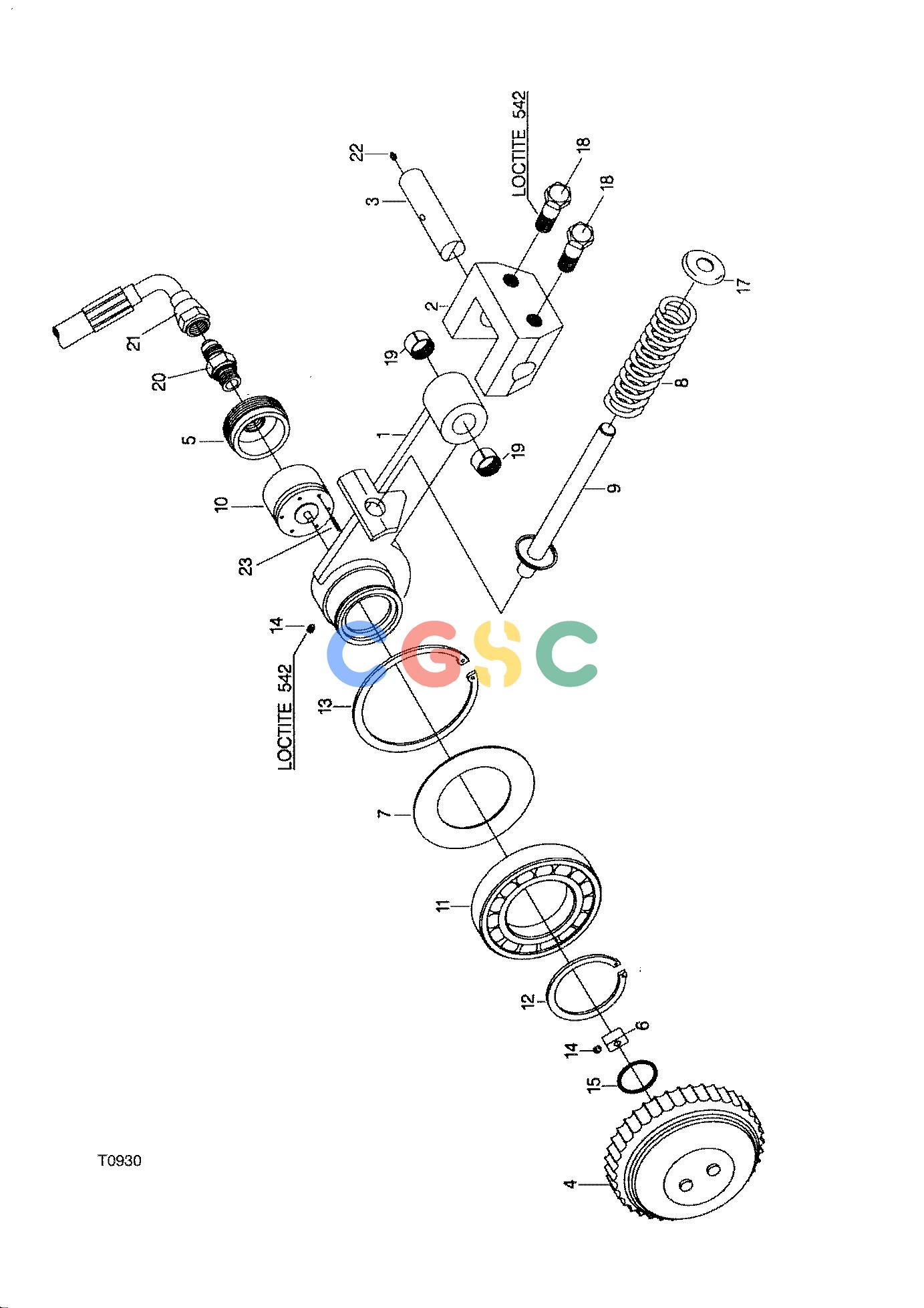

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE MEASURING DEVICE F045006 11 10 T0930 [T0930]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
524 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
F047706
|
[1] |
Frame
|
|
| 2. |
F047707
|
[1] |
BEARING TUBE
|
|
| 3. |
F047708
|
[1] |
Shaft
|
|
| 4. |
F047709
|
[1] |
MEASURING ROLL
|
|
| 5. |
F047710
|
[1] |
COVER SLEEVE
|
|
| 6. |
F047711
|
[1] |
Clutch
|
|
| 7. |
F047712
|
[1] |
PROTECTION PLATE
|
|
| 8. |
F003259
|
[1] |
Spring
|
|
| 9. |
F047713
|
[1] |
SPRING GUIDE
|
|
| 10. |
F013227
|
[1] |
LENGTH SENSOR
|
|
| 11. |
F047714
|
[1] |
Bearing
|
|
| 12. |
F047715
|
[1] |
CIRCLIP
|
|
| 13. |
F035887
|
[1] |
CIRCLIP
|
|
| 14. |
F003466
|
[2] |
STOP SCREW
|
|
| 15. |
F047690
|
[1] |
O-Ring
|
|
| 17. |
F047716
|
[1] |
Washer
|
|
| 18. |
F003550
|
[2] |
Screw
|
|
| 19. |
F046323
|
[2] |
BEARING BUSHING
|
|
| 20. |
F031911
|
[1] |
CONNECTION
|
|
| 21. |
F047717
|
[1] |
HOSE-ASSY
|
|
| 22. |
F003727
|
[1] |
GREASE NIPPLE
|
|
| 23. |
F003614
|
[1] |
Spring Pin
|
|
