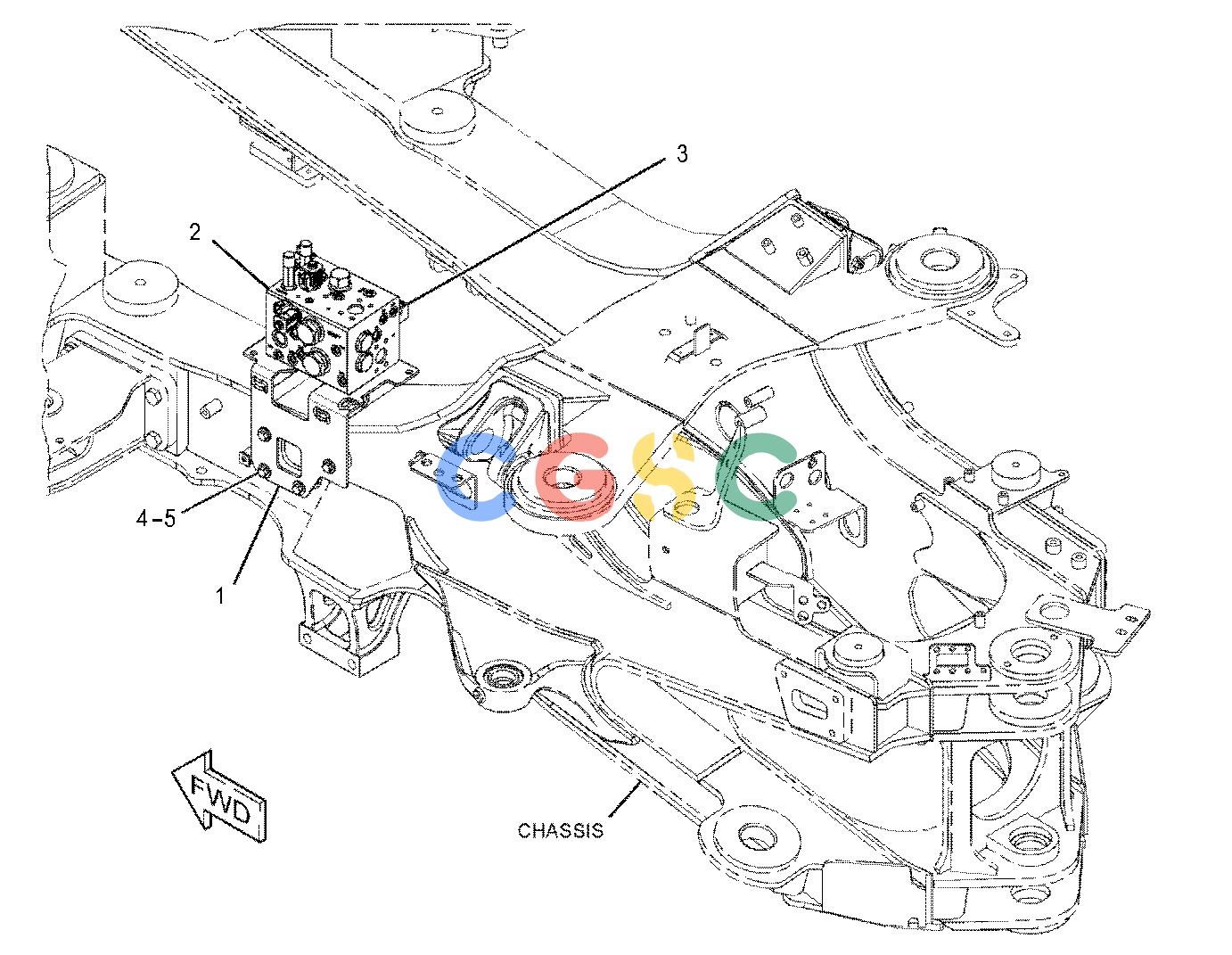

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 433-8131 | [1] | BRACKET AS | |
| 7T-1099 | [3] | LINK | ||
| 2. | 437-1480Y | [1] | VALVE GP-COMBINATION | |
| 3. | 321-8657 | [1] | ELBOW AS | |
| 6V-8076 | [1] | ELBOW | ||
| 214-7568 | [1] | SEAL-O-RING | ||
| 4. | 5P-1076 | [7] | WASHER-HARD(13.5X30X4-MM THK) | |
| 5. | 8T-4139M | [7] | BOLT(M12X1.75X30-MM) | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
