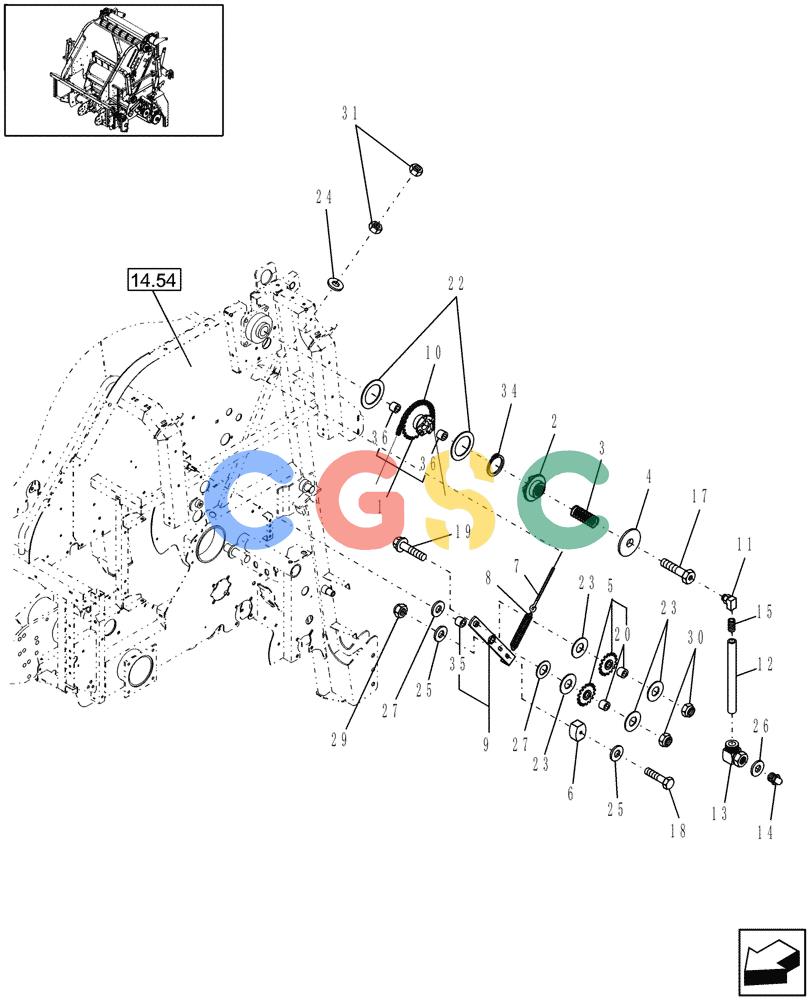

| 1. |
86601369
|
[1] |
SPROCKET
|
NH
& Sprocket, 22T Superseded by part number: 87032323
|
| 2. |
9621888
|
[1] |
CLUTCH
|
NH
Half Superseded by part number: 87028608
|
| 3. |
86640119
|
[1] |
SPRING,Compression, 2.438" OD x 4.5" L
|
NH
Compression
|
| 4. |
9829364
|
[1] |
CAP COVER
|
NH
|
| 5. |
NS
|
[2] |
NOT SERVICED
|
BAS
SPROCKET 13T, Plastic, Production Only {87050058}
|
| 5. |
66614
|
[2] |
SPROCKET,RC80, 13T
|
NH
13T, Steel, Service Only Superseded by part number: 84401598
|
| 6. |
86584050
|
[1] |
IDLER
|
NH
Plastic Superseded by part number: 87030996
|
| 7. |
183356
|
[1] |
EYEBOLT,3/8" - 16 x 10" L
|
NH
G2, 3/8"-16 x 10-1/8"
|
| 8. |
86512547
|
[1] |
SPRING,Extension, 1.94" OD x 13 - 1/8" L
|
NH
Extension
|
| 9. |
86582659
|
[1] |
ARM
|
NH
Superseded by part number: 604085, 87655907
|
| 10. |
86545866
|
[1] |
CHAIN,80, 144 Links x 25.4mm = 3657.6mm
|
NH
RC80, HD, Chrome, 1"-pitch, 144 Pitches, Includes: Ref. 16
|
| 11. |
691873
|
[1] |
ELBOW,90 Degree Elbow, 1/8" Male NPT x 1/8" Female NPT
|
NH
90°, Swivel Superseded by part number: 219-416
|
| 12. |
87014413
|
[1] |
TUBE,4.80 mm OD x 1850 mm L
|
PA
Plastic, 3/16" x 4.9', Lube Line
|
| 13. |
48564
|
[1] |
90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT
|
NH
Male, Includes: Ref. 13362 & 13367
|
| 14. |
86050275
|
[1] |
LUBE NIPPLE
|
NH
1/8" NPT Female
|
| 15. |
11787
|
[1] |
FITTING,3/8"-24 Fem x 1/8" NPT
|
NH
Includes: Ref. 37 & 38 Superseded by part number: 84341119, 84341119, 87426476
|
| 16. |
86537459
|
[1] |
LINK,25.4mm Pitch
|
NH
|
| 17. |
86618213
|
[1] |
SPECIAL BOLT,M12 x 40mm, Drilled
|
NH
Cap, HH, M12 x 1.75 x 40, W/ Hole Drilled Lenghwise
|
| 18. |
814-12080
|
[2] |
BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8
|
CAS
Superseded by part number: 43158
|
| 19. |
9804273
|
[1] |
BOLT,Hex, M16 x 60mm, Cl 8.8
|
NH
|
| 20. |
144819C91
|
[2] |
BEARING
|
IH
Superseded by part number: 149261C91
|
| 22. |
9808110
|
[1] |
WASHER,46mm ID x 60mm OD x 1.64mm Thk
|
NH
Hardened, M45
|
| 23. |
495-21069
|
[1] |
WASHER,5/8"
|
CAS
Superseded by part number: 80299
|
| 24. |
495-21044
|
[1] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 25. |
495-21056
|
[4] |
WASHER,1/2"
|
CAS
Superseded by part number: 72187265, 80700
|
| 26. |
495-11041
|
[1] |
WASHER,0.406" ID x 0.812" OD x 0.065" W
|
CAS
Superseded by part number: 87016
|
| 27. |
26402
|
[1] |
WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk
|
NH
(.060" Thk, 1-1/2" OD)
|
| 29. |
832-46412
|
[1] |
NUT,M12 x 1.75, Cl 8
|
CAS
Superseded by part number: 100038
|
| 30. |
832-46416
|
[2] |
NUT,M16 x 2, Cl 8
|
CAS
Superseded by part number: 86000441
|
| 31. |
425-106
|
[2] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 34. |
100-11162
|
[1] |
SNAP RING,#162, Ext
|
CAS
Superseded by part number: 45440
|
| 35. |
84019797
|
[1] |
SLEEVE,25mm ID x 28mm OD x 25mm L
|
NH
Superseded by part number: 604085
|
| 36. |
86601368
|
[2] |
BUSHING
|
NH
Superseded by part number: 86977429
|
| 37. |
13362
|
[1] |
SLEEVE,Compression, 3/16" Tube
|
GI
|
| 38. |
13367
|
[1] |
NUT,3/8" - 24
|
GI
|
