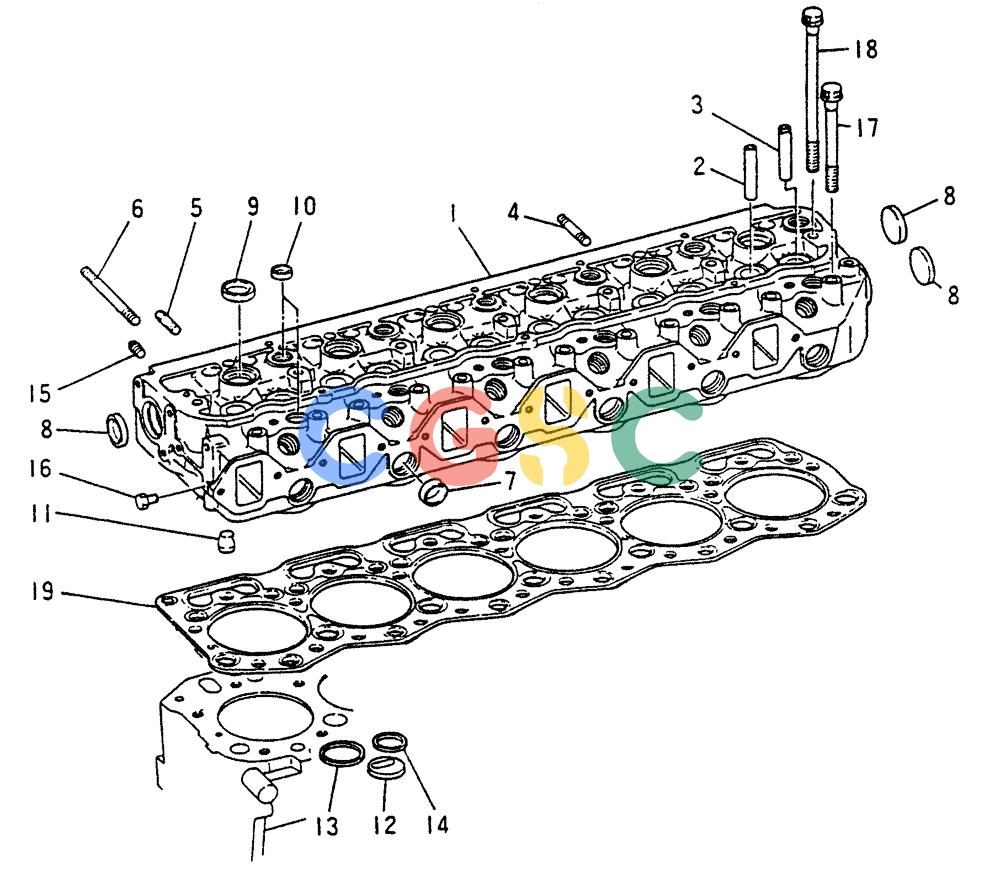

神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-006) - CYLINDER HEAD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
785 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONHEAD, CYL |
| 2. | VAME001179 | [6] | VALVE GUIDE | KOBGUIDE, VALVE INLET |
| 3. | VAME001188 | [6] | VALVE GUIDE | KOBGUIDE, VALVE EXH |
| 4. | VAMF407006 | [6] | SCREW | KOBSTUD, FOR EXH MANIF 10X25 |
| 5. | VAMH002127 | [11] | STUD | KOBSTUD, FOR WATER OUTLET PIPE 8X40 |
| 6. | VAMH002106 | [1] | STUD | KOBSTUD, FOR WATER OUTLET PIPE 8X70 |
| 7. | VAMS666136 | [6] | PLUG | KOBCAP, SEALING 22 |
| 8. | VAMS666140 | [3] | PLUG | KOBCAP, SEALING 35 |
| 9. | VAMS666139 | [6] | CAP | KOBCAP, SEALING 30 |
| 10. | VAMS666136 | [12] | PLUG | KOBCAP, SEALING 22 |
| 11. | VAME011003 | [7] | DIRECTOR | |
| 12. | VAME001080 | [6] | JET | KOBCOMBUSTION CHAMBER STD |
| 12. | VAME001081 | [1] | JET, COMBUSTION CHAMBER OS 0.03 | |
| 13. | VAME001071 | [6] | VALVE INSERT, SEAT INLET | VALVE INSERT, SEAT INLET |
| 13. | VAME001133 | [1] | STD INLET VALVE | KOBSTD ENGINE INLET VALVE INSERT, SEAT INLET (SEMI SIZE) |
| 14. | VAME001074 | [6] | INSERT VALVE SEAT EXH | INSERT VALVE SEAT EXH |
| 14. | VAME001075 | [1] | INSERT | KOBVALVE SEAT EXH (SEMI SIZE) |
| 15. | VAMH037237 | [1] | PLUG | KOBPLUG,TAPER |
| 16. | VAMH000518 | [1] | BOLT BOLT, SEAL 8X12 | BOLT BOLT, SEAL 8X12 |
| 17. | VAME001059 | [18] | SCREW | KOBBOLT, CYL HEAD 12X109 |
| 18. | VAME001060 | [7] | SCREW | KOBBOLT, CYL HEAD 12X164 |
| 19. | VAME001146 | [1] | CYLINDER HEAD GASKET | KOB Superseded by part number: VAME001804 |
