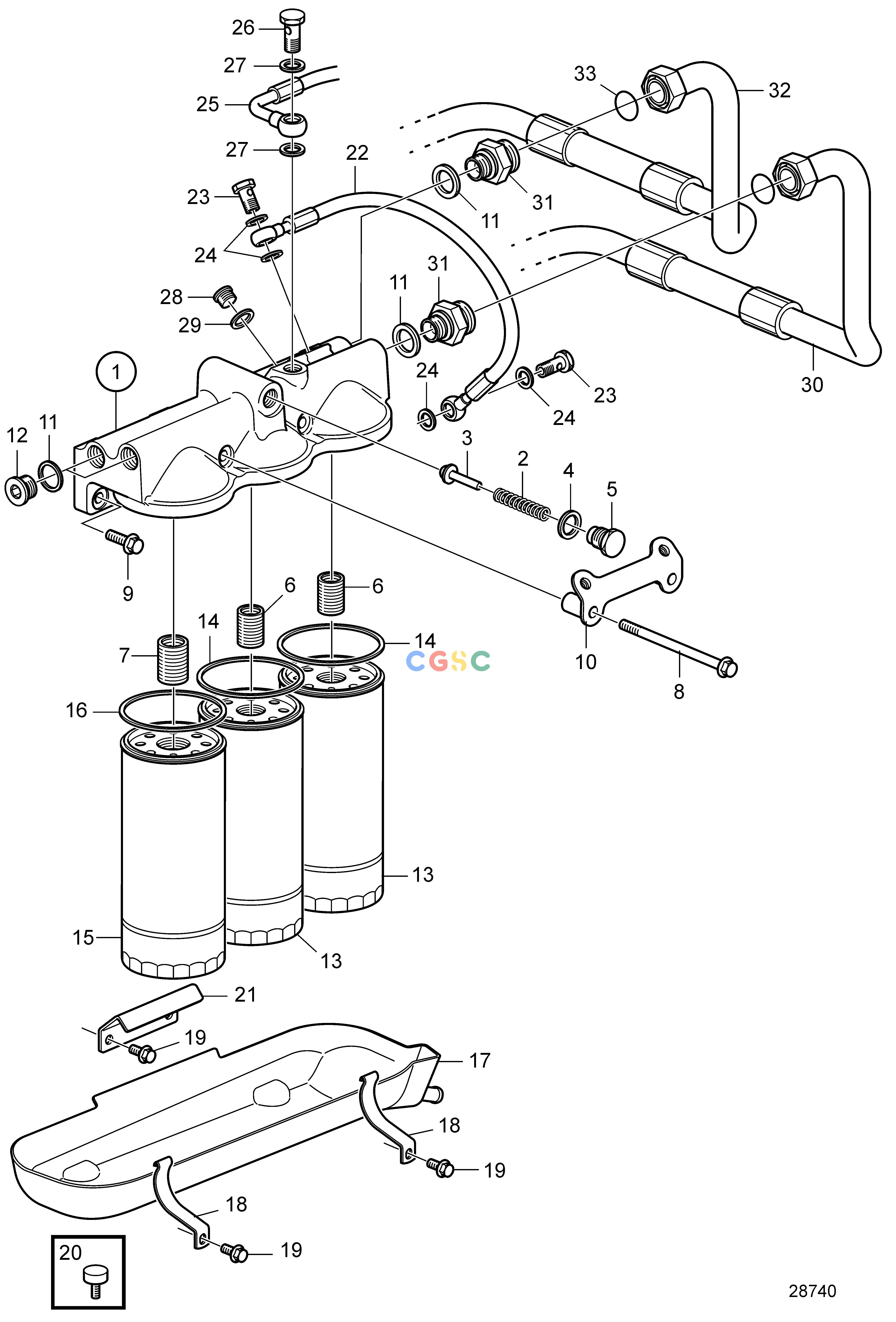

沃尔沃零件查询D13B-A MP; D13B-B MP; D13B-C MP; D13B-D MP; D13B-G MP; D13B-H MP; D13B-J MP; D13B-K MP; D13B-L MP; D13B-M MP; D13B-C MHLubricating SystemOil Filter Housing and Oil Filter SN2013606820-EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
514 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
17427991
|
[1] |
Oil filter housing
|
|
| 2. |
466653
|
[1] |
Compression spring
|
|
| 3. |
471085
|
[1] |
Valve cone
|
|
| 4. |
949410
|
[1] |
O-ring
|
|
| 5. |
17425684
|
[1] |
Plug
|
|
| 6. |
466623
|
[2] |
Nipple
|
|
| 7. |
469904
|
[1] |
Nipple
|
|
| 8. |
984766
|
[2] |
Flange screw
|
|
| 9. |
946472
|
[2] |
Flange screw
|
|
| 10. |
22796769
|
[1] |
Bracket
|
Replaced by 78466794
|
| 10. |
78466794
|
[1] |
Bracket
|
|
| 11. |
982509
|
[4] |
Gasket
|
|
| 12. |
966147
|
[2] |
Plug
|
|
| 13. |
21707133
|
[2] |
Oil filter
|
|
| 14. |
|
|
|
|
| 15. |
21707132
|
[1] |
Oil filter, by-pass
|
Bypass filter
|
| 16. |
|
|
|
|
| 17. |
21113183
|
[1] |
Spill plate
|
|
| 18. |
21205474
|
[2] |
Bracket
|
|
| 19. |
984733
|
[4] |
Flange screw
|
|
| 20. |
21275223
|
[2] |
Rubber stop
|
|
| 21. |
21243266
|
[1] |
Bracket
|
|
| 21. |
22957947
|
[1] |
Bracket
|
For D13C6-A MP
|
| 22. |
21382062
|
[1] |
Oil hose
|
|
| 23. |
991048
|
[2] |
Hollow screw
|
|
| 24. |
20852764
|
[4] |
Sealing ring
|
|
| 25. |
22741441
|
[1] |
Pressure hose, turbo
|
|
| 26. |
190714
|
[1] |
Hollow screw
|
|
| 27. |
20852765
|
[2] |
Sealing ring
|
|
| 28. |
984793
|
[1] |
Plug
|
|
| 29. |
|
|
|
|
| 30. |
22840009
|
[1] |
Oil pressure pipe
|
|
| 31. |
17222136
|
[2] |
Adapter
|
|
| 32. |
22840011
|
[1] |
Oil pressure pipe
|
|
| 33. |
976806
|
[4] |
O-ring
|
|
