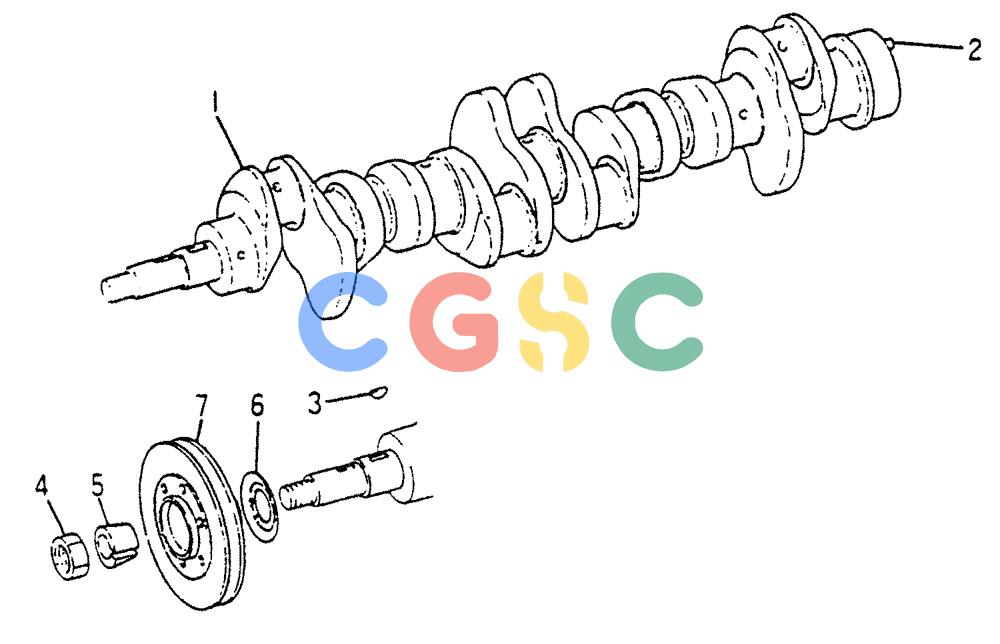

神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-011) - CRANKSHAFT AND PULLEY Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
865 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VAME002051 | [1] | CAMSHAFT | KOBASSY Superseded by part number: VAME999302 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONCRANKSHAFT |
| 2. | VAMF472406 | [1] | PIN | KOBPIN,DOWEL 12 |
| 3. | VAMS476137 | [1] | WOODRUFF KEY | KOBKEY, WOODRUFF 7X22 Superseded by part number: VAF287007022 |
| 4. | VAMH004045 | [1] | NUT | KOBNUT 24 |
| 5. | VA3172013600 | [1] | CONE | KOBCONE |
| 6. | VA3132001101 | [1] | BAFFLE | KOBPLATE, BAFFLE |
| 7. | VAME008087 | [1] | PULLEY | KOBCRANKSHAFT PCD154 |
