卡特零件查询（725C） 368-8592: LINES GP-WATER
广数供应链运营团队, 14 02月, 2025，浏览：
380 次

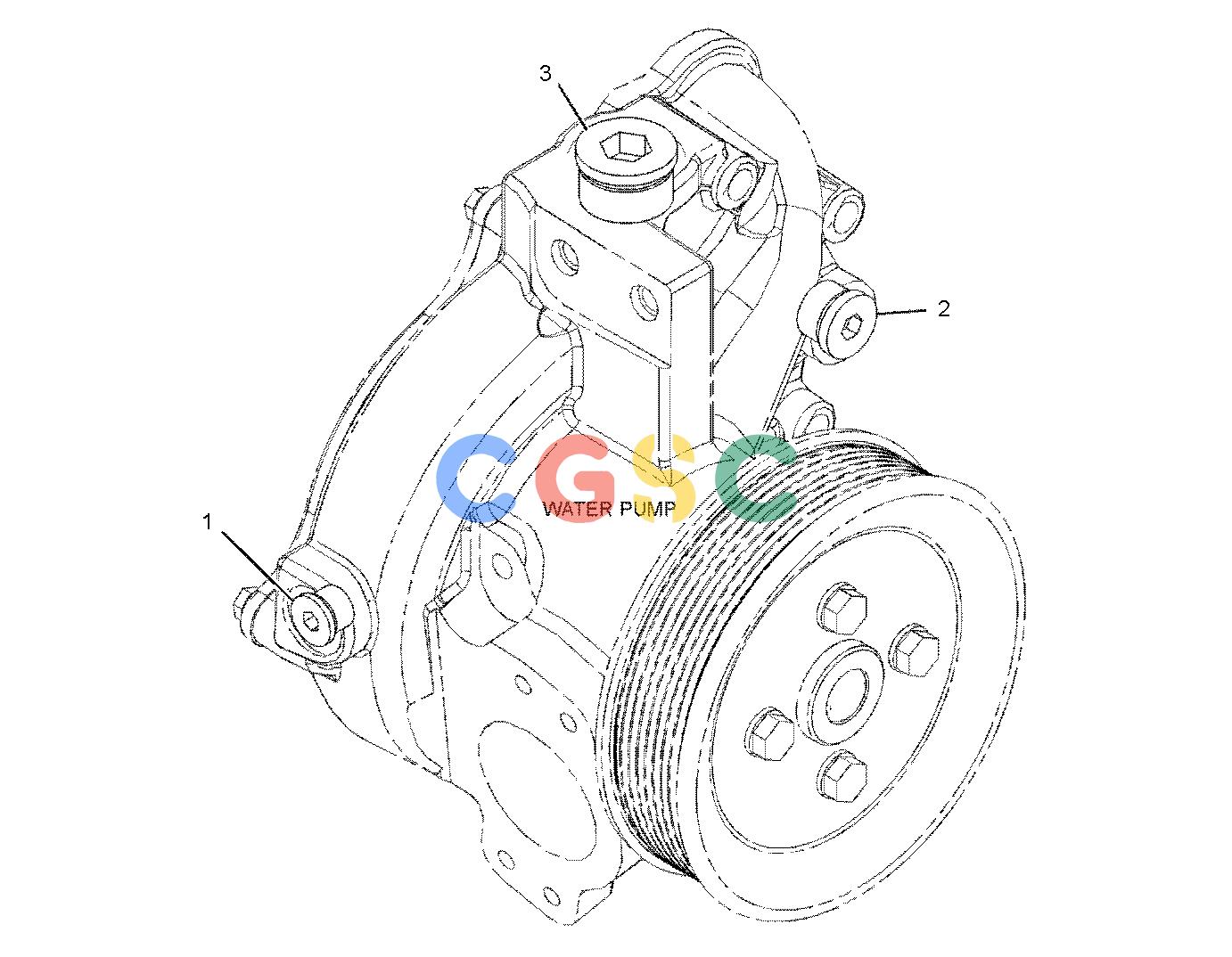

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 180-3907 | [1] | SEAL-INTEGRAL | |
| 2. | 198-3462 | [1] | DIVERTER | |
| 3. | 206-6876 | [1] | CAP-TUBE | |
| 4. | 303-9449M | [1] | STUD(M10X1.5-THD) | |
| 5. | 342-7878 | [1] | MANIFOLD-WATER | |
| 6. | 342-7881 | [1] | TUBE AS-OIL COOLER | |
| 7. | 348-6961 | [2] | ELBOW | |
| 8. | 353-3352 | [1] | TUBE AS | |
| 9. | 353-5124 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| | 6V-3250 | [1] | SEAL-O-RING | |
| 10. | 305-4484 | [4] | SEAL-O-RING | |
| 11. | 353-5126 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 9S-8005 | [1] | PLUG(3/4-16-THD) | |
| | 6V-6609 | [1] | SEAL-O-RING | |
| 12. | 6V-3822M | [5] | BOLT(M10X1.5X35-MM) | |
| 13. | 6V-5219M | [4] | BOLT(M8X1.25X40-MM) | |
| 14. | 6V-5839 | [5] | WASHER(11X21X2.5-MM THK) | |
| 15. | 7C-9560 | [1] | SPACER(10.5X25X51-MM THK) | |
| 16. | 8T-5917 | [2] | SEAL-O-RING | |
| 17. | 9M-1974 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
