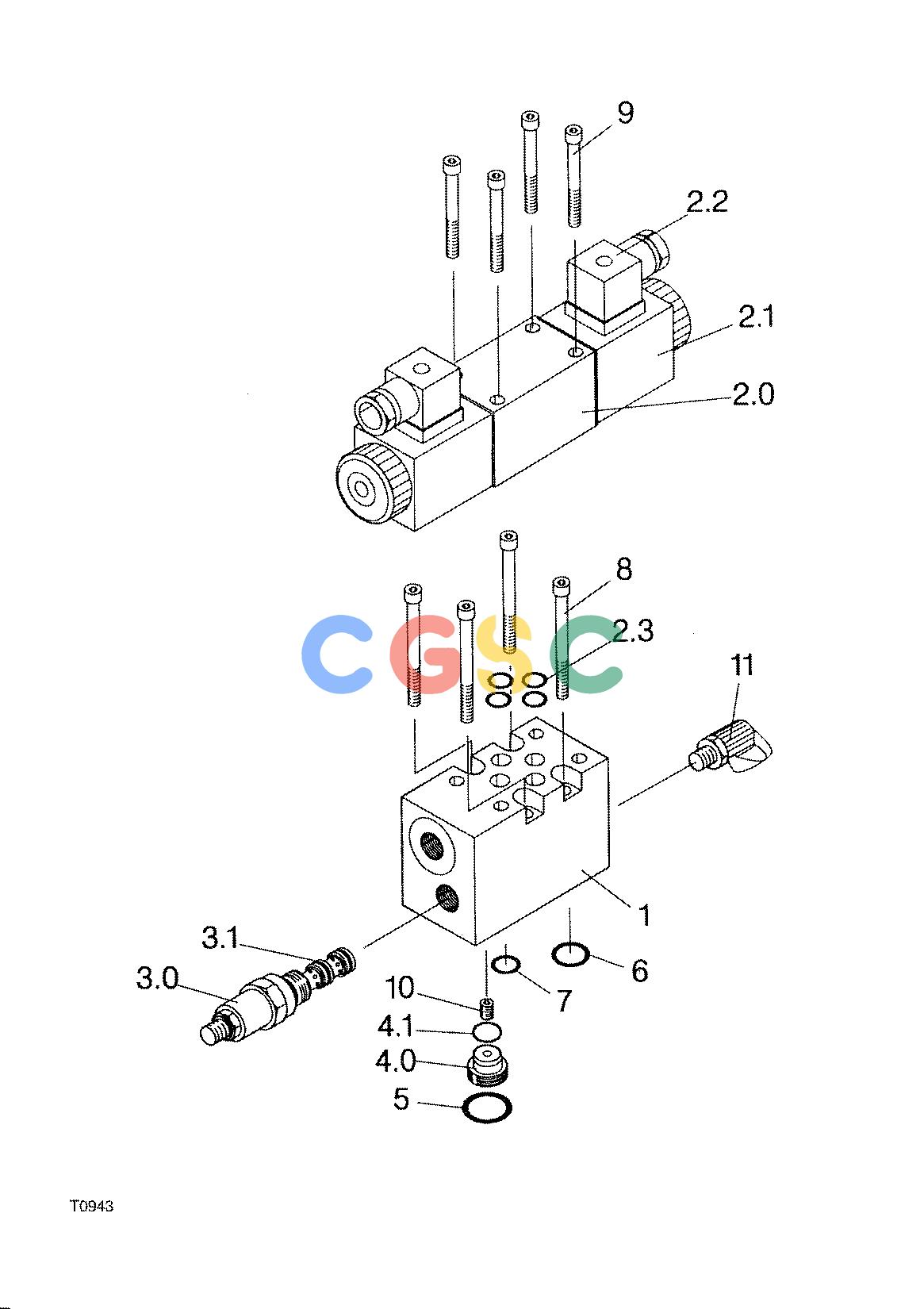

约翰迪尔零件查询745 ATT - ATTACHMENTS ENGINE TILT BLOCK F045006 11 30 T0943 [T0943]EPC John Deere online
广数供应链运营团队, 14 02月, 2025，浏览：
210 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
F047847
|
[1] |
VALVE BLOCK
|
|
| 1. |
F022090
|
[1] |
VALVE BLOCK
|
|
| 2. |
F005212
|
[1] |
Control Valve
|
|
| 2. |
F008453
|
[2] |
Solenoid
|
|
| 2. |
F004578
|
[2] |
Connector
|
|
| 2. |
F008633
|
[1] |
Seal Kit
|
|
| 3. |
F047856
|
[1] |
PRESSURE REDUCING VALVE
|
|
| 3. |
F048971
|
[1] |
Seal Kit
|
|
| 4. |
F023442
|
[1] |
Check Valve
|
|
| 4. |
F021607
|
[1] |
O-Ring
|
|
| 5. |
F018768
|
[1] |
O-Ring
|
|
| 6. |
F018771
|
[1] |
O-Ring
|
|
| 7. |
F003285
|
[1] |
O-Ring
|
|
| 8. |
F018777
|
[4] |
Screw
|
|
| 9. |
F008644
|
[4] |
Screw
|
|
| 10. |
F028825
|
[1] |
THROTTLE SCREW
|
|
| 11. |
F004419
|
[1] |
MEASURING NIPPLE
|
|
