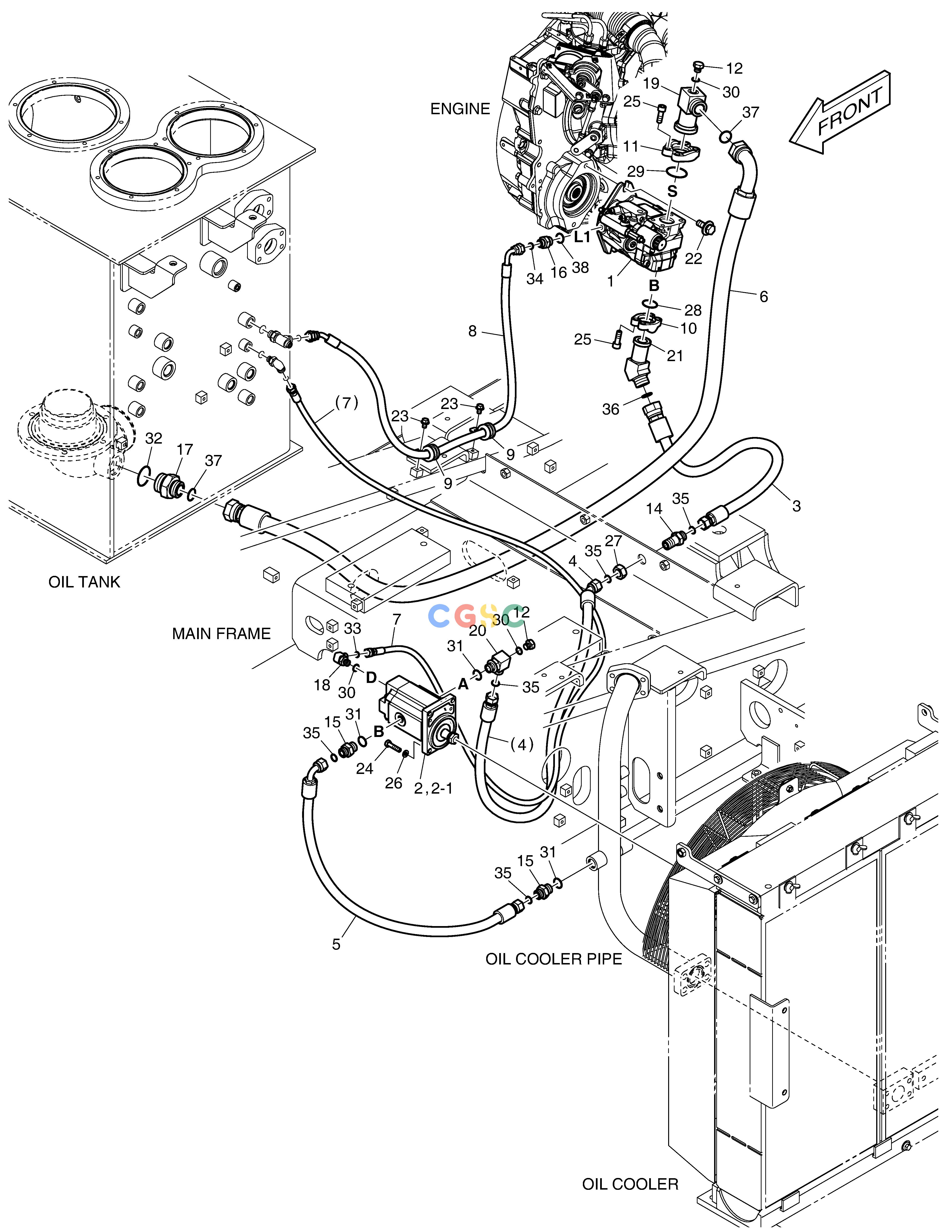

斗山零件查询MAIN PIPING(6) - FAN DRIVE DX340LC-5 / DX350LC-5(S/N:10001~10049) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
394 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-07987
|
[-] |
|
|
| 1. |
400911-00103
|
[1] |
|
|
| 10. |
2181-9079
|
[2] |
FLANGE
|
|
| 11. |
4215-1003D4
|
[2] |
FLANGE
|
|
| 12. |
2181-1950D1
|
[2] |
PLUG
|
|
| 14. |
181-00128D3
|
[1] |
ADAPTER
|
|
| 15. |
2181-4133D3
|
[2] |
ADAPTER
|
|
| 16. |
2181-4133D33
|
[1] |
ADAPTER
|
|
| 17. |
2181-4133D36
|
[1] |
ADAPTER
|
|
| 18. |
2181-2815D4
|
[1] |
ELBOW
|
|
| 19. |
430213-00209
|
[1] |
|
|
| 2. |
K1057295
|
[1] |
|
|
| 2-1. |
401107-01051
|
[1] |
|
|
| 20. |
DS2517001
|
[1] |
|
|
| 21. |
DS2514001
|
[1] |
|
|
| 22. |
DS0025020
|
[2] |
BOLT
|
|
| 23. |
K1001029
|
[2] |
BOLT
|
|
| 24. |
S0509366
|
[4] |
BOLT
|
|
| 25. |
S2212266
|
[8] |
BOLT
|
|
| 26. |
S5102503
|
[4] |
. WASHER
|
|
| 27. |
121-00010D5
|
[1] |
NUT
|
|
| 28. |
2180-1026D2
|
[1] |
O-RING
|
|
| 29. |
2180-1026D23
|
[1] |
O-RING
|
|
| 3. |
DS20111642
|
[1] |
|
|
| 30. |
S8000111
|
[3] |
O-RING
|
|
| 31. |
S8000181
|
[3] |
O-RING
|
|
| 32. |
S8000381
|
[1] |
O-RING
|
|
| 33. |
S8030041
|
[1] |
O-RING
|
|
| 34. |
S8030061
|
[1] |
O-RING
|
|
| 35. |
S8030081
|
[5] |
O-RING
|
|
| 36. |
S8030121
|
[1] |
O-RING
|
|
| 37. |
S8030161
|
[2] |
O-RING
|
|
| 38. |
S8040081
|
[1] |
O-RING
|
|
| 4. |
DS2012907
|
[1] |
|
|
| 5. |
DS20132476
|
[1] |
|
|
| 6. |
DS20132295
|
[1] |
|
|
| 7. |
DS2119235
|
[1] |
|
|
| 8. |
DS2122093
|
[1] |
|
|
| 9. |
124-00208D3
|
[2] |
CLIP
|
|
