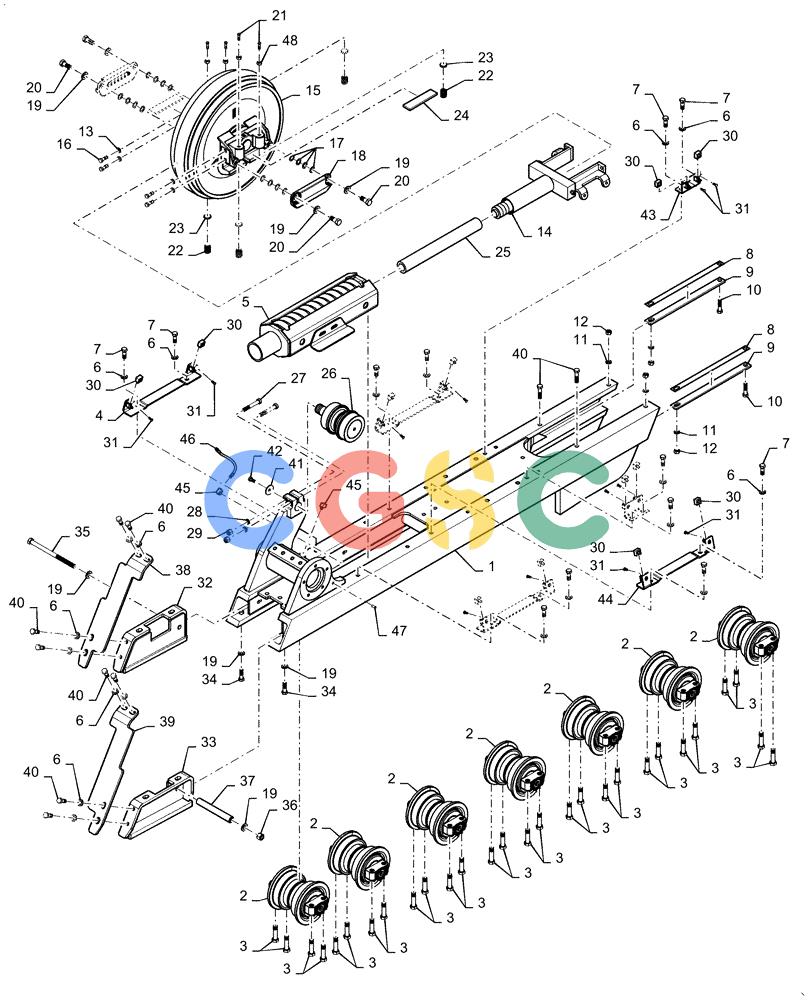

| 1. | 47462147 | [1] | FRAME | BURRight Hand Final Track |
| 1. | 47462149 | [1] | FRAME | BUR |
| 2. | 9628503 | [4] | NUT,3/8"-16, G5 | NH |
| 3. | 409-91248 | [28] | BOLT,Hex, 3/4" - 10 x 3", Gr 5 | BRR |
| 4. | 84598658 | [2] | BRACKET | BURRecoil Housing Superseded by part number: 87309203 |
| 5. | 84597690 | [1] | HOUSING | BURFinal Recoil |
| 6. | 87655044 | [20] | SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM | BUR |
| 7. | 413-1028 | [12] | BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5 | CAS Superseded by part number: 9627896 |
| 8. | 87456084 | [6] | SHIM | BUR |
| 9. | 87456085 | [2] | BAR | BUR |
| 10. | 413-1040 | [4] | BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5 | CAS Superseded by part number: 280233 |
| 11. | 492-11062 | [4] | BEARING WASHER,5/8" | CAS Superseded by part number: 86729275 |
| 12. | 425-1010 | [4] | NUT,5/8"-11, G5 | CAS Superseded by part number: 280374 |
| 13. | 87655043 | [4] | WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM | BUR |
| 14. | 87309195 | [1] | YOKE | BUR |
| 15. | 84388196 | [1] | IDLER WHEEL | BHB Superseded by part number: 366245A1 |
| 16. | 410-9824 | [4] | BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8 | BRR |
| 17. | D35268 | [20] | SHIM,1/32" Thk | CAS |
| 18. | 87649097 | [2] | COVER PLATE | BUR Superseded by part number: R56668 |
| 19. | 87655047 | [10] | SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm, HTS, BORON | BUR |
| 20. | 413-1228 | [4] | BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5 | CAS Superseded by part number: 88725 |
| 21. | 84193280 | [4] | BOLT | GFD Superseded by part number: 113-235 |
| 22. | R33245 | [4] | SPRING SEAT | CASBoss |
| 23. | 188866A1 | [4] | SHOCK ABSORBER | CASSpring Idler Support |
| 24. | R58620 | [2] | LARGE PLATE | CASIdler Wear Bar |
| 25. | 84382990 | [1] | TUBE | BURTrack, Spacer |
| 26. | 84387912 | [1] | TRACK ROLLER,150mm OD x 162mm W | BHBCarrier |
| 27. | 426-1064 | [2] | BOLT,Hex, 5/8" - 11 x 4", Gr 8 | CAS Superseded by part number: 9804395 |
| 28. | 496-81004 | [2] | WASHER,41/64" x 1.047" x .134", HDN | CAS Superseded by part number: 87023159 |
| 29. | 232-41410 | [2] | LOCK NUT,5/8"-11, GC | CAS Superseded by part number: 85700693 |
| 30. | 224-28010 | [12] | SQUARE NUT,Sq, 5/8"-11, G2, Hvy | CAS |
| 31. | 336371A1 | [12] | PIN | CAS |
| 32. | 84383268 | [1] | GUIDE | BURLeft Hand Rear Track |
| 33. | 84383269 | [1] | GUIDE | BURRight Hand Rear Track |
| 34. | 88557 | [4] | BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd | BEL |
| 35. | 280434 | [1] | BOLT,Hex, 3/4" - 10 x 11 1/2", Gr 5 | GI |
| 36. | 231-41112 | [1] | LOCK NUT,3/4"-10, GB | CAS |
| 37. | R27555 | [1] | SPACER | CASRockguard |
| 38. | 84383855 | [1] | COVER | BURLeft Hand Sprocket Guard |
| 39. | 84383858 | [1] | COVER | BURRight Hand Sprocket Guard |
| 40. | 86622997 | [8] | BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5, Full Thd | FOR |
| 41. | 495-91167 | [1] | WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk | CAS |
| 42. | 413-816 | [1] | BOLT,Hex, 1/2" - 13 x 1", Gr 5 | CAS Superseded by part number: 87909 |
| 43. | 84409423 | [2] | BRACKET | BURFront Cover |
| 44. | 84409548 | [2] | BRACKET | BURRecoil Cover |
| 45. | 217-1014 | [2] | ELBOW,90º, 1/8"-27 Female x 1/8"-27 Male | CAS Superseded by part number: 217-20 |
| 46. | 84563169 | [1] | HOSE ASSY.,6.35mm ID x 290mm L, SAE 100R7 | BURPivot Shaft Grease |
| 47. | 217-429 | [1] | PLUG,Hex Soc, 1/8"-27 NPTF | CAS Superseded by part number: 86637724 |
