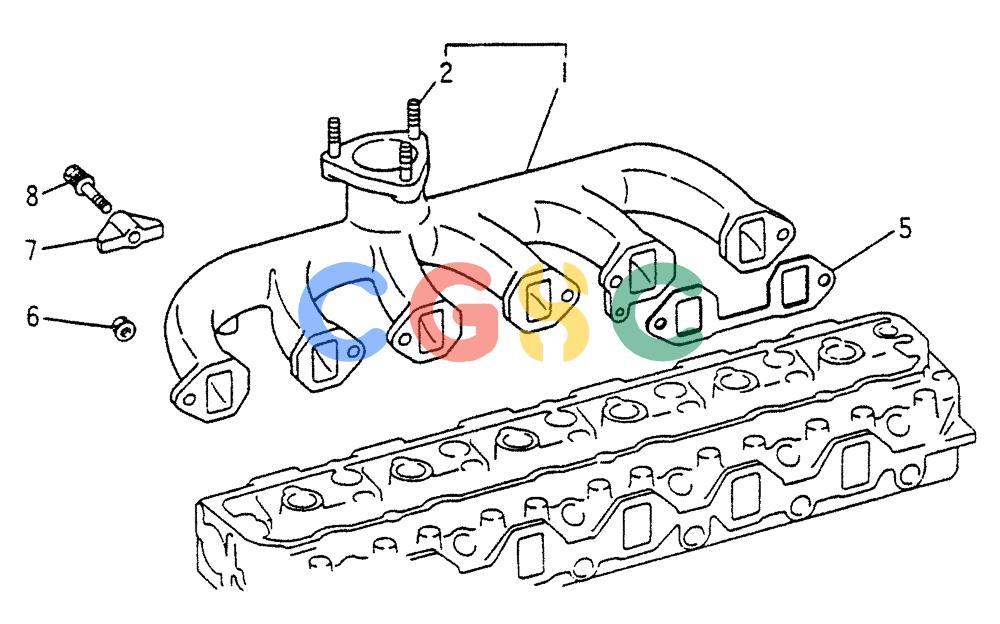

神钢零件查询(6DR5) - MITSUBISHI DIESEL ENGINE (1/06-12/06) (01-018) - EXHAUST MANIFOLD Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
905 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VAME008746 | [1] | MANIFOLD ASSY, EXH. | MANIFOLD ASSY, EXH. |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONMANIFOLD, EXHAUST |
| 2. | VAME039337 | [3] | STUD 8X25 8X25 | STUD 8X25 8X25 |
| 5. | VA3133200500 | [3] | GASKET | KOBGASKET, EXH MANIF Superseded by part number: VAME001418 |
| 6. | VAMH004054 | [6] | NUT | KOBFLANGE 10 Superseded by part number: 134868A1 |
| 7. | VAME029089 | [3] | BRIDGE | KOB |
| 8. | VAMH000245 | [3] | BOLT | KOBBOLT, W/WSR 10X58 |
